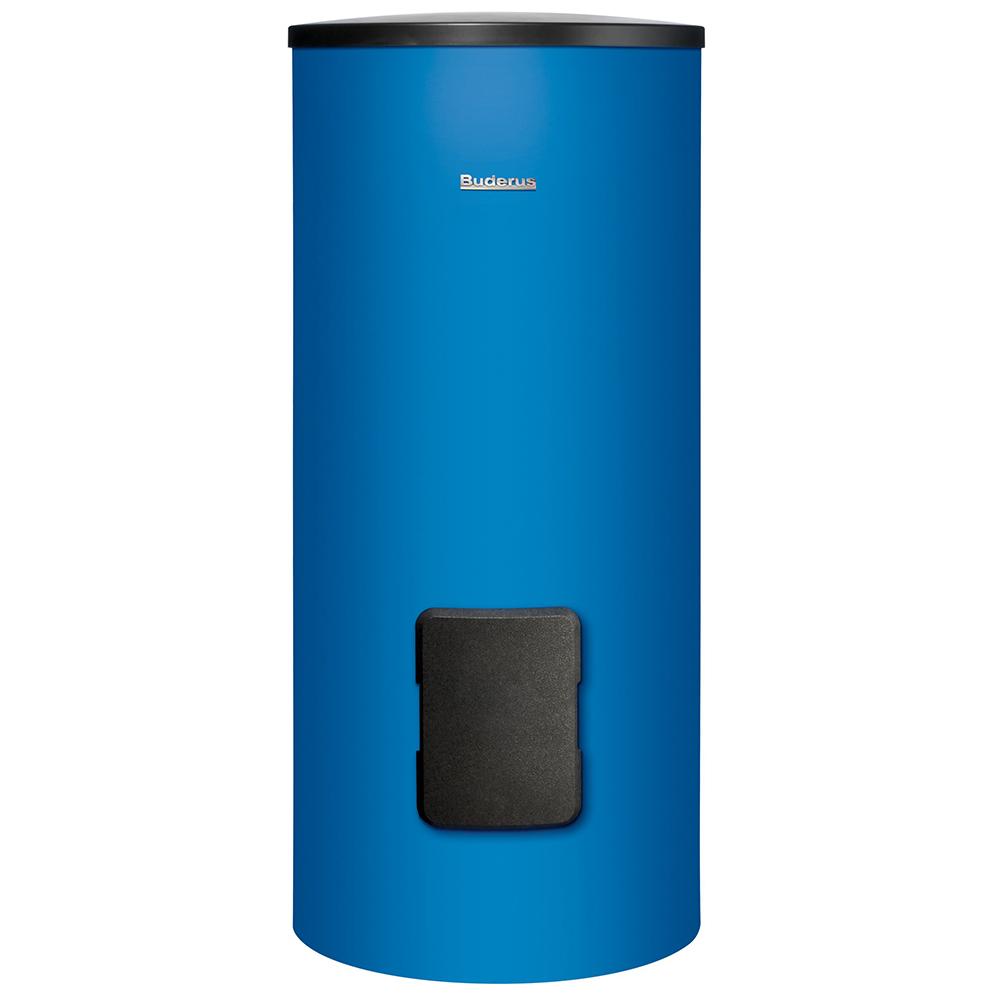

SM100 Dual-coil Indirect Hot Water Heater, 96.9 Gal
Click Image for Gallery
Buderus SM100 is a vertical, dual-coil indirect hot water tank with 96.9-gallon DHW capacity. It features Thermoglaze ceramic coating (on both tank and coil), (2) magnesium anode rods for superior corrosion protection and large front clean-out for easy access and maintenance. Dual-coil design allows to use two heat sources (i.e. boiler and solar).
Technical Specifications:
Technical Specifications:
- Domestic Water Capacity (Gallons): 96.9
- Heat Exchanger Type: Dual Coil
- Domestic Hot Water (DHW) Connection: 1" NPT
- Domestic Cold Water Connection: 1" NPT
- Boiler (Heat Exchanger Coil) Connections: 1" NPT
- Hot Water Recirculation Connection: 3/4" NPT
- Max DHW Temperature: 203°F
- Max DHW Operating Pressure: 150 psi
- Max Boiler Water Temperature: 230°F
- Max Boiler/Heat Exchanger Coil Side Pressure (psi): 232
- Stand-by Heat Loss (°F/hr): 0.5
- Continuous Domestic Hot Water Flow (77°F Rise, 180°F Boiler Temp.) (Gallons/hr): 265.0 - Lower Coil
- 153.0 - Upper Coil
- 376.0 - Dual Coil
- 344.0 - Dual Coil (Parallel)
- 1st Hour Rating (77°F Rise, 180°F Boiler Temp.) (Gallons/hr): 365.0 - Lower Coil
- 153.0 - Upper Coil
- 462.0 - Dual Coil
- 434.0 - Dual Coil (Parallel)
- Min. Boiler Output (BTU): 169.1 - Lower Coil
- 87.9 - Upper Coil
- 235.4 - Dual Coil
- 202.9 - Dual Coil (Parallel)
- Min. Boiler Water Flow Rate (GPM): 14.0
- Dimensions (Diameter x Height): 36-3/8" x 72-1/4"
- Empty Weight (lbs): 298.
- Views: 1194
-
- Model: SM100
- MPN: 8718541322
- Availability: 2 - 3 Days
- Usually ships: Upon availability
- $ 4 158.75
