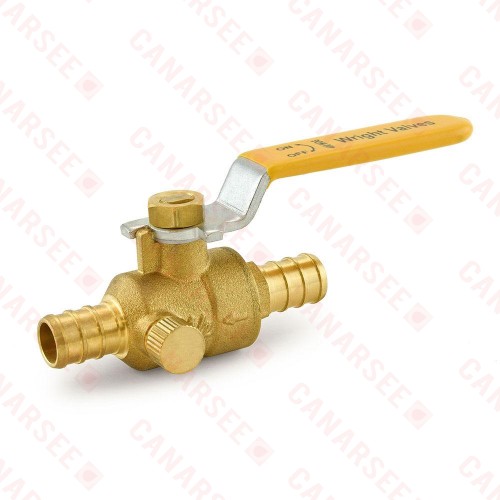

1/2” PEX Brass Ball Valve w/ Waste Outlet, Full Port

Click Image for Gallery

The VPP012-D is a 1/2” PEX Brass Ball Valve w/ Waste Outlet, Full Port. PEX Tubing can be connected to the valve using either crimp or clamp (cinch) connection methods.

This product does not meet the new low-lead criteria defined in Safe Drinking Water Act and cannot be used for potable water applications, including for drinking and cooking. This product can be used for non-potable water applications only.

Technical Specifications:

Inlet/Outlet Connections: 1/2" PEX, crimp style (ASTM F1807)
Non-shock WOG: 400psi
Standard Working Pressure: 150psi
Maximum Operating Temperature: 200F
Valve Body Material: Brass
Seats: Teflon
Handle Type: 1/4 - turn, Stainless Steel.

Product Specs
Handle Type:	1/4 - turn, Stainless Steel.
Inlet/Outlet Connections:	1/2" PEX, crimp style (ASTM F1807)
Maximum Operating Temperature:	200F
Non-shock WOG:	400psi
Seats:	Teflon
Standard Working Pressure:	150psi
Type:	PEX x PEX
Valve Body Material:	Brass

Views: 13456
Model: VPP012-D
MPN: VPP012-D
Availability: In Stock
Usually ships: within 1 business day(s)
