1/8" FIP x MIP Threaded Brass Ball Valve, Full Port

Click Image for Gallery

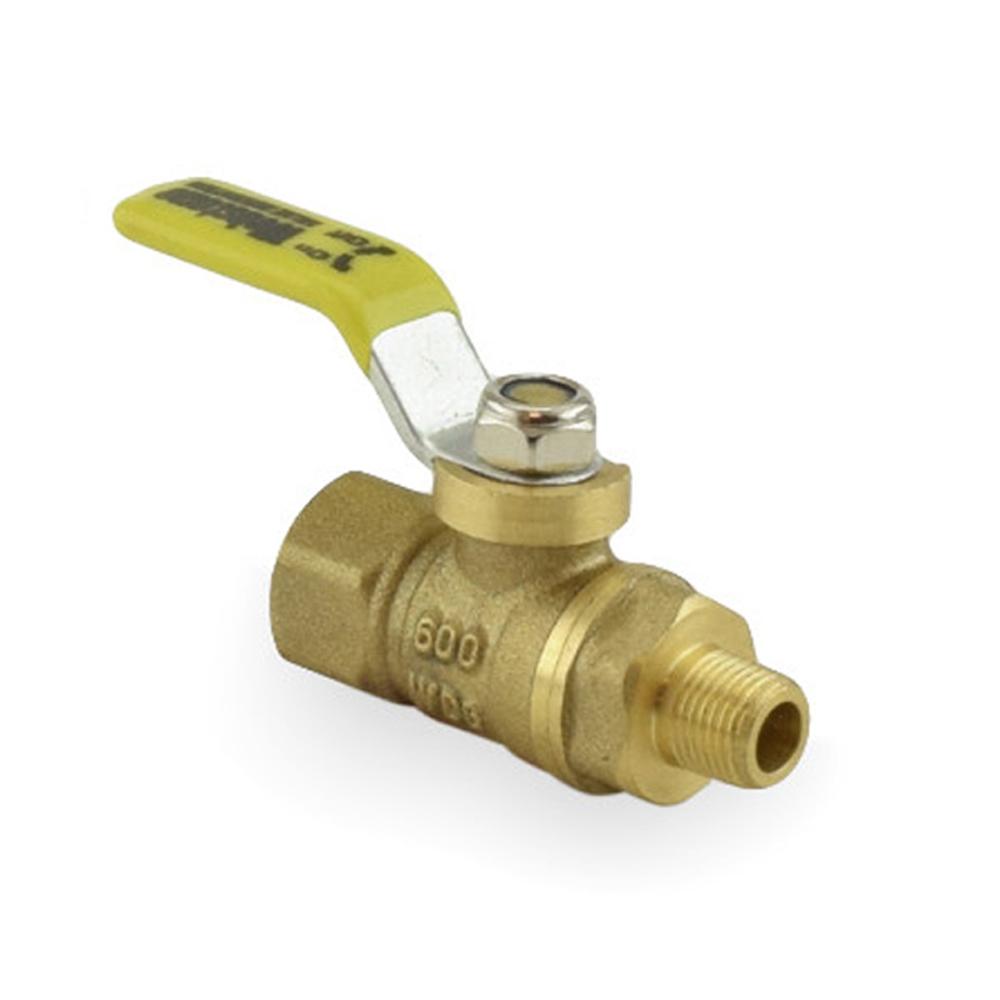

The 41685 from Webstone Valves is a 1/8” FIP x MIP Threaded Brass Ball Valve, Full Port.

Technical Specifications:

System connections: 1/8" Female Threaded x 1/8" Male Threaded (FNPT x MNPT or FIP x MIP);
Pressure/temperature ratings: 600 psi @ 100F, 490 psi @ 150F, 470 psi @ 200F, 439 psi @ 250F, 411 psi @ 300F, 294 psi @ 350F;
600 WOG, 125 WSP;
Valve length (w/ out handle): 1-13/16".
