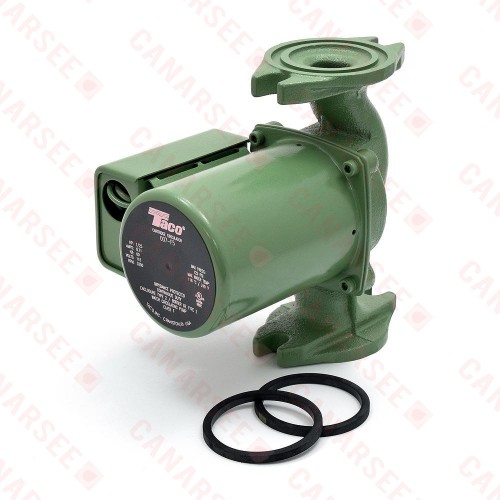

Taco 007-F5 Circulator Pump, 1/25 HP, 115V

Taco 007-F5 Circulator Pump, 1/25 HP, 115V

The Taco 007-F5 circulator pump is ideal for a variety of applications requiring efficient maintenance free liquid circulation. Its simple structure features a cartridge style design, meaning that a pump cartridge is attached to the body, allowing for easy access and replacement. It is self-lubricating, and so can pretty much maintain itself. Its single stage structure means that less space is taken up, and overall the design is quiet and will not incommode a home or office. It features a wide utility, being found operating in hydronic heating, or radiant heating (for example hot water circulation for floor heating, or drive way snow melting), hydro-air fan coils (fanning air through circulating water), chilled fresh water, and generally for systems for domestic water recirculation .

The Taco 007-F5 is comparable or even more efficient than the usual and popular types of circulating pumps, i.e.: the Grundfos UPS15-58FC spd 2, or UP15-42F/R; the B&G NRF-22. As a bonus, the pump comes along with a 3-year warranty from the manufacturer.


  • Hydronic Heating/Cooling
  • Radiant Heating
  • Zoning with Pumps
  • Hydro-Air Fan Coils

Construction Materials:

  • Cast Iron Casing
  • Steel Stator Housing
  • Stainless Steel Cartridge
  • Non-Metallic Impeller
  • Ceramic Shaft
  • Carbon Bearings
  • EPDM O-Ring & Gaskets
Product Specs
Amperage: 0.71
Application Zoning
Connection Size: 1-1/2"
Connection Type Flanged
Flow Range (GPM): 0-23
Head Range (ft.): 0-10
Hertz: 60
Horse Power: 1/25
Material1 Cast Iron
Max Flow (GPM): 23
Max Head (Ft): 10
Max Pressure (PSI): 125
Phase: 1
Replaces: 007-F3
RPM: 3250
Temperature Range (F): 40°-240°F
Type1 Pump
Voltage 115v
Warranty: 3-Year Warranty

Write a review

Please login or register to review
  • Views: 10046
  • Taco 007-F5 Circulator Pump, 1/25 HP, 115V QR Code
  • Model: 007-F5
  • MPN: 007-F5
  • Availability: 102
  • $ 126.95


Have any questions?
Contact us at 1-800-246-9552

Tags: 007-F5, Taco 007-F5, PUMP
