Grundfos 59896343 3-Speed Circulator Pump w/ IFC, 1/25HP, 115V

Grundfos 59896343 3-Speed Circulator Pump w/ IFC, 1/25HP, 115V

Grundfos 59896343 3-Speed Circulator Pump w/ IFC, 1/25HP, 115V QR Code
QR-Code
Product Code: 59896343 UPC: 632514101005

Availability: In Stock

Weight:7.00 lb

Dimensions (L x W x H ): 8.00 x 6.00 x 7.00

Usually ships: 1 business days
$90.95
4 or more $88.95
Qty: Add to Cart

Have any questions?
Contact us at 1-800-246-9552

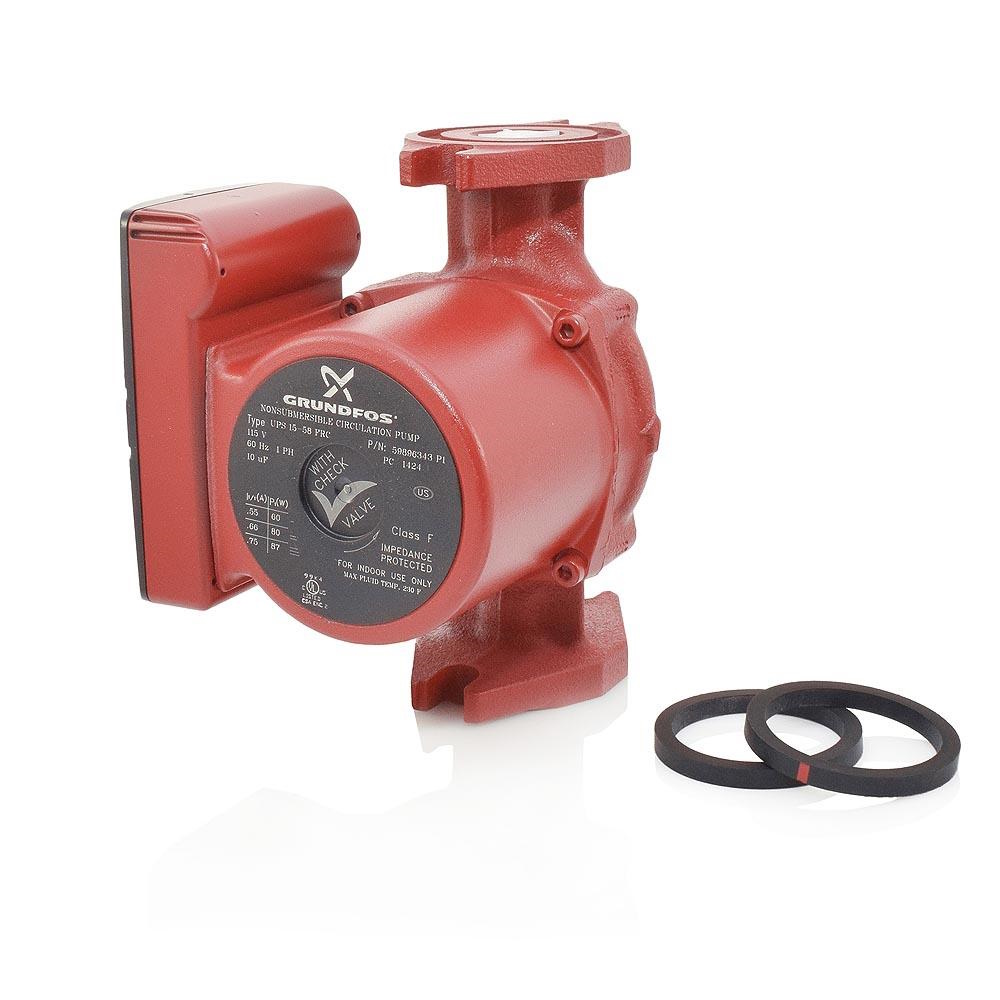

Grundfos UPS15-58FRC circulator pump (Grundfos# 59896343)

incorporates a rotated flange design, cast iron housing, three speed motor (Low/Med/High) and a built-in, removable check valve. Grundfos UPS15-58FRC is a popular modification of the UPS15-58FC and it's performance parameters cover nearly all traditional heating applications - from radiant and baseboards, to fan coils and zoning and many others. 3 speeds of the pumps allow to set up the circulator pump in a way, that matches the system's requirements, while wet rotor design allows it to be virtually silent while operating.



Grundfos UPS15-58FRC Features:

  • Built-in motor protection for longer life and better performance.
  • Suitable for a wide range of applications, including radiant heating, hydronic heating, fan coil heating, solar and other system types.
  • Whisper-quiet operation for sound sensitive installations.
  • Includes (2) Gaskets (O-rings).
  • UL/CSA listed.



Applications:

  • Closed loop radiant heating & snow melting systems.
  • Baseboard/Radiator/Fan coil heating and other hydronic heating applications.



Technical Specifications of Grundfos UPS15-58FRC:

  • Voltage: 115V;
  • Amperage at Speed 1: 0.55 Amps;
  • Amperage at Speed 2: 0.66 Amps;
  • Amperage at Speed 3: 0.75 Amps;
  • Hertz: 60 Hz;
  • Phase: 1;
  • Watts at Speed 1: 60W;
  • Watts at Speed 2: 80W;
  • Watts at Speed 3: 87W;
  • Max Pressure: 145 psi;
  • Max Temperature: 230F;
  • Min Temperature: 36F;
  • Flow Range: 0-17 GPM;
  • Head Range: 0-19.5 ft;
  • Horse Power: 1/25HP;
  • Body: Cast Iron
  • Connections: Flanged 1/2", 3/4", 1”, 1-1/4”.



Warranty:

3 years manufacturer's warranty.



Product Specs
Amperage:0.55-0.75
Application:Zoning
Connection Size:1-1/4"
Connection Type:Flanged
Features:Integral Check Valve
Flow Range (GPM):0-17
Head Range (ft.):0-19.5
Hertz:60
Horse Power:1/25
Material:Cast Iron
Max Flow (GPM):17
Max Head (Ft):19.5
Max Pressure (PSI):145
Phase:1
RPM:2450
Temperature Range (F):36°-230°F
Type:3-Speed Pump
Voltage:115v
