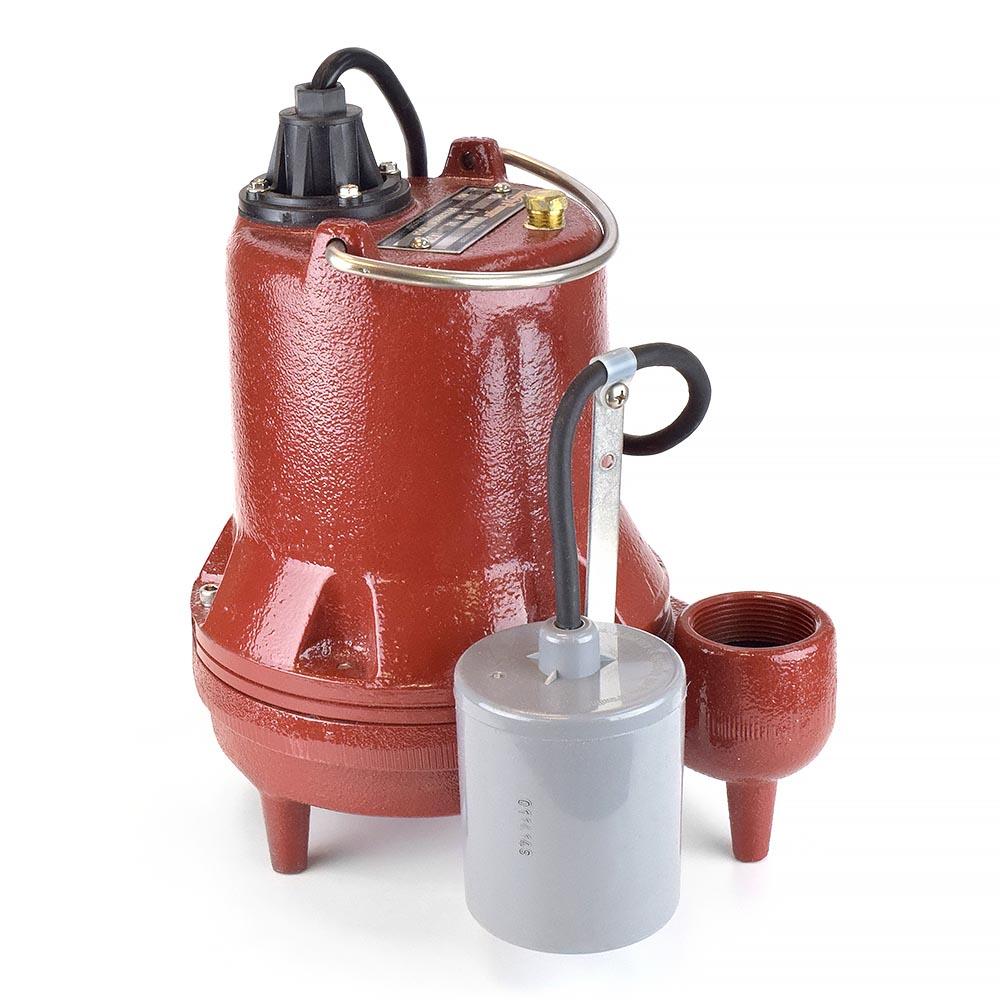

Automatic Effluent Pump w/ Wide Angle Float Switch, 1/3HP, 25' cord, 208/240V
The FL32A-2 from Liberty Pumps is an Automatic Effluent Pump w/ Wide Angle Float Switch, 1/3HP, 25' cord, 208/240V. The Liberty FL32A-2 submersible effluent sump pump has a discharge of 1-1/2" NPT. It also has a turn-on level of 12" and shut-off level of 5". This submersible effluent/sump pump has a motor that is enclosed in a cast-iron housing and a 25' power cord. The Liberty Pump FL32A-2 features vortex style impeller made of high temperature engineering polymer, which allows for 3/4" solids handling..
The minimum pit diameter on this sump/effluent pump is 14" in sump conditions and 18" in effluent conditions. This sump/effluent pump can handle liquids up 140F and has a 19' shut off head The Liberty FL32A-2 was specifically designed for STEP Systems, LPP Systems, Mound Systems, Liquid Waste Transfer and Commercial Sump Applications. This pump should not be run dry.
Features:
- Vortex impeller, made of high temperature engineering polymer, permits passage of solids without clogging;
- 416 stainless steel rotor shaft;
- Oil-filled, thermally protected motor;
- Unitized shaft seal;
- 1-1/2" FNPT discharge;
- Quick-disconnect 25' standard power;
Technical Specifications:
- Horsepower: 1/3 HP;
- Cord length: 25';
- Discharge: 1-1/2" FNPT;
- Solids Handling: up to 3/4";
- Shut-off Head: 19';
- Voltage: 208-230V;
- Amps: 6.6;
- Hertz: 60 Hz;
- Phase: 1;
- Maximum fluid temperature: 140°F;
- Height: 9.6";
- Width: 9.8";
- Weight: 32 lbs.;
- Minimum pit/basin diameter: 14" in Sump and 18" in Effluent applications;
- Minimum pit/basin depth: 18" in Sump and 24" in Effluent applications;
| Product Specs | |
| Cord Length: | 25' |
| Flow at 5 FT Head: | 53 GPM |
| Horse Power | 1/3 |
| Shutoff Head (ft.): | 19' |
| Type: | Automatic |
| Voltage | 208v |
