Little Giant VCMX-20ULST Automatic Condensate Removal Pump w/ Safety Switch, Tubing, 6' Cord, 1/30HP, 115V

Little Giant VCMX-20ULST Automatic Condensate Removal Pump w/ Safety Switch, Tubing, 6' Cord, 1/30HP, 115V

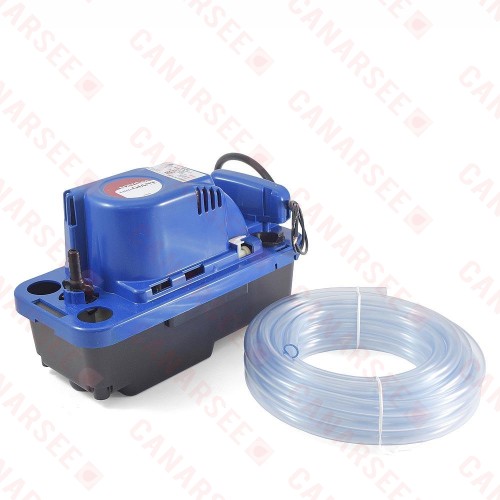

The 554550 from Little Giant is an Automatic Condensate Pump w/ Safety Switch, Tubing and 6' cord, 1/30HP, 115V. This Little Giant Condensate Removal Pump has 6ft power cord, 1/2 gal. Oil Resistant Tank, multiple steel mounting bracket for use on either side of the tank, and slimmer footprint size for flexibility in tight spaces. Also the Little Giant VCMX-20ULST features 3/8" 1/4-Turn Check Valve, that allows servicing without removal of tubing, eliminating water spills. Oil-resistant tank and check valve eliminate the problem of cracked tanks with exposure to oil.

Little Giant condensate pumps VCMX (X Next Generation) offer greater head capacities than the VCMA Series. Patent-pending cooling design increases pump life.


Head (ft) Flow (GPH) Head (m) Flow (LPH)
1 84 0.3 318.0
5 75 1.5 283.9
10 60 3.0 227.1
15 42 4.6 159.0
20 10 6.1 37.9


Features:
  • Slimmer Footprint (4.8" x 10.2" x 6.5" size);
  • 1/4-Turn Check Valve;
  • Multiple Brackets;
  • Thermal overload protection;
  • External Overflow Safety Switch
  • Rubber feet absorb vibration on hard surface installations;
  • External Test/Run Lever for quick and easy drainage of tank for servicing;
  • cCSAus listed;


Technical Specifications:
  • Model Number: VCMX-20ULST;
  • Horsepower: 1/30HP;
  • Tank: Medium;
  • Flow: 84 GPH @ 1';
  • Cord Length: 6';
  • Shut Off: 21';
  • Voltage: 115V;
  • Check Valve: 3/8", 1/4-Turn;
  • Hertz: 60Hz;
  • Amps: 1.5A;
  • Watts: 93W;
  • Weight: 6 lbs;
  • Height: 6.5";
  • Width: 4.8";
  • Length: 10.2";


Warranty:
  • 2 years from the date of installation.
Product Specs
Flow at 1 FT Head: 84 GPH
Horse Power: 1/30
Includes: Safety Switch
Shutoff Head (ft.): 21
Voltage 115v
