Liberty Pumps LE41A 4/10 HP Automatic Sewage Pump w/ Piggyback Wide Angle Float Switch, 110V ~ 120V, 10" cord

-15% Liberty Pumps LE41A 4/10 HP Automatic Sewage Pump w/ Piggyback Wide Angle Float Switch, 110V ~ 120V, 10" cord

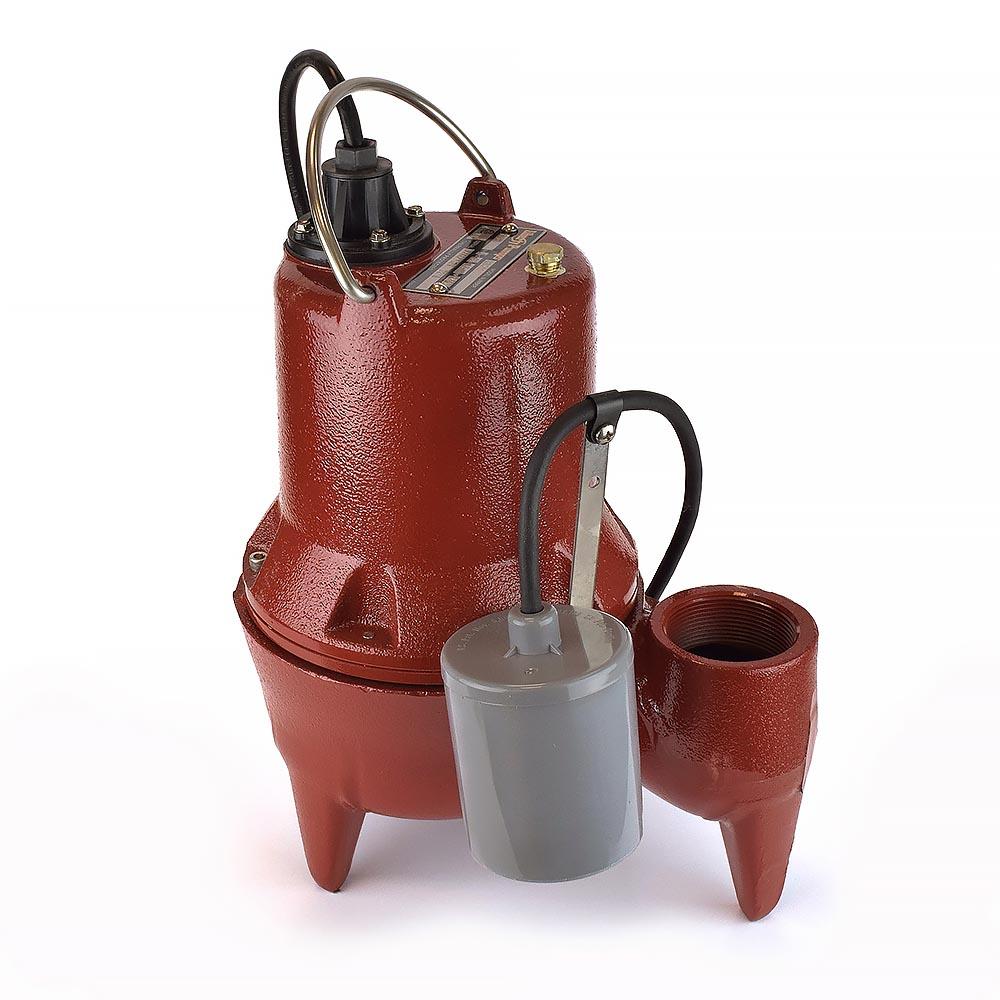

The Liberty Pump LE41A is an automatic submersible sewage pump with a 4/10, 115V motor and a 10' quick-disconnect power cord. This Liberty sewage pump is equipped with an adjustable wide-angle switch that has a series (piggyback) plug for manual bypass operation. In the event of switch failure, the submersible sewage pump cord can be separated and plugged into the electrical outlet, directly bypassing the switch. The turn-on level for this submersible sewage pump is approximately 12" to 16" above the bottom of the basin. The turn off level is approximately 6" above the bottom of the basin.



The Liberty Pump LE41A has a shut-off head of 19' and a discharge of 2" FNPT. It can handle solids up to 2" and temperatures up 140F. The Liberty sewage pump motor is oil filled and thermally protected. The rotor shaft is made of 416-stainless steel and is supported by lower and upper ball bearings.


Features:

  • Heavy cast iron construction;
  • Oil filled, thermally protected motor;
  • Permanently lubricated ball bearings;
  • Corrosion resistant, vortex style impeller made of high temperature engineering polymer;
  • All stainless steel fasteners and rotor shaft;
  • Quick-disconnect 10' standard power cord allows replacement of cord in seconds without breaking seals to motor;

Technical Specifications:

  • Horsepower: 4/10HP;
  • Cord length: 10';
  • Discharge: 2" FNPT;
  • Solids Handling: up to 2";
  • Shut-off Head: 19';
  • Voltage: 115V;
  • Amps: 12;
  • Hertz: 60 Hz;
  • Phase: 1;
  • Maximum fluid temperature: 140°F;
  • Height: 14";
  • Width: 10.75";
  • Weight: 40 lbs.;
  • Minimum basin diameter: 18";
  • Minimum basin depth: 24";
Product Specs
Cord Length: 10'
Discharge: 2" FNPT
Flow at 5 FT Head: 122 GPM
Horse Power 4/10
Shutoff Head (ft.): 19'
Type: Automatic
Voltage 115v
