Taco 006-ST4 Stainless Steel Circulator Pump,3/4' NPT, 1/40 HP, 115V

Taco 006-ST4 Stainless Steel Circulator Pump,3/4' NPT, 1/40 HP, 115V

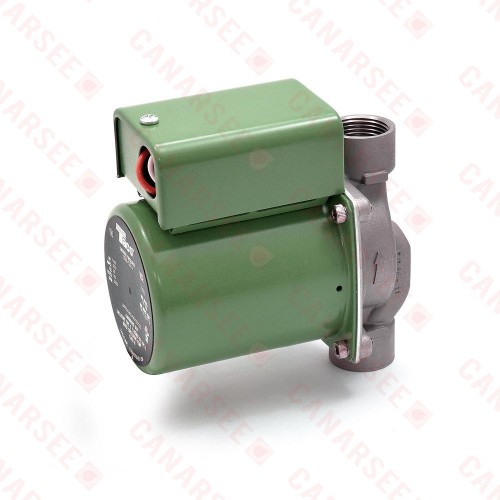

The 006-ST4 from Taco is a Stainless Steel Circulator Pump. 3/4” NPT, 1/40HP, 115V. It's designed for circulating hot or chilled fresh water in open or closed loop applications. Common uses include hydronic heating, chilled water cooling, and domestic hot water systems, hydro-air heating/cooling, heat recovery units, water source heat pumps, drain down open loop solar systems and potable water applications.
Stainless Steel Taco 006-ST4 Circulator Pump features a unique replaceable cartridge which allows for easy service, instead of replacing the entire circulator. Taco 006-ST4 Circulator pump is compact, direct-drive, features low power consumption and is ideal for high-efficiency jobs.

Taco 006-ST4 replaces 006-BT4 model.


Applications:

  • Domestic Hot Water Recirculation;
  • Hydronic Heating / Cooling;
  • Radiant Heating;
  • Heat Recovery Units,
  • Solar;
  • And many others;


Electrical Data:

  • Voltage: 115V;
  • Hertz: 60Hz;
  • Phase: 1;
  • Amps: 0.52 Amps;
  • HP: 1/40HP;


Technical Specifications:

  • Flow Range: 0 – 10 GPM;
  • Head Range: 0 – 9 Feet;
  • Minimum Fluid Temperature: 40˚F (4˚C);
  • Maximum Fluid Temperature: 220°F (104˚C);
  • Maximum Working Pressure: 125 psi;
  • Connection Sizes: 3/4 NPT threaded.
Product Specs
Amperage: 0.52
Application Heating
Connection Size: 3/4"
Connection Type Threaded
Flow Range (GPM): 0-10
Head Range (ft.): 0-9
Hertz: 60
Horse Power: 1/40
Material1 Stainless Steel
Max Flow (GPM): 10
Max Head (Ft): 9
Max Pressure (PSI): 125
Phase: 1
Replaces: 006-BT4
RPM: 3250
Temperature Range (F): 40°-220°F
Type1 Pump
Voltage 115v
Warranty: 3-Year Warranty
