1" MPT x 4-3/4" Solid 304 Stainless Steel Short Well Tank Tee

Click Image for Gallery

Description
Reviews (0)

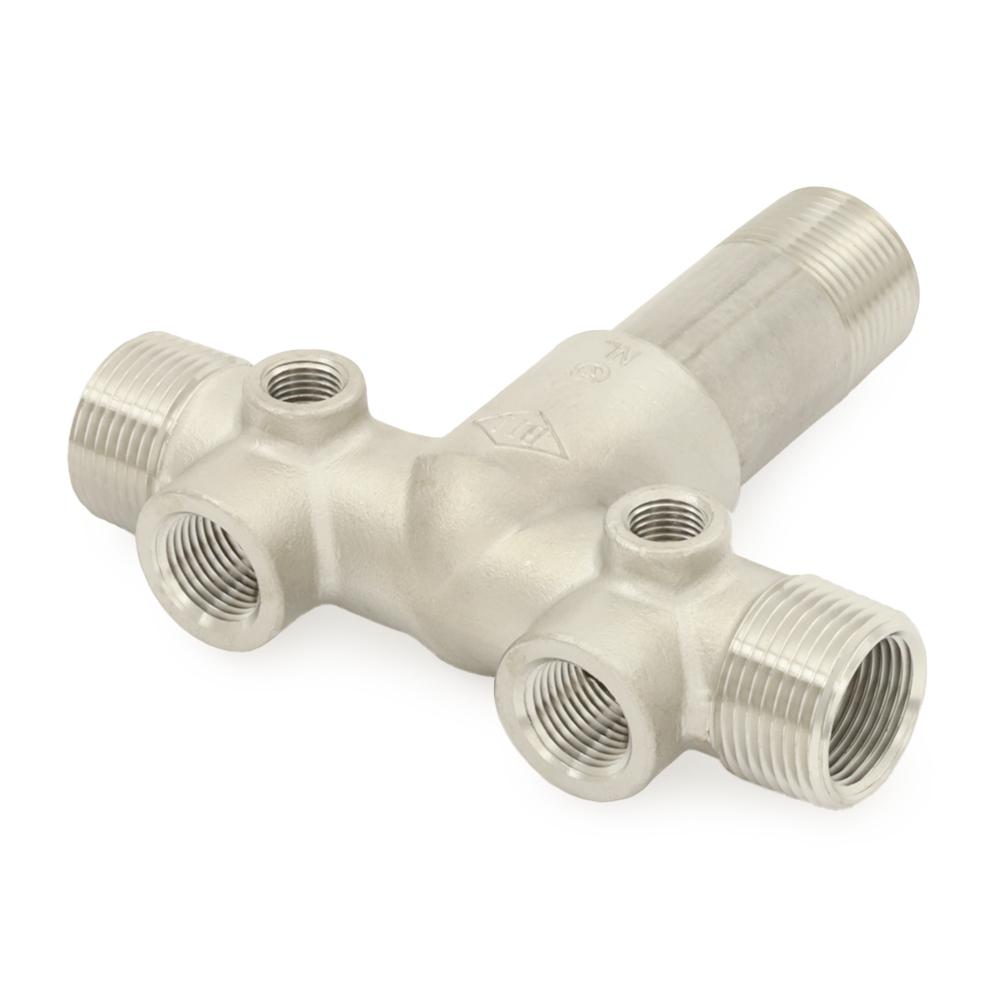

Solid 304 stainless steel, lead-free well tank tee with 1" male NPT threaded tank connection, 1" MNPT (3/4" FNPT inside) inlet/outlet ports, (2) 1/4" FNPT accessory ports (for pressure switch and pressure gauge) on top and (2) 1/2" FNPT ports (for pressure relief valve & drain valve) at the front. It has a center-to-end length of 4-3/4" and an overall length of ~5-1/4".
This well tank tee model is a "Short" type and is commonly used for well tanks with a connection which protrudes beyond the base (skirt) of the tank and is visible from the outside.
It is also suitable for direct connection to in-line (non-standing - system mount or horizontal) tanks, such as Well-X-Trol WX-104/200/200UG/202UG/200PS/202PS/202H and similar.

Technical Specifications:

Material: 304 Stainless Steel
Center-to-End Length: 4-3/4"
Overall Length:
Tank Connection: 1" MPT
In-Line Tee Connections: 1" MPT x 3/4" FPT
Drain/PRV Ports: (2) 1/2" FPT
Top/Accessory Ports (Gauge & Pressure Switch): (2) 1/4" FPT
Max. Operating Pressure: 200 psi

Features:

Short design commonly used for well tanks with connection protruding from the base
High quality, solid 304 stainless steel material (Sch 40 wall thickness) made to ASTM A312 standard
100% lead-free, NSF/ANSI 372 listed
Superior resistance to corrosion (and 100% resistance to dezincification in hard water conditions)
Features (2) drain ports (for temperature gauge and pressure switch), (2) accessory ports (for pressure relief valve and drain valve), (2) in-line connection ports (water inlet and outlet ports) and (1) well water tank connection
Threads made to ANSI/ASME B1.20.1
