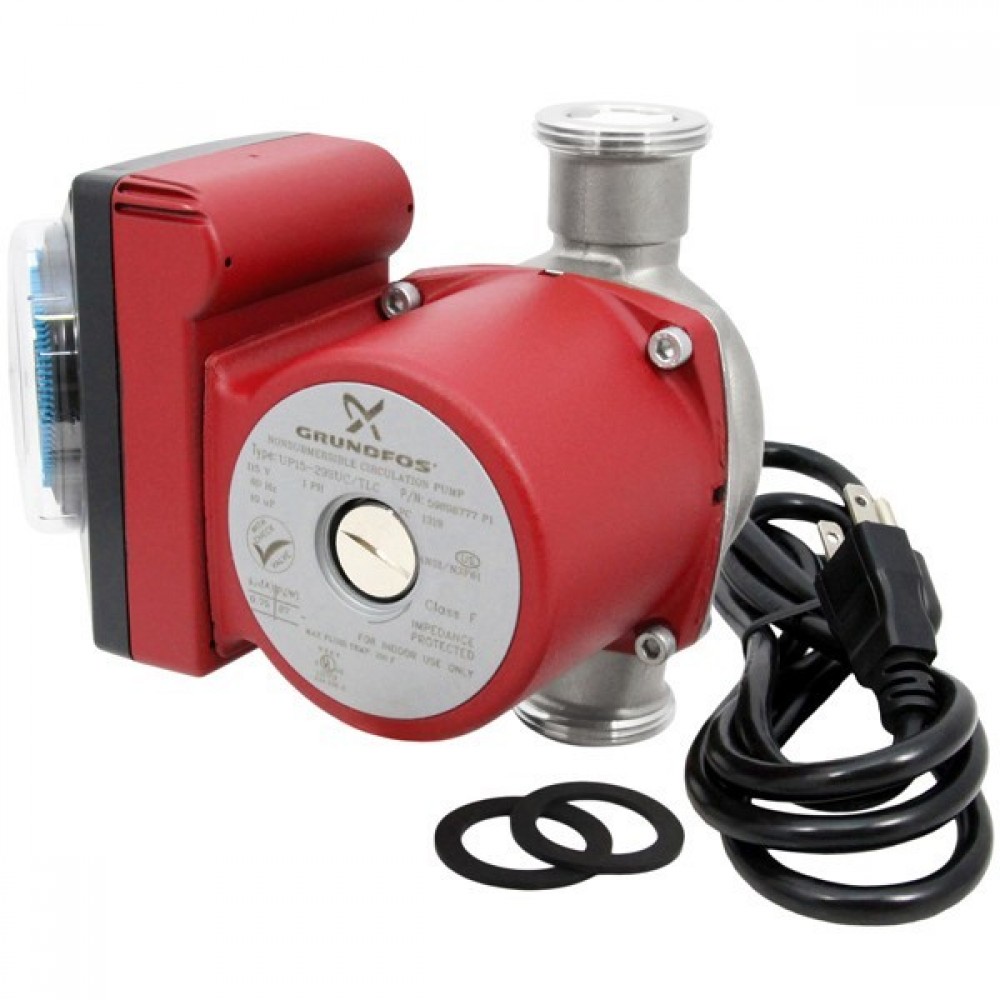

Grundfos 59896777 Stainless Steel Circulator Pump, 1-1/4" Union, 1/8HP, 115V, Timer & Line Cord

Click Image for Gallery

The 59896777 from Grundfos is a UP15-29SUC/TLC 1/8HP Stainless steel Circulator Pump with a removable Integral Check Valve, 1-1/4" (GU125) union connections, Timer and 6-foot Power Cord. It's perfectly suited for recirculation applications thanks to the built-in timer and unnecessary wiring is eliminated by plugging the circulator directly into the electrical outlet. Stainless steel construction of the UP15-29SUC/TLC model allows to use it in applications such as radiant, solar, hydronic, chilled water cooling, domestic hot water recirculation and many others.

Features:

Ceramic shaft and radial bearings;
Carbon axial bearing;
Stainless steel rotor can and bearing plate;
Corrosion-resistant impeller, Composite, PES;
Stainless steelpump housing;
Union connection;
Check valve;
Line cord;
Timer;

Technical Specifications of Grundfos UP15-29SUC/TLC:

Speed Number: 1;
Max flow: 20.7 US gpm;
Head max: 9.84 ft;
Liquid temperature range: 35.6 .. 150 F;
Maximum operating pressure: 145 psi;
Approvals on nameplate: UL, CSA;
Pump housing: Stainless steel;
Pump housing: DIN W.-Nr. 1.4301;
Pump housing: AISI 304;
Impeller: Composite, PES;
Maximum ambient temperature: 104 F;
Ambient max at 176 F liquid: 176 F;
Maximum operating pressure: 145 psi;
Flange standard: USA Threaded;
Type of connection: S.S. Union;
Pipe connection: 1 1/4" NPSM;
Pressure stage: 10;
Port-to-port length: 5.87";
Number of poles: 2;
Max. power input: 87 W;
Rated power - P2: 0.121 HP;
Main frequency: 60 Hz;
Voltage: 115V;
Current in speed 3: 0.75 A;
Capacitor size - run: 10 mF/180 V;
Insulation class (IEC 85): F;
Gross weight: 6.2 lb;

Manufacturer's warranty:

2 years from date of installation.

Product Specs
Amperage:	0.42
Application	Heating
Connection Size:	3/4"
Connection Type	Union
Flow Range (GPM):	0-20.5
Head Range (ft.):	0-9.7
Hertz:	60
Horse Power	1/12
Material1	Stainless Steel
Max Flow (GPM):	20.5
Max Head (Ft):	9.7
Max Pressure (PSI):	145
Phase:	1
Temperature Range (F):	36°-150°F
Type:	1-Speed Pump
Voltage	115v
