Grundfos 59896778 3-Speed Stainless Steel Circulator Pump w/ IFC, 1-1/4" Union, 1/6HP, 115V

Click Image for Gallery

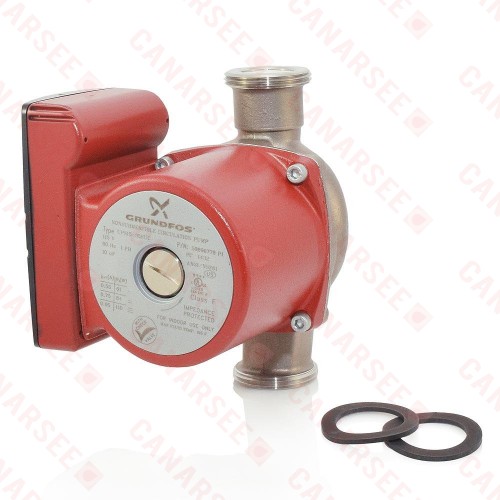

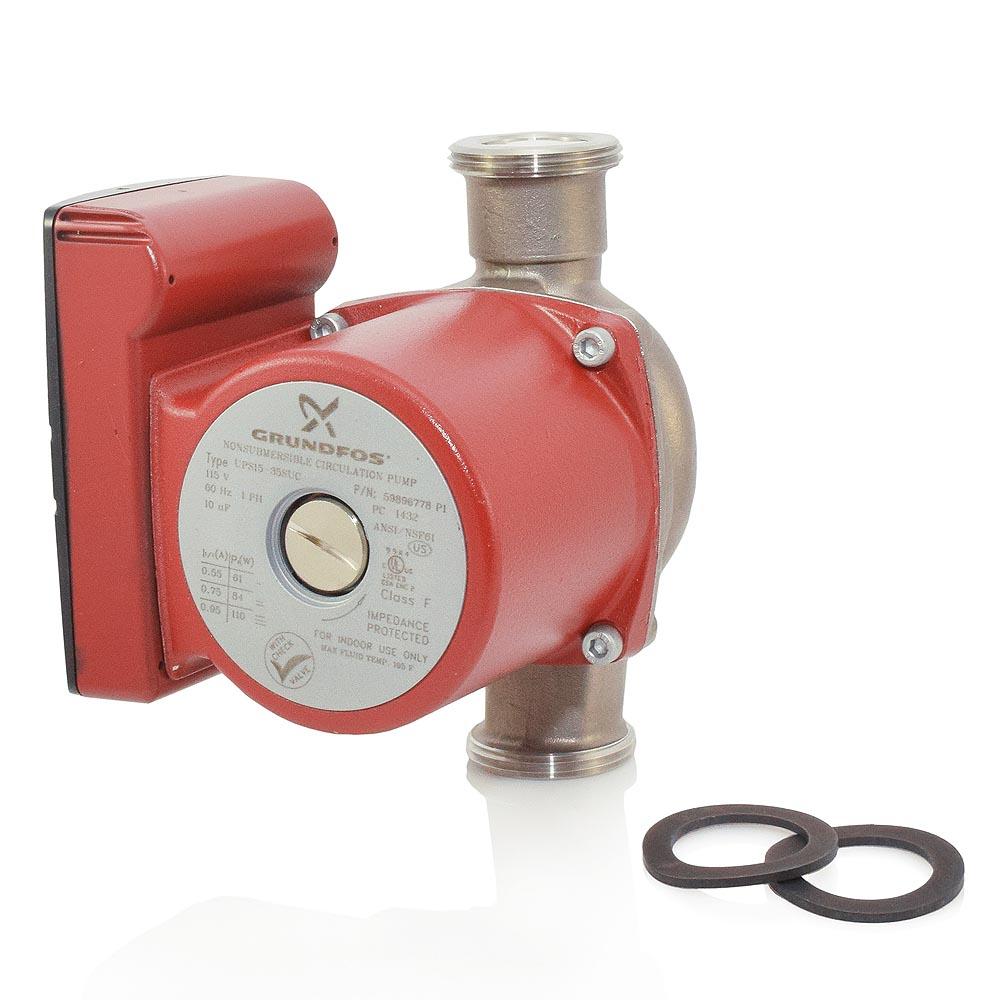

The 59896778 from Grundfos is a UP15-29SUC 1/8HP Stainless steel 3-Speed Circulator Pump with a removable Integral Check Valve, 1-1/4" (GU125) union connections. This circulator model can be easily integrated into the system by adjusting the speed (Low/Med/High) and thus matching the system's requirements. Built-in check valve performs better than traditional in-line check valves and eliminates the need to buy and install a separate one.

Features:

Ceramic shaft and radial bearings;
Carbon axial bearing;
Stainless steel rotor can and bearing plate;
Corrosion-resistant impeller, Composite, PES;
Stainless steelpump housing;
Union connection;
Check valve;

Technical Specifications:

Speed Number: 3;
Max flow: 21.6 US gpm;
Head max: 12.1 ft;
Liquid temperature range: 35.6 .. 165.2 F;
Maximum operating pressure: 145 psi;
Approvals on nameplate: UL, CSA;
Pump housing: Stainless steel;
Pump housing: DIN W.-Nr. 1.4301;
Pump housing: AISI 304;
Impeller: Composite, PES;
Maximum ambient temperature: 104 F;
Ambient max at 176 F liquid: 176 F;
Maximum operating pressure: 145 psi;
Flange standard: USA Threaded;
Type of connection: S.S. Union;
Pipe connection: 1 1/4" NPSM;
Pressure stage: 10;
Port-to-port length: 5.87";
Number of poles: 2;
Power input in speed 1: 61 W;
Power input in speed 2: 85 W;
Max. power input: 110 W;
Rated power in speed 1: 1/6HP;
Rated power in speed 2: 1/9HP;
Rated power in speed 3: 1/12HP;
Main frequency: 60 Hz;
Voltage: 115V;
Current in speed 1: 0.6 A;
Current in speed 2: 0.75 A;
Current in speed 3: 0.95 A;
Capacitor size - run: 10 mF/180 V;
Insulation class (IEC 85): F;
Gross weight: 5.4 lb;

Manufacturer's warranty:

2 years from date of installation.

Product Specs
Connection Type	NPSM Union
Frequency:	60 Hz
Horse Power	1/15
Material1	Stainless Steel
Max Flow (GPM):	21.6
Max Head (Ft):	12.1
Max Pressure (PSI):	145
Mount	In-Line
Phase:	1
Speeds:	3
Type:	3-Speed Pump
Voltage	115v

Views: 7388
Model: 59896778
MPN: 59896778
Availability: Discontinued
Usually ships: Upon availability
