Low Limit/Circulator Remote Bulb Aquastat, 5-30F Differential, 100F-240F

Low Limit/Circulator Remote Bulb Aquastat, 5-30F Differential, 100F-240F
Views: 5600 Model: L6008A1192
UPC: 85267053877

MPN: L6008A1192

Weight:1.50 lb

Dimensions (L x W x H ): 12.50 x 5.00 x 3.00

Usually ships: Upon availability
Qty: Add to Cart


Have any questions?
Contact us at 1-800-246-9552

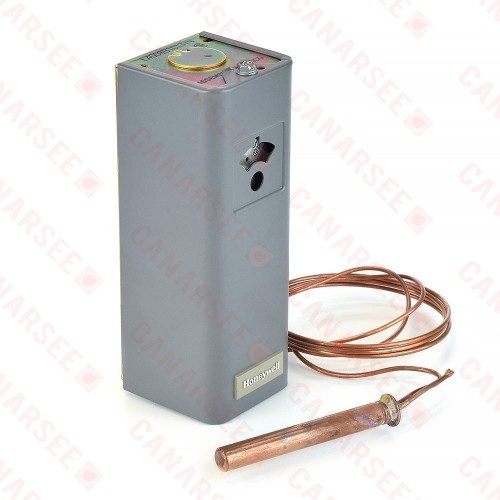

The L6008A1192 from Honeywell is a Low Limit/Circulator Remote Bulb Aquastat, 100°F – 240°F. An Aquastat Controller is an immersion type device for limiting or regulating the temperature of liquids in boilers, storage tanks, and other applications where temperature control is required.


  • Totally enclosed Micro Switch snap-acting switch;
  • Visible control point scale and external adjustment screw permit easy setting;
  • Remote temperature sensing element detects and responds rapidly to temperature changes;
  • Case mounts to a vertical surface.

Technical Specifications:

  • Application: Circulator Control and Low Limit;
  • Dimensions (Height x Width x Depth): 5 5/8" x 2" x 2 1/8" (136mm x 51mm x 54mm);
  • Temperature Range: 150°F (66°C);
  • Mounting: Horizontal or Vertical;
  • Operating Temperature Range: 100°F - 240°F (38°C – 116°C);
  • Differential Temperature: 5°F to 30°F adj (3°C to 17°C adj);
  • Electrical Ratings, Burner & Circulator: Millivolt - 0.25A @ 0.25-12 Vdc, At Full Load - 8A @ 120 Vac (5.1A @ 240Vac), At Locked Rotor - 48A @ 120 Vac (30.6A @ 240Vac).
Product Specs
Application:Low Limit
Depth (Inches):2-1/8"
Electrical Rating:5.1A @ 240 Vac
Electrical Ratings (ALR):30.6A @ 240 Vac
Max Ambient Temp (°F):150 F
Max Temp Differential:30°F
Min Temp Differential:5°F
Switch Action:SPDT
Temperature Range (F):100°F to 240°F
Well Included:No
