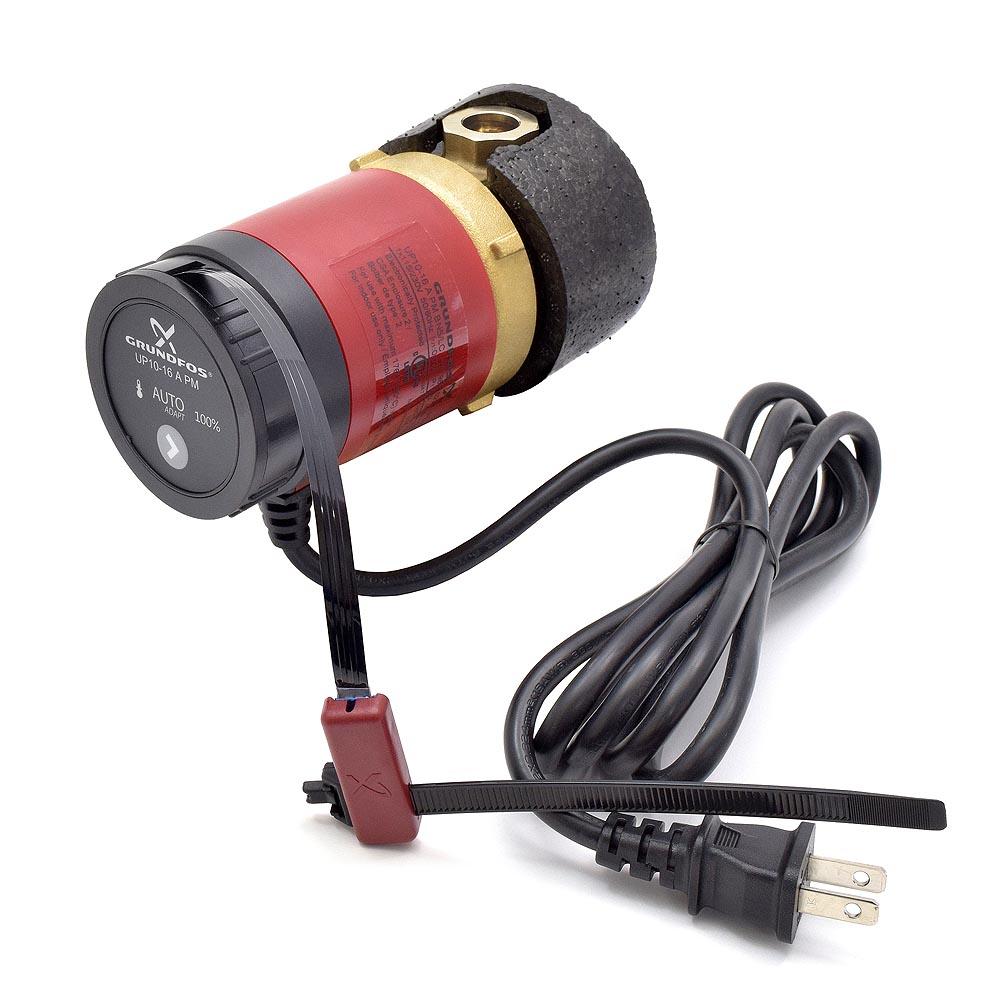

98420222 Grundfos UP10-16 APMB5 Pump, 1/2" Sweat, 115V, AUTOAdapt & Line Cord

Discontinued 98420222 Grundfos UP10-16 APMB5 Pump, 1/2" Sweat, 115V, AUTOAdapt & Line Cord

The 98420222 from Grundfos is a UP10-16 Comfort Pump, 115V, w/ 1/2” Sweat, AUTOAdapt & Line Cord.  It's designed for recirculation of domestic hot water in single-family homes with dedicated hot-water return piping. Utilizing a low-noise permanent magnet motor, energy consumption is reduced to as little as 5 - 8.5 W. Selecting the Auto mode ensures that the pump runs only when required. The result is maximum comfort - no waiting for hot water plus decreased water and power consumption.


Features:

  • Easy installation;
  • Minimize water waste;
  • Lower energy consumption;
  • Learns and adapts to homeowner’s water temperature needs.

Technical Specifications:

  • Connection: 1/2" Sweat;
  • Flow Range: 0-2.2 GPM (0-0.5 m³/h);
  • Head Range: 0-3.9 ft (0-1.2 m);
  • Phase: 1;
  • Housing: EcoBrass;
  • Maximum Liquid Temperature: 185°F (85°C);
  • Minimum Liquid Temperature: 36° (2°C);
  • Maximum System Pressure: 145 psi (10 bar);
  • Voltage: 115/208-230V;
  • Amperage: 0.23 Amps;
  • Power: 5-8.5 Watts.
Product Specs
Connection Size: 1/2"
Connection Type Sweat
Includes: Line Cord
Max Flow (GPM): 2.2
Max Head (Ft): 3.9
Max Pressure (PSI): 145
Phase: 1
Temperature Range (F): 36°F to 185°F
Type1 Automatic
Voltage 115v
