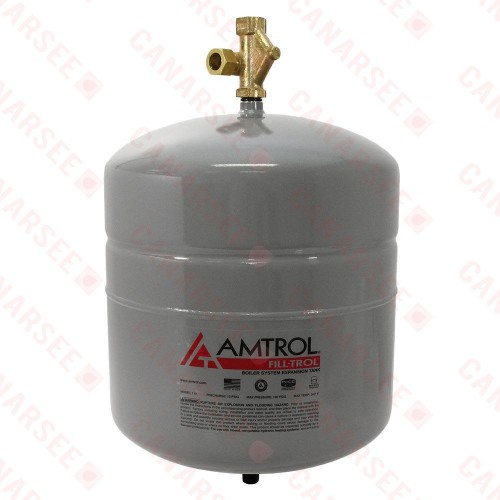

110-1 Fill-Trol 110 Expansion Tank With Fill Valve Amtrol (110) Expansion Tank 4.4 G

Click Image for Gallery

The 110-1 from Amtrol is a Fill-Trol 110 Expansion Tank with Fill Valve (4.4 gal). It contains a diaphragm type Extrol expansion tank and an automatic, fully adjustable to 100 psi pressure reducing Fill-Trol valve. Used in closed loop hydronic heating and radiant heating applications.

Technical Specifications:

Factory pre-charged 12 psi;
System connection: 1/2" female threaded;
Max. operating temperature: 240F;
Max. operating pressure: 100 psig;
Expansion tank volume: 4.4 gallons;
Max. accepted volume: 2.5 gallons;
Height: 17-3/8";
Diameter: 11";
Shipping weight: 10 lbs;

Warranty:

5-year manufacturer's warranty.

Product Specs
Application	Heating
ASME:	No
Capacity (Gallons):	4.4
Connection Size:	1/2"
Connection Type	NPFT
Diameter (Inches):	11"
Height	17.375"
Max Accepted Volume:	2.5 Gallons
Max Pressure (PSI):	100
Precharged PSI:	12 psi
Tank Volume	4.4 Gallons
Thread Size:	1/2"
Warranty	5-Year Limited Warranty
Weight (lbs):	10 lbs

Views: 11200
Model: 110-1
MPN: 110-1
Availability: Out Of Stock
Usually ships: within 1 business day(s)
