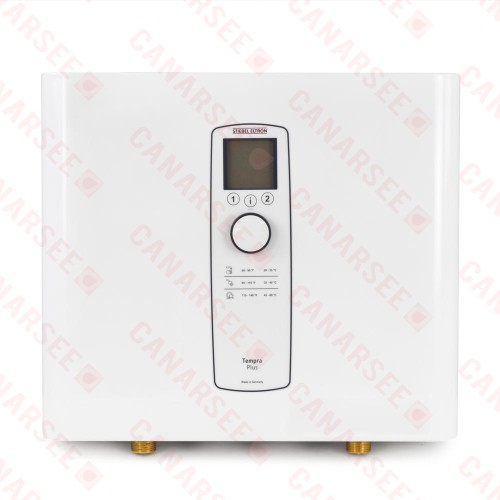

Stiebel Eltron Tempra 20 Plus, Whole House Electric Tankless Water Heater, 19.2/14.4kW, 240/208V
-10%
Click Image for Gallery
Tempra 20 Plus Whole House Electric Tankless Water Heater 19.2/14.4kW, 240/208V
7 years leakage / 3 years parts
- Voltage: 240 or 208V (hardwired)
- Output: 19.2kW at 240V (14.4kW at 208V)
- Amperage: 2x40A at 240V (2x35A at 208V)
- Number & min. recommended size of curcuit breakers: 2x40A at 240V (2x35A at 208V)
- Number of runs & min. recommended wire size: 2x8/2 AWG
- May be wired for unbalanced 3-phase 208V
- Water Connections: 3/4" NPT
- Min. activation flow rate: 0.50 gpm
- Nominal water volume: 0.26 gal
- Max. temperature increase: 240V - 88F @ 1.50 GPM, 58F @ 2.25 GPM, 44F @ 3.00 GPM, 29F @ 4.50 GPM
- Max. temperature increase: 208V - 66F @ 1.50 GPM, 44F @ 2.25 GPM, 33F @ 3.00 GPM, 22F @ 4.50 GPM
- Max. inlet water temperature: 131F
- Working pressure: 150 psi
- Tested to pressure: 300 psi
- Dimensions (Height x Width x Depth): 14-1/2" x 16-5/8" x 4-5/8"
- Weight: 16.1 lb
7 years leakage / 3 years parts
- Views: 1997
-
- Model: TEMPRA-20-PLUS
- MPN: TEMPRA-20-PLUS
- Availability: Out Of Stock
- Usually ships: within 1 business day(s)
