109-1 Fill-Trol 109 Expansion Tank With Fill Valve Amtrol (109) Expansion Tank 2.0 G

109-1 Fill-Trol 109 Expansion Tank With Fill Valve Amtrol (109) Expansion Tank  2.0 G

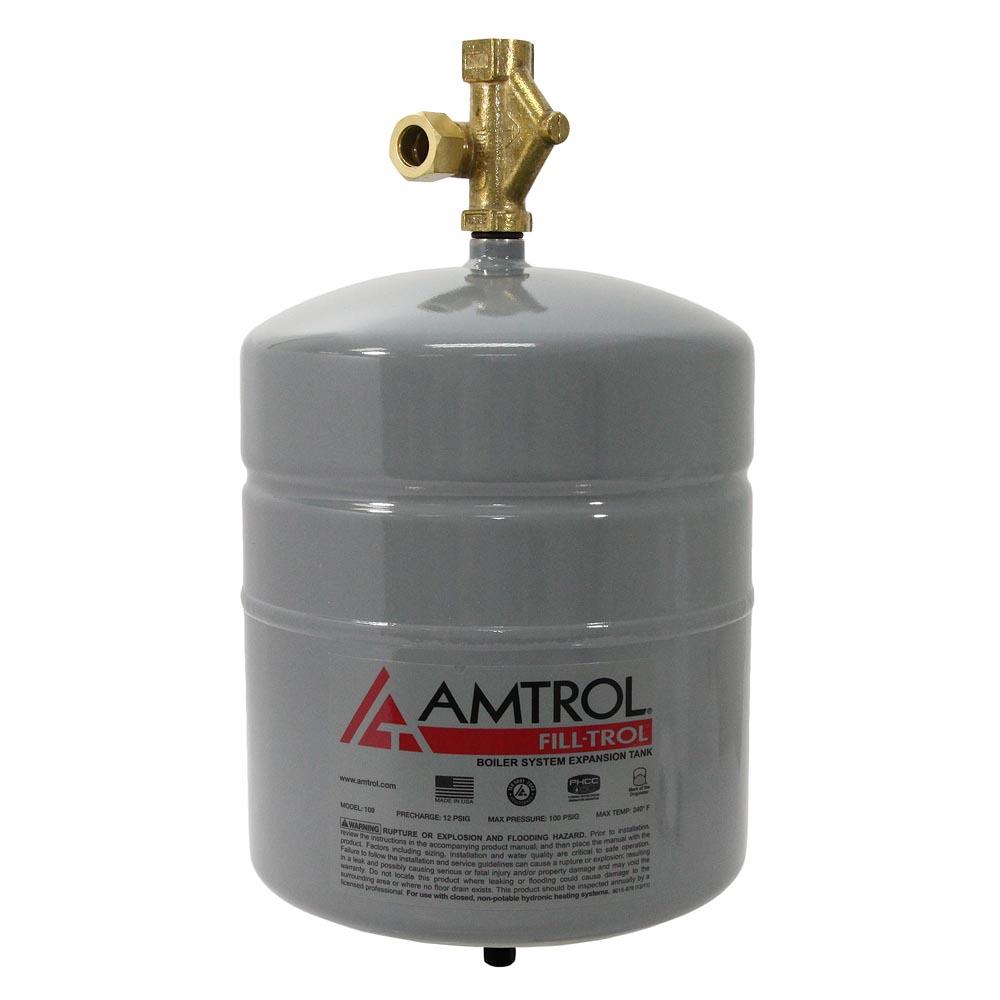

The 109-1 from Amtrol is a Fill-Trol 109 Expansion Tank with Fill Valve (2.0 gal). It contains a diaphragm type Extrol expansion tank and an automatic, fully adjustable to 100 psi pressure reducing Fill-Trol valve. Used in closed loop hydronic heating and radiant heating applications.


Technical Specifications:

  • Factory pre-charged 12 psi;
  • System connection: 1/2" female threaded;
  • Max. operating temperature: 240F;
  • Max. operating pressure: 100 psig;
  • Expansion tank volume: 2.0 gallons;
  • Max. accepted volume: 0.9 gallons;
  • Height: 14-3/4";
  • Diameter: 8";
  • Shipping weight: 5 lbs;


Warranty:

  • 5-year manufacturer's warranty.
Product Specs
Application Heating
ASME: No
Capacity (Gallons): 2.0
Connection Size: 1/2"
Connection Type NPFT
Diameter (Inches): 8"
Height 15"
Max Accepted Volume: 1 Gallon
Max Pressure (PSI): 100
Precharged PSI: 12 psi
Tank Volume 2 Gallons
Thread Size: 1/2"
Warranty 5-Year Limited Warranty
Weight (lbs): 6 lbs

Write a review

Please login or register to review
  • Views: 14032
  • Model: 109-1
  • MPN: 109-1
  • Availability: In Stock
  • Usually ships: within 1 business day(s)
  • $ 98.95
