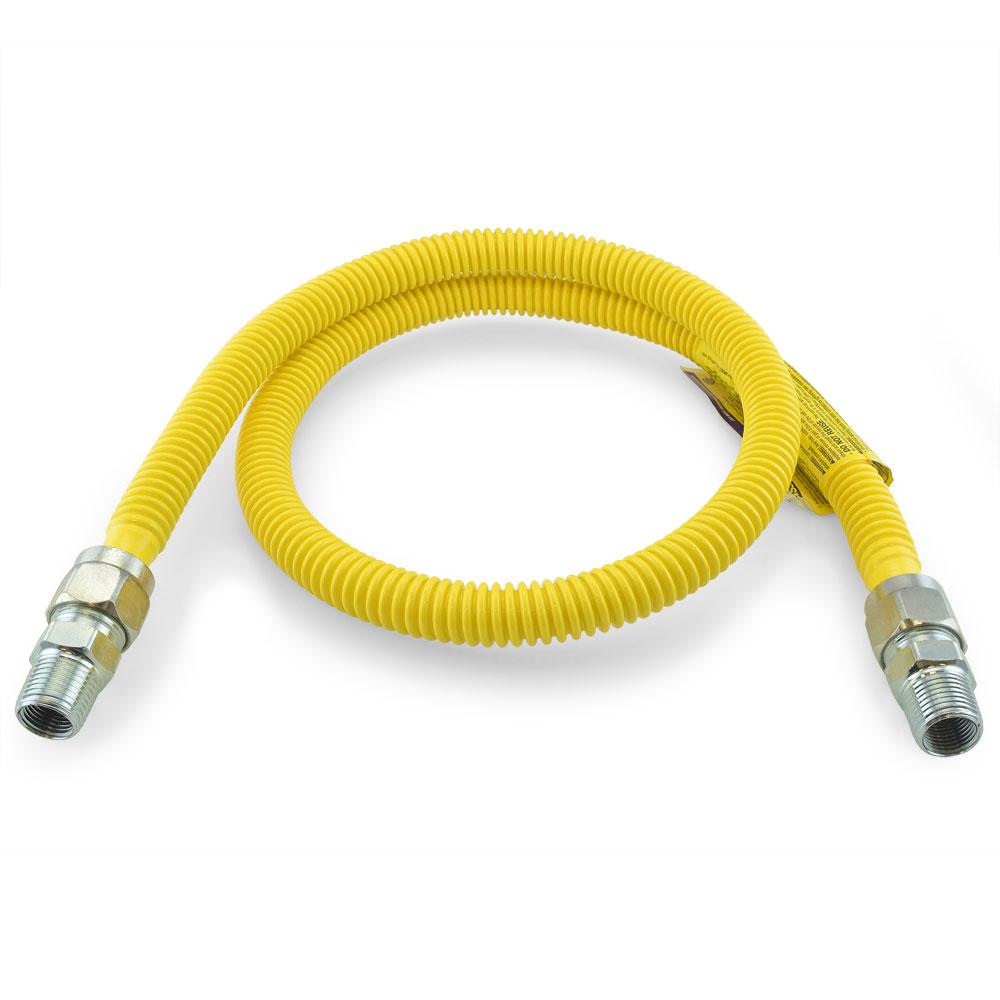

48" ProCoat Stainless Steel Gas Connector, 1/2" MIP x 1/2" MIP, 1/2" ID

Click Image for Gallery

48" ProCoat Stainless Steel Gas Connector, 1/2" MIP x 1/2" MIP, 1/2" ID QR Code

QR Views: 4557

Model: CSSC44-48

MPN: CSSC44-48

Availability:61

Weight:17.60 lb

Dimensions (L x W x H ): 9.50 x 9.50 x 2.75

Usually ships: 1 business days

$14.45

Qty: Add to Cart

Add to Wish List Add to Compare

0 reviews • Write a review

ORDERS OVER $99 SHIP FREE

Have any questions?
Contact us at 1-800-246-9552

Description Specification Reviews (0)

The CSSC44-48 from BrassCraft is a 48” ProCoat Stainless Steel Gas Connector, 1/2” MIP x 1/2” MIP (1/2” ID; 5/8” OD). It provides a secure and lasting gas connection. ProCoat technology provide unequaled corrosion resistance. For use with indoor and outdoor connections of gas appliances to gas piping system.

Materials of Construction:

Tubing: 304L stainless steel;
Coating: Polymer blend;
Nuts: 12L14 or 1010 steel;
Fittings: 12L14 or 1010 steel.

Features:

Superior corrosion resistance to harsh chemicals found in common household cleaning, plumbing repair and masonry products;
UV rays & salt resistant, ProCoat gas connectors are certified for indoor & outdoor use;
Greater strength & flexibility with greater depth & number of corrugations to withstand greater torque & bend cycles;
Outperforms industry standards for torsion (1.5X) without compromising the integrity of the coating or connector;
Outperforms industry standard for repeated bending (2X) without compromising the integrity of the coating or connector;
One-piece construction has no soldered of brazed joints;
Smoother, burnished flare on connector ends seal with less torque;
Uniform coat over entire length of connector for complete corrosion resistance of the stainless steel core;
100% leak tested;
Made in the USA.

Technical Specifications:

Connections: 1/2" MIP fittings on both sides;
Hose Diameter: 1/2" ID (5/8" OD);
Length: 48";
Temperature: -40°F to 150°F;
Maximum Pressure: standard line pressure up to 1/2 PSI;
Flow Capacity for Natural Gas (Straight Length): 106,000 BTU/hr;
Flow Capacity for LPG/Propan (Straight Length): 169,600 BTU/hr.

Product Specs
Connections:	1/2" MIP fittings on both sides
Flow Capacity for LPG/Propan (Straight Length):	169,600 BTU/hr.
Flow Capacity for Natural Gas (Straight Length):	106,000 BTU/hr
Hose Diameter:	1/2" ID (5/8" OD)
Length:	48"
Maximum pressure:	standard line pressure up to 1/2 PSI
Temperature:	-40°F to 150°F
