2-1/2" Press Close Turn Copper 90° Street Elbow, Made in the USA

2-1/2" Press Close Turn Copper 90° Street Elbow, Made in the USA
2-1/2" Press Close Turn Copper 90° Street Elbow, Made in the USA QR Code
QR-Code
Views: 76 Model: 10062007

MPN: 10062007

Weight:1.65 lb

Dimensions (L x W x H ): 5.50 x 3.20 x 5.00

Usually ships: Upon availability
$153.45
Qty: Add to Cart

ORDERS OVER $99 SHIP FREE

Have any questions?
Contact us at 1-800-246-9552

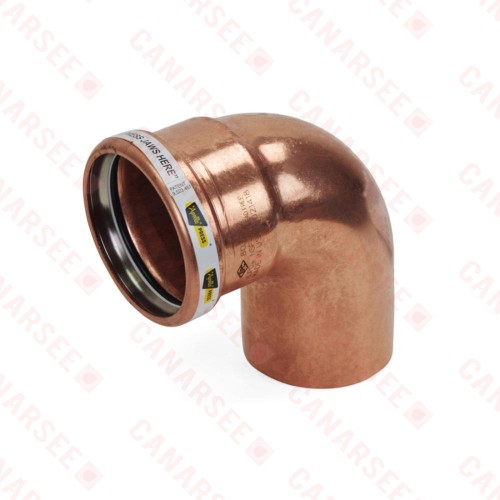

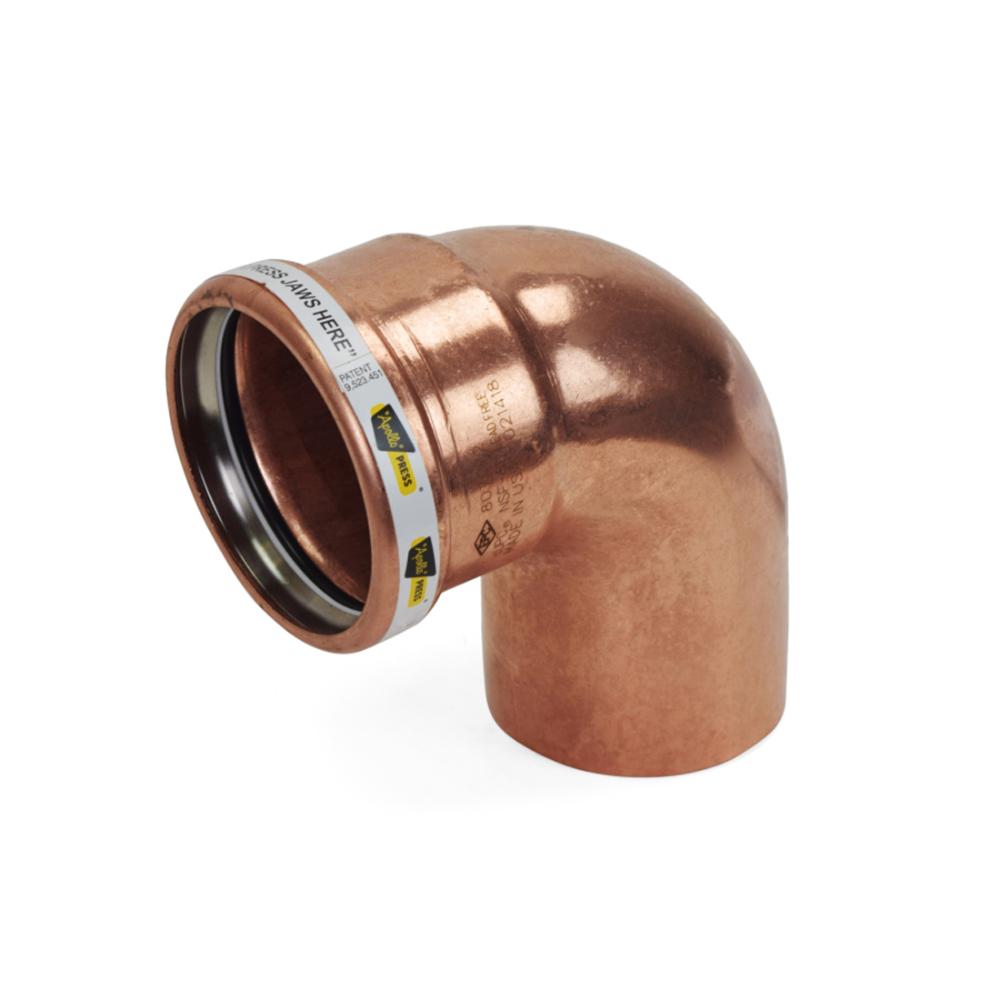

This close turn press elbow fitting connects 2-1/2" copper pipe to 2-1/2" press fitting outlet at a 90-degree angle.

Technical Specifications:
  • Hot & cold water: up to 200 psi at 33°F-250°F
  • Low pressure steam: up to 15 psi
  • Compressed air & inert gases: up to 140 psi
  • For use with: K, L & M types hard (drawn) and soft (annealed) copper tubing
  • O-ring material: EPDM
  • O-ring lubricant: NSF/ANSI 61 listed silicone oil.


Features:
  • Made in the USA
  • Lead-free, approved for potable water use nationwide
  • Meets NSF/ANSI 61 & 372, UPC, ARRA and ICC compliant (see Literature for complete list of approvals)
  • Applications include hot & cold water plumbing, hydronic heating (incl. ethylene, propylene and butylene glycol mixes), compress air (oil-free), low pressure steam, vacuum, grey water and others.
  • Heat & flame-free installation, no fluxing, cleaning, soldering or prep. Work
  • Compatible with XL-C pressing tools
  • Leak Before Press feature.
  • Approved for underground installation (per local installation code).
  • Visual element, Break Away Band (Pat. Pending).
