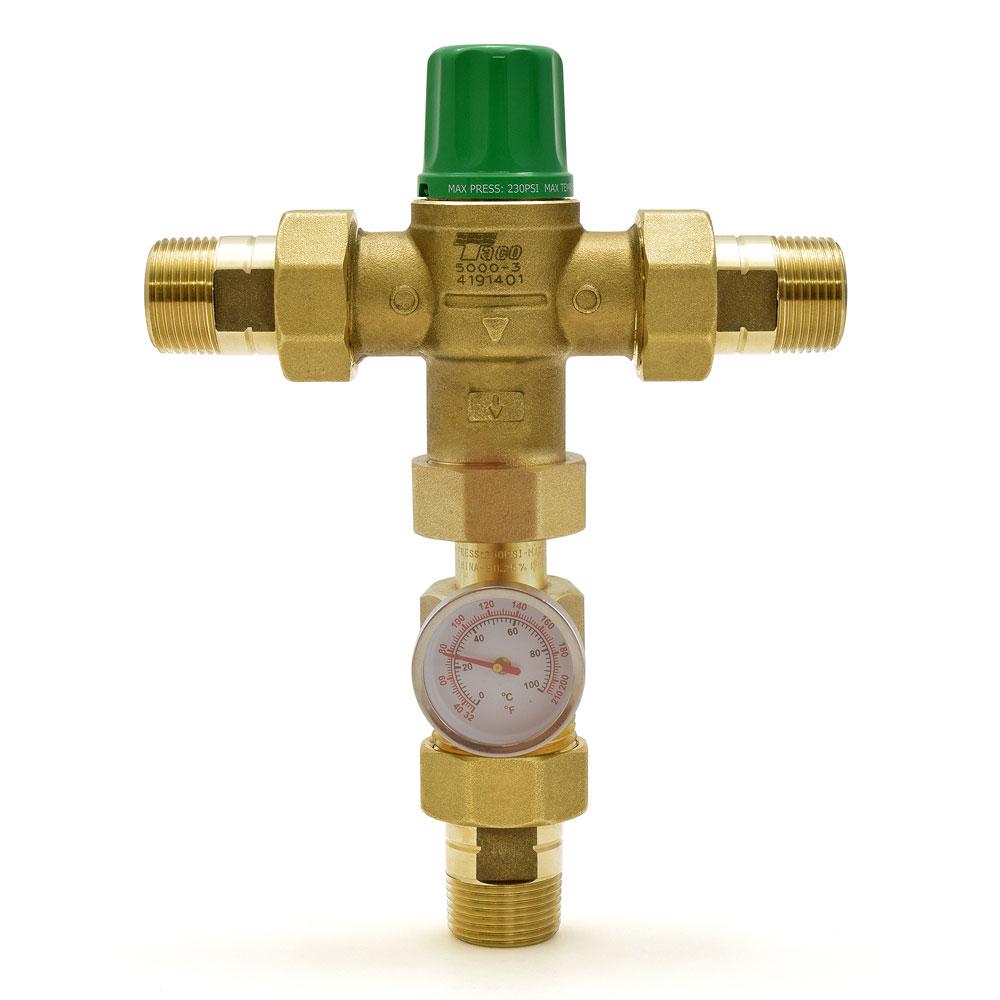

Taco 3/4” Union Threaded Mixing Valve w/ Temperature Gauge (Lead-Free), 85F-175F

Click Image for Gallery

The 5003-T3-G from Taco is a 3/4” Union Threaded Mixing Valve w/ Temperature Gauge (Lead-Free), 85F-175F. It allows to mix domestic hot water at a temperature high enough to kill harmful bacterial but deliver it at a safe and comfortable temperature of 120°F or less. Temperature gauge to display output water temperature included.

Features:

Lead-Free Compliant (≤25% Lead);
Temperature Gauge Included;
Ideal for Domestic Water Distribution Points;
Suitable for use in Potable Water;
Delivers Stable Mixed Water Temperature.

Technical Specifications:

Connection: 3/4" Union NPT;
Maximum Flow: 20 GPM (76 L/Min);
Minimum Flow: 1 GPM (3.8 L/Min);
Hot Supply Temperature: 120-180°F (49-82°C);
Cold Supply Temperature: 39-80°F (5-27°C);
Maximum Inlet Pressure: 230 psi (15.85 Bar);
Maximum Variation in Supply Pressure: 20%;
Minumum Temperature Differention Between Hot Supply and Mixed: : 27°F (15 °C);
Outled Temperature Range: 85-175°F (29-80°C);
Factory Set To (115-120°F (41-45°C);
Accuracy of Outlet Temperature: ±3°F.

Product Specs
Cold Supply Temperature:	39-80°F (5-27°C)
Connection	3/4" Union NPT
Factory Set To (115-120F (41-45C)	±3°F.
Features	Lead Free
Hot Supply Temperature:	120-180°F (49-82°C)
Max Inlet Pressure	230 psi (15.85 Bar)
Maximum Flow:	20 GPM (76 L/Min)
Maximum Variation in Supply Pressure:	20%
Minimum Flow:	1 GPM (3.8 L/Min)
Minumum Temperature Differention Between Hot Supply and Mixed:	: 27°F (15 °C)
Outled Temperature Range:	85-175°F (29-80°C)
