1” Threaded 3-Way Ball Valve, Full Port

1” Threaded 3-Way Ball Valve, Full Port

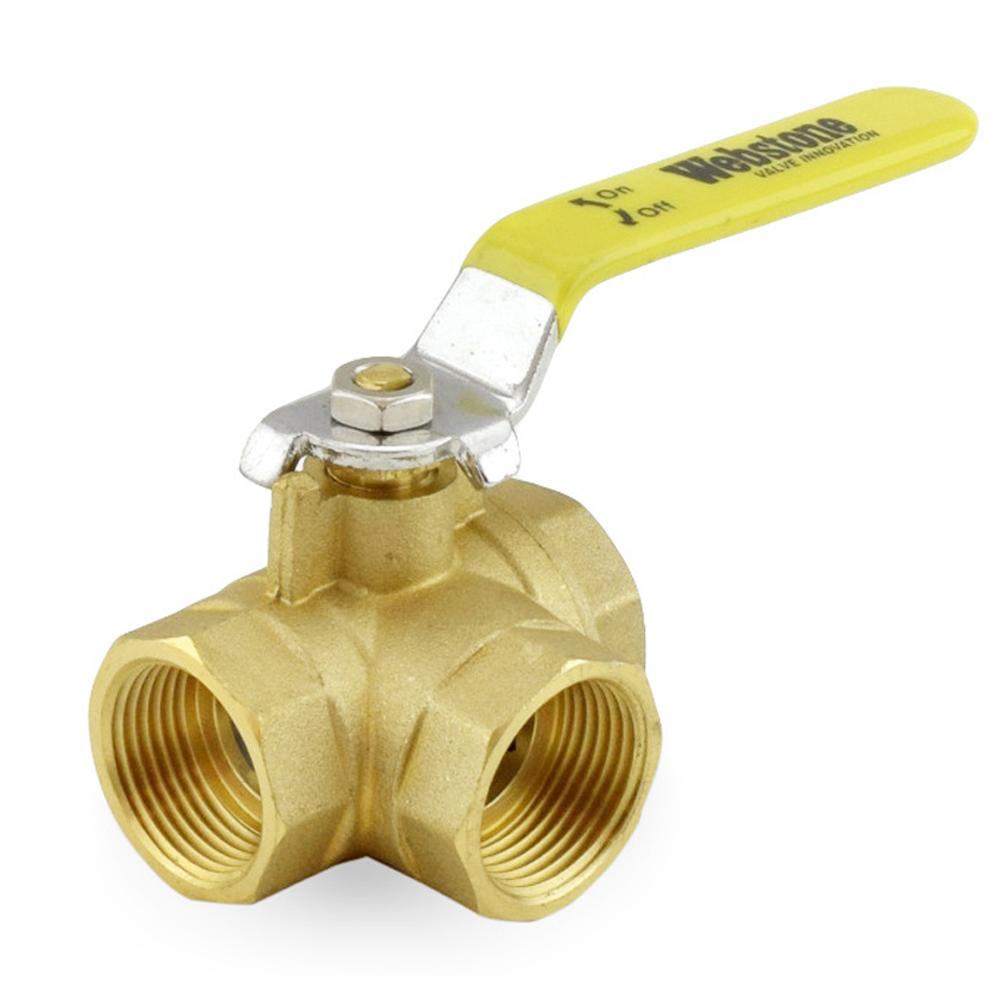

The 40644 from Webstone Valves is a 1” Threaded 3-Way Brass Ball Valve, Full Port.

This product does not meet the new low-lead criteria defined in Safe Drinking Water Act and cannot be used for potable water applications, including for drinking and cooking. This product can be used for non-potable water applications only.


Features:

  • 1" Threaded 3-Way Brass Ball Valve, Full Port;
  • 3-Way, L-port design (left-middle or right-middle flow);
  • Full port, full flow;
  • 1/4-turn reversible steel handle;
  • Adjustable packing gland, blowout-proof stem.


Technical Specifications:

  • System connections: 1/2" Threaded (FNPT) on all outlets;
  • Pressure/temperature ratings: 600 psi @ 100F, 490 psi @ 150F, 470 psi @ 200F, 439 psi @ 250F, 411 psi @ 300F, 294 psi @ 350F;
  • 600 WOG, 150 WSP;
  • Valve length (w/ out handle): 2-15/16";
  • CV: 47.4.
Product Specs
600 WOG, 150 WSP 2-15/16"
CV: 47.4.
System connections: 1/2" Threaded (FNPT) on all outlets
