30 Gal, ProLine Atmospheric Vent Short Water Heater (NG), 6-Yr Wrty
Click Image for Gallery

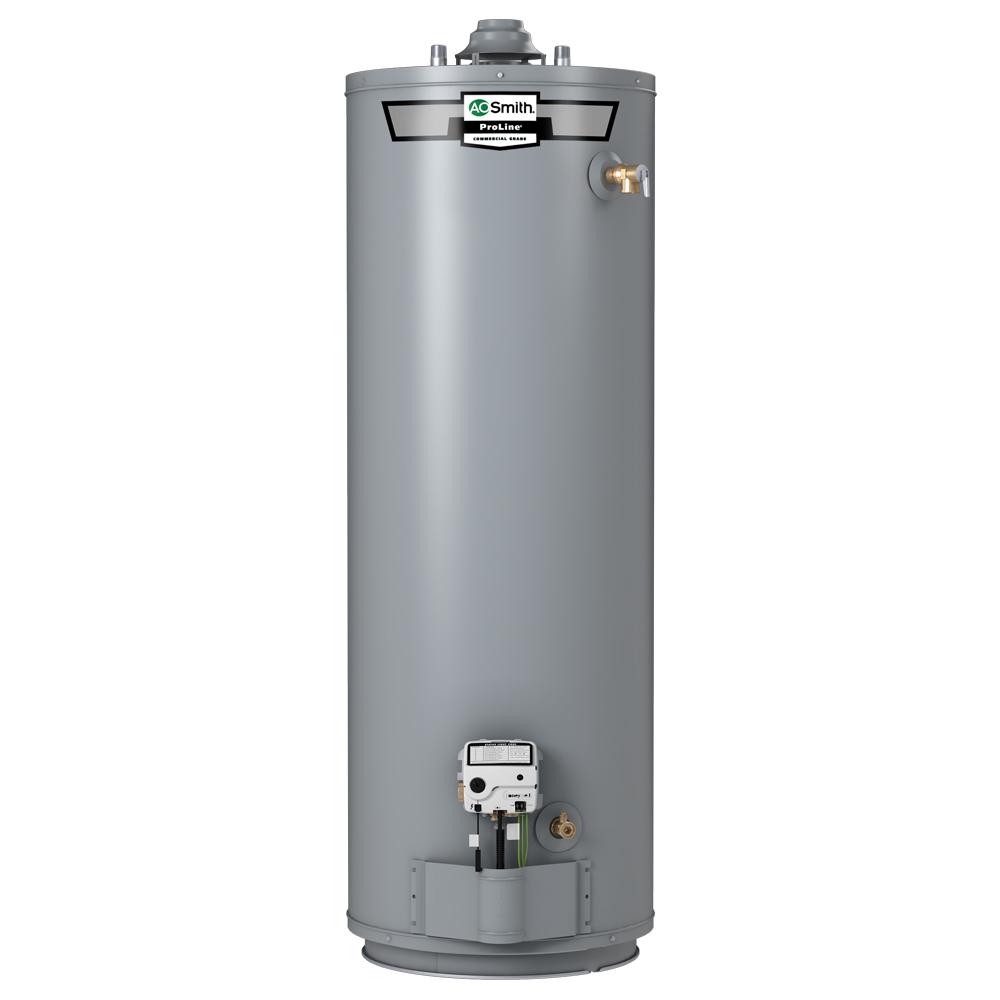

AO Smith ProLine GCRL-30 model is a 30-gallon, short-profile natural gas (NG) atmoshperic vent residential water heater with 6-year warranty.
Technical Specifications:
Features:
Technical Specifications:
- Fuel: Natural Gas (NG)
- Nominal Capacity (Gallons): 30
- Rated Storage Volume (Gallons): 28
- Input (BTU): 35,500
- Uniform Energy Factor: 0.59
- 1st Hour Rating (Gallons): 66
- Recovery @ 90°F Rise (GPH): 36
- Anode: CoreGard Sacrificial
- NOx Emissions: less than 40ng/J
- Water Connections: 3/4" NPT
- Water Connections Location: Top
- Gas Connection: 1/2" NPT
- Max Working Pressure: 150 PSI
- Ignition Type: Piezo push button ignitor
- Vent Type: Atmospheric (Standard)
- Venting Size: 3" or 4"
- Vent Material: B-Vent
- Elevation: 10,100 ft
- Dimensions (Diameter x Height): 20" x 46-1/2" (50" w/ Draft Hood installed)
- Weight (lbs): 118.
Features:
- Blue Diamond glass coating prevents early corrosion of the tank, extending it''s life
- Dynaclean diffuser dip tube reduces sediment build-up and improves long-term efficiency
- Coregard anode rod with stainless steel core
- Heat trap nipple reduces stand-by energy loss
- Push-button piezo ignitor.
- Views: 1423
-
- Model: GCRL-30
- MPN: GCRL-30
- Availability: Discontinued
- Usually ships: Upon availability
- $ 946.84
