30 Gal, ProLine Atmospheric Vent Water Heater (NG), 6-Yr Wrty
Click Image for Gallery

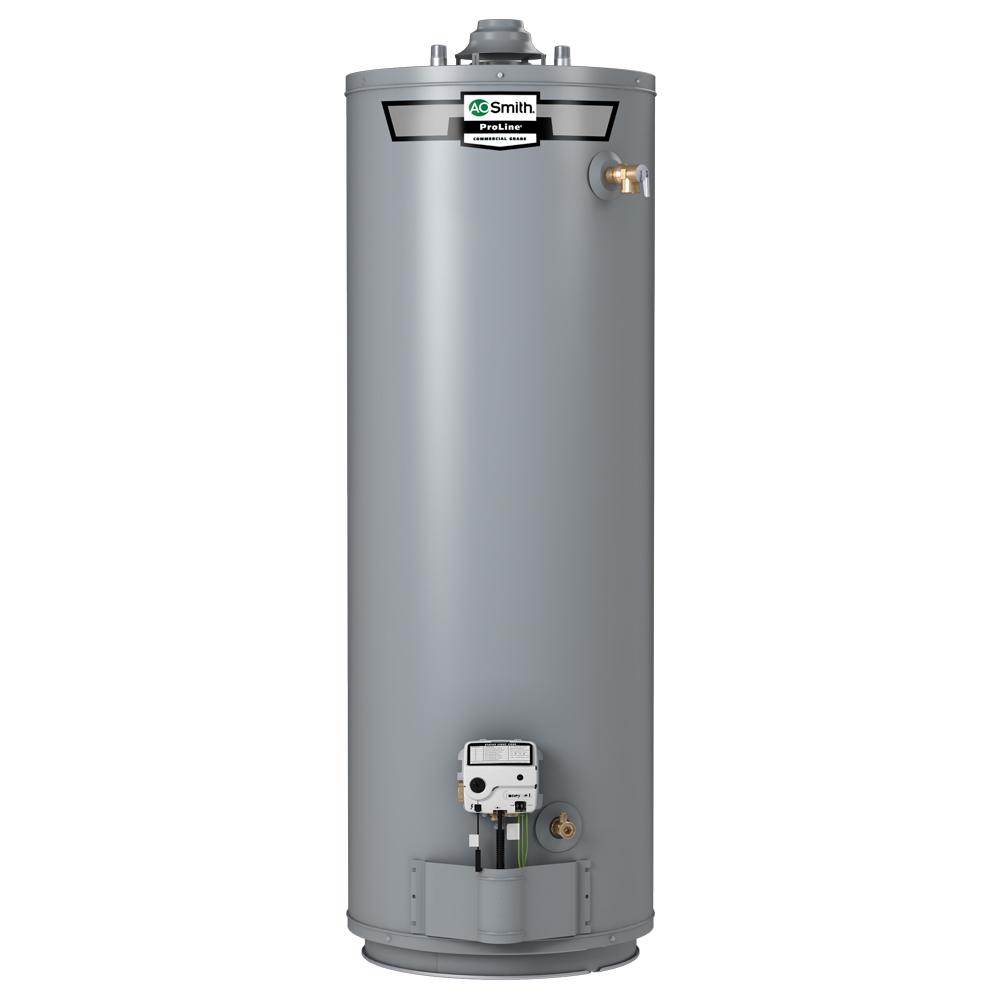

AO Smith ProLine GCR-30 model is a 30-gallon, natural gas (NG) atmospheric vent residential water heater with 6-year warranty.
Technical Specifications:
- Fuel: Natural Gas (NG)
- Nominal Capacity (Gallons): 30
- Rated Storage Volume (Gallons): 29
- Input (BTU): 35,500
- Uniform Energy Factor: 0.60
- 1st Hour Rating (Gallons): 69
- Recovery @ 90°F Rise (GPH): 37
- Anode: CoreGard Sacrificial
- NOx Emissions: less than 40ng/J
- Water Connections: 3/4" NPT
- Water Connections Location: Top
- Gas Connection: 1/2" NPT
- Max Working Pressure: 150 PSI
- Ignition Type: Piezo push button ignitor
- Vent Type: Atmospheric (Standard)
- Venting Size: 3" or 4"
- Vent Material: B-Vent
- Elevation: 10,100 ft
- Dimensions (Diameter x Height): 18" x 58" (61-1/2" w/ Draft Hood installed)
- Weight (lbs): 132.
Features:
- Blue Diamond glass coating prevents early corrosion of the tank, extending it''s life
- Dynaclean diffuser dip tube reduces sediment build-up and improves long-term efficiency
- Coregard anode rod with stainless steel core
- Heat trap nipple reduces stand-by energy loss
- Push-button piezo ignitor.
- Views: 1144
-
- Model: GCR-30
- MPN: GCR-30
- Availability: Discontinued
- Usually ships: Upon availability
