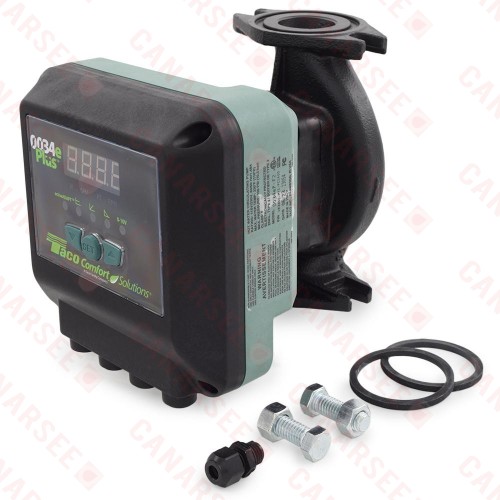

0034ePlus ECM High-Efficiency Circulator Pump, 115V/230V
Click Image for Gallery
Taco 0034e Plus cast iron model is a multi-mode, feature packed, variable speed circulator pump w/ a high-efficiency ECM permanent magnet, ideally suited for large residential and light commercial hydronic and radiant heating projects. A single model replaces the entire Taco '00 lineup from 009 to 0014 and is highly flexible.
Technical Specifications:
Features:
Technical Specifications:
- Casing: Cast Iron
- Type: ECM circulator pump with 5 modes - TacoAdapt (Self-adjusting, proportional pressure), Constant Pressure (w/ 5 settings), Proportional Pressure (w/ 5 settings), Fixed Speed (infinitely variable, w/ 1-100% range), or 0-10VDC (or PWM) external input.
- Connections: Flanged
- TacoAdapt mode: see chart or specs sheet for curves
- Constant Pressure mode: (5) settings with 30, 24, 18, 12 or 6ft of head
- Fixed Speed mode: 0-50 GPM, 1-34 ft of head (operates at selected fixed speed between 1% and 100%)
- Proportional Pressure mode: (5) settings, see chart of specs sheet
- 0-10V DC mode: see chart or specs sheet for curves
- Operating Temperature Range: 14°F - 230°F
- Max Operating Pressure: 150 psi
- Electrical Specs: 115/208/230V, 50/60 Hz, Single Phase, 120W max, 1.48 Amps max @ 115V or 0.70 Amps max @ 230V
- Hydraulic Institute Energy Rating: ER 154, CEI 0.41
- Fluids: Water or 50% Water/Glycol Solution
Features:
- High-performance, feature packed circulator with a variety of modes to fit any large residential oor light commercial project
- Can replace all Taco 009, 0010, 0011, 0012, 0013 & 0014 models
- Intuitive digital user interface with simple 3-button control
- High-efficiency ECM motor uses up to 85% less electricity
- Bio Barrier protects pump from system contaminants
- SureStart automatically frees locked rotor condition and self purges air from pump
- Nut-grabber feature on flanges for easier fit-up
- Dual electrical knockouts for easy wiring and removable quick-connect terminal strip
- Rotatable control cover simplifies installation
- Whisper-quiet operation
- Views: 546
-
- Model: 0034EP-F2
- MPN: 0034EP-F2
- Availability: Out Of Stock
- Usually ships: within 1 business day(s)
- $ 920.95
