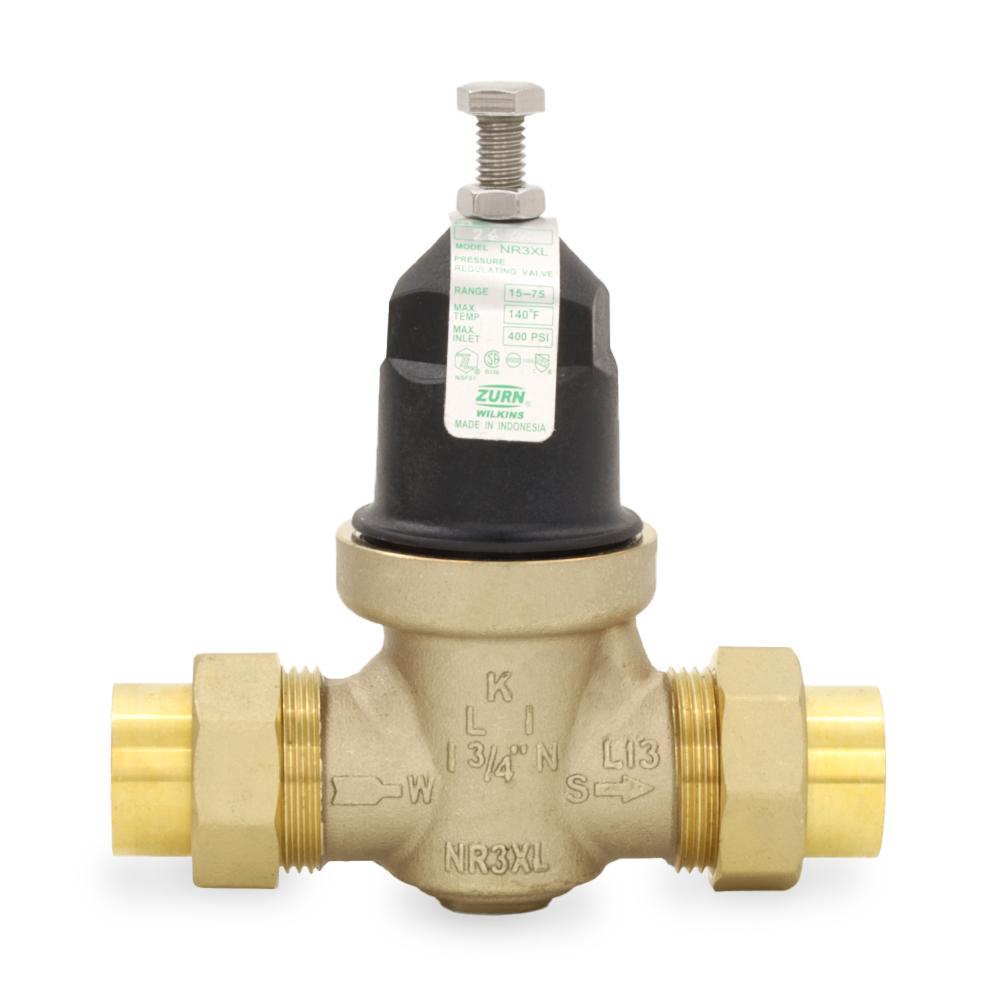

3/4" Pressure Reducing Valve w/ Double Union FNPT 15-75 psi (Lead-Free)

Click Image for Gallery

Description
Reviews (0)

Zurn (Wilkins) NR3XLDU Model is Residential Pressure Regulator. Features a double 3/4" union connection from both ends. Designed for installation on potable water lines to reduce high inlet pressure to a lower outlet pressure. The integral strainer makes this device most suitable for residential water systems that require frequent cleaning of sediment and debris. The direct acting integral by-pass design prevents buildup of excessive system pressure caused by thermal expansion. The balance piston design enables the regulator to react in a smooth and responsive manner to changes in system flow demand, while at the same time, providing protection from inlet pressure changes. Provides highest level of corrosion resistance.

Technical Specifications:

Sizes: 3/4" FNPT (Double Union)
Minimum Inlet Pressure = 80 PSI as per UPC Code
Maximum Working Water Pressure: 400 PSI
Maximum Working Water Temperature: 140°F
Reduced Pressure Range: 15 to 75 PSI
Factory Preset: 50 PSI
Cold Water Rated Temperature: 73.4°F @ 400 PSI.

Features:

ASSE Listed 1003
IAPMO Listed
CSA Certified
NSF Listed - Standard 61, Annex G (0.25% MAX. WEIGHTED AVERAGE LEAD CONTENT)
Certified to NSF/ANSI 372 by IAPMO R&T (0.25% MAX. WEIGHTED AVERAGE LEAD CONTENT).

Views: 13
Model: 34-NR3XLDU
MPN:
Availability: In Stock
Usually ships: within 1 business day(s)
