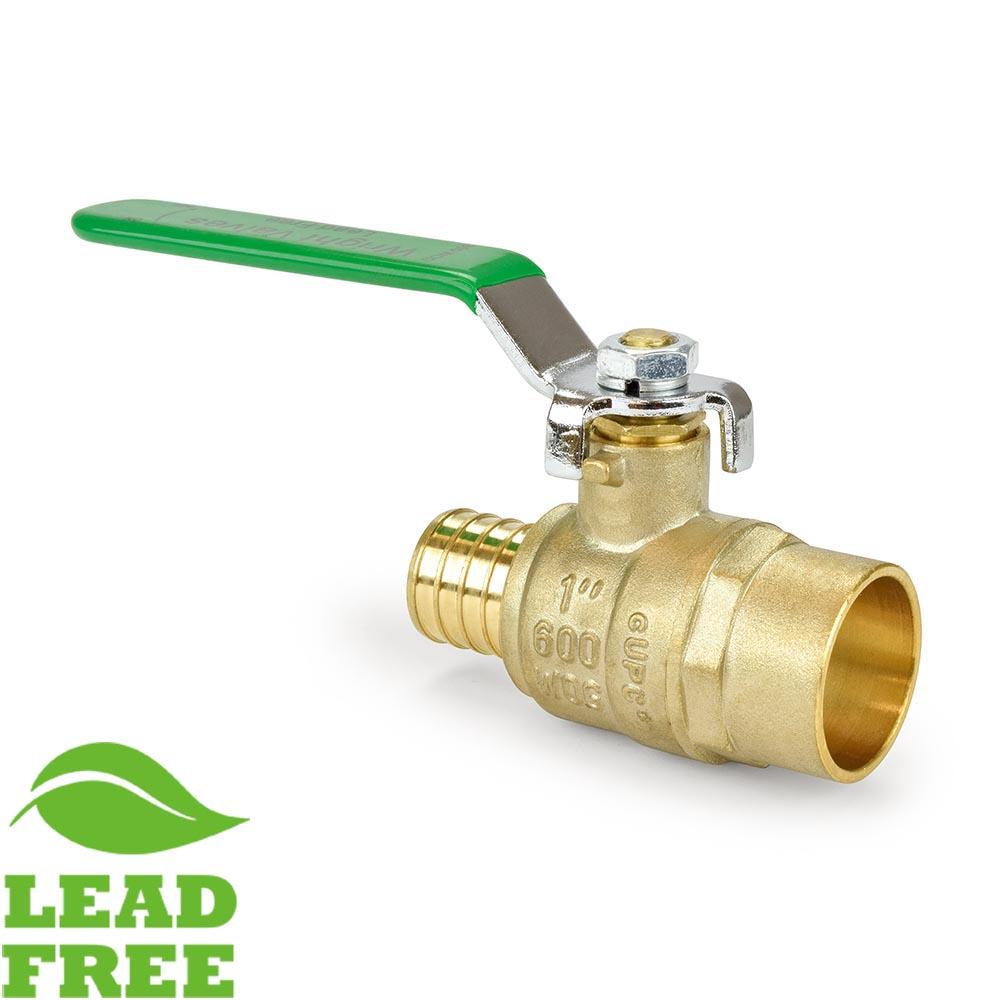

1” PEX x Sweat Brass Ball Valve, Full Port (Lead-Free)
Click Image for Gallery
The BV100CX-LF from Wright Valves is a 1” PEX x Sweat (Solder) Brass Ball Valve, Full Port (Lead-Free). PEX crimp style outlet (per ASTM F1807 standard), compatible with all types and brands of PEX (A, B, C), including Everhot, Watts, Zurn, Nibco, Viega, etc. Installed using crimp or clamp connection methods.
Note: sweat portion of the valve must be soldered first, followed by the PEX connection.
Technical Specifications:
- Connections: 1" PEX x 1" Sweat;
- Lead-free brass body, meets NSF/ANSI 372 & 61-G;
- Approvals: cUPC, cCSAus;
- 600 psi WOG rated;
- 150 psi working pressure;
- Full port design;
- Teflon (PTFE) seats;
- Packing nut;
- 1/4-turn steel handle.
| Product Specs | |
| Connections | 1" PEX x 1" Sweat |
| Features | Lead Free |
| Size1 | 1" |
| Type: | PEX x Sweat |
- Views: 9242
-
- Model: BV100CX-LF
- MPN: BV100CX-LF
- Availability: In Stock
- Usually ships: within 1 business day(s)
- $ 13.85
- 10 or more $ 12.45
