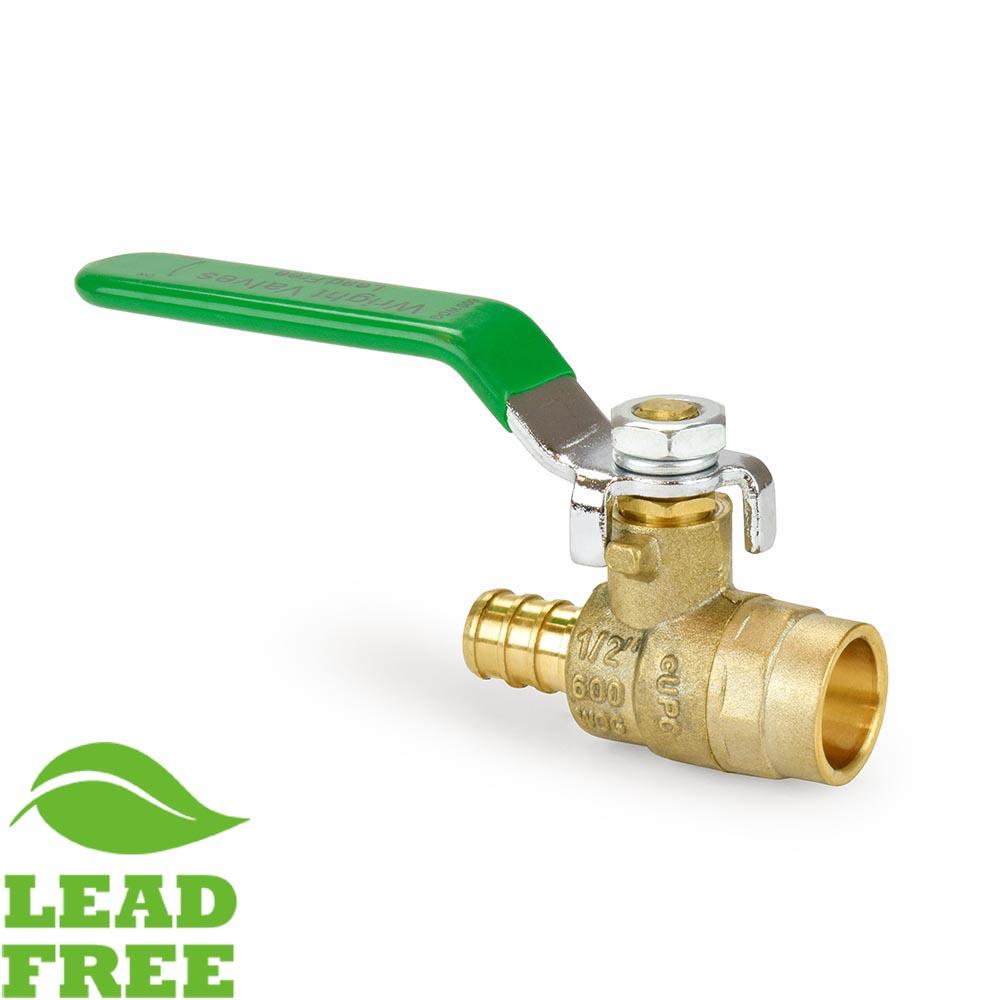

1/2” PEX x Sweat Brass Ball Valve, Full Port (Lead-Free)

1/2” PEX x Sweat Brass Ball Valve, Full Port (Lead-Free)

The BV012CX-LF from Wright Valves is a 1/2” PEX x Sweat (Solder) Brass Ball Valve, Full Port (Lead-Free). PEX crimp style outlet (per ASTM F1807 standard), compatible with all types and brands of PEX (A, B, C), including Everhot, Watts, Zurn, Nibco, Viega, etc. Installed using crimp or clamp connection methods.

Note: sweat portion of the valve must be soldered first, followed by the PEX connection.


Features:

  • Lead-Free brass body, meets NSF/ANSI 372 & 61-G;
  • Full port design;
  • Packing nut;
  • Teflon (PTFE) seats;
  • 1/4-turn steel handle;
  • Meets NSF/ANSI 372;
  • CSA listed for US and Canada;
  • cUPC certified;


Technical Specifications:

  • Inlet: 1/2" sweat (meets ANSI B16.18);
  • Outlet: 1/2" PEX (per ASTM F1807)
  • 600 psi non-shock WOG rated;
  • 150 psi working pressure;
  • Max. temperature: 200F;
Product Specs
600 psi non-shock WOG rated 200F
Features Lead Free
Inlet: 1/2" sweat (meets ANSI B16.18)
Outlet: 1/2" PEX (per ASTM F1807)
Type1 PEX x Sweat

Write a review

Please login or register to review
  • Views: 10049
  • 1/2” PEX x Sweat Brass Ball Valve, Full Port (Lead-Free) QR Code
    QR
  • Model: BV012CX-LF
  • MPN: BV012CX-LF
  • Availability: 296
  • $ 5.95
