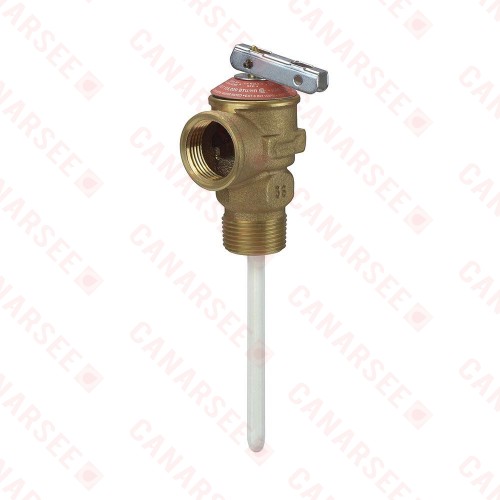

3/4” Pressure Relief Valve w/ 4” probe
Click Image for Gallery
The TP1100A-4C-150C from Zurn is a 3/4” Temperature & Pressure Relief Valve w/ 4” Probe. Designed for installation on water heating storage vessels to protect against over-temperature or excessive pressure. (Not for steam service)
This product does not meet the new low-lead criteria defined in Safe Drinking Water Act and cannot be used for potable water applications, including for drinking and cooking. This product can be used for non-potable water applications only.
Features:
- CSA Compliance to ANSI Z21.22/CSA 4.4
- Certified to ASME Section IV by National Board.
Technical Specifications:
- Inlet Connection: 3/4" MNPT
- Outlet Connection: 3/4" FNPT
- Probe Length: 4"
- Pressure Relief Setting: 150 PSI
- ASME Section IV: 500,000 BTU/HR.
| Product Specs | |
| ASME Section IV: | 500,000 BTU/HR. |
| Inlet Connection: | 3/4" MNPT |
| Outlet Connection: | 3/4" FNPT |
| Pressure Relief Setting: | 150 PSI |
| Probe Length: | 4" |
- Views: 6318
-
- Model: TP1100A-4C-150C
- MPN: TP1100A-4C-150C
- Availability: In Stock
- Usually ships: within 1 business day(s)
- $ 30.95
