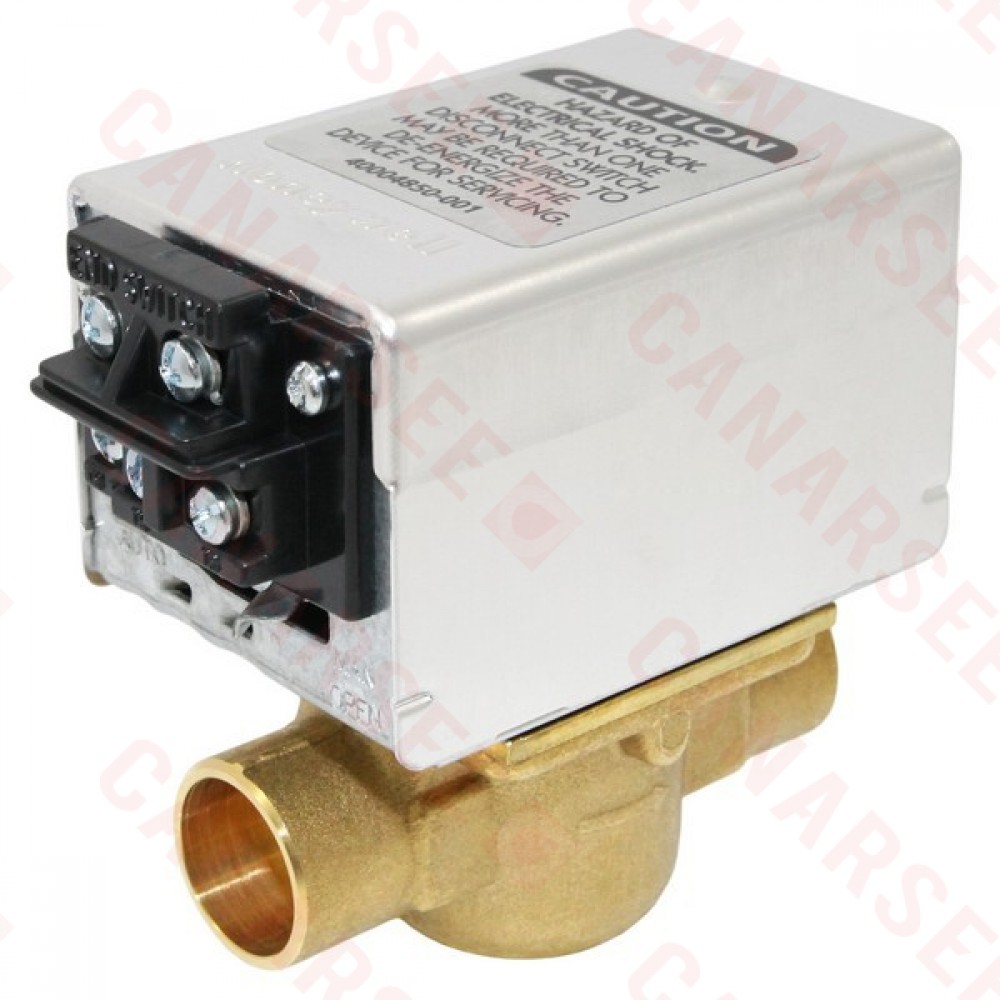

Honeywell V8043F1051 Two-way, Straight-through Zone Valve, 1" Sweat Connection

Click Image for Gallery

Two-way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water. Use this valve in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water. Valve designed for cycling (not constantly powered on) applications. Brass Body, Brass Seat, Stainless Steel Stem, Buna-N Plug / Ball / Disk, EPDM Rubber Packing

Product Specs
Amperage:	0.3
Application	Zoning
Body Pattern:	Straight-Through
Connection Type	Sweat
Depth (Inches):	2-3/8"
End Switch:	Yes
Flow Capacity (Cv):	3.5
Height	4"
Hertz:	59
Material1	Brass
Max Ambient Temp (°F):	125°F
Max Close-Off PSI:	20 psi
Max Pressure (PSI):	300
Max Temp.	200°F
Min Temp.	50°F
Position:	Normally Closed
Size1	1"
Temperature Range (F):	50°-200°F
Voltage	24v
Width	4-7/8"
Wiring:	Screw Terminal Block

Views: 8073
Model: V8043F1051
MPN: V8043F1051
Availability: Temporary Unavailable
Usually ships: 1
