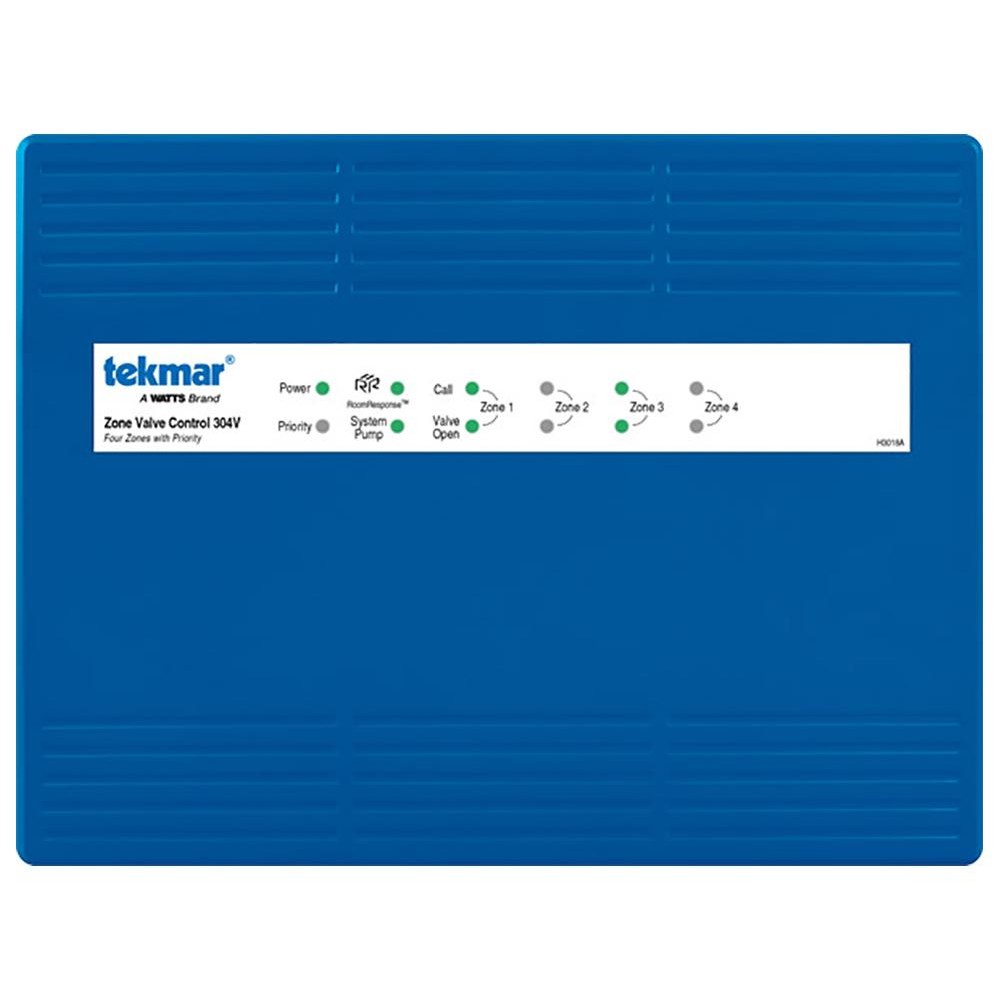

304V, 4-Zone Valve Control w/ Priority, Expandable

304V, 4-Zone Valve Control w/ Priority, Expandable
Zone Valve Control Four Zones with Priority
  • Zones: 4
  • Control: Microprocessor Control
  • Power supply: 115 VAC, 60 Hz, 11 A
  • Transformer Rating: 40 VA
  • Control load: 7 VA
  • Fuses: T5 250 V slow blow, two spare fuses included
  • Zone valve outputs: 24 VAC, 2 A max each, one transformer 33 VA, two transformer 73 VA
  • Zone valve end switch: 24 VAC
  • Pump relays: 230 VAC, 5 A, 1/3 HP
  • Boiler XX end switch: 24 VAC, 5 A
  • DHW end switch: 24 VAC, 5 A
  • Mod boiler output: 0-10 V 500 ohm min load impedance, 4-20 mA 1 k ohm max load impedance
  • Materials: ABS Plastic (Cover), Galvanized Steel (Base) NEMA type 1
  • Dimensions: 8-3/16" x 10-11/16" x 2-3/8"
  • Packaged weight: 5 lbs

3-year warranty

Write a review

Please login or register to review
  • Views: 2145
  • 304V, 4-Zone Valve Control w/ Priority, Expandable QR Code
    QR
  • Model: 304V
  • MPN:
  • Availability: 9
  • $ 147.95
