1” Sweat 3-Way Zone Valve

1” Sweat 3-Way Zone Valve
1” Sweat 3-Way Zone Valve QR Code
Views: 4590 Model: 562-5
UPC: 687752164176

MPN: 562-5

Weight:2.00 lb

Dimensions (L x W x H ): 6.00 x 4.50 x 2.50

Usually ships: Upon availability
Qty: Add to Cart


Have any questions?
Contact us at 1-800-246-9552

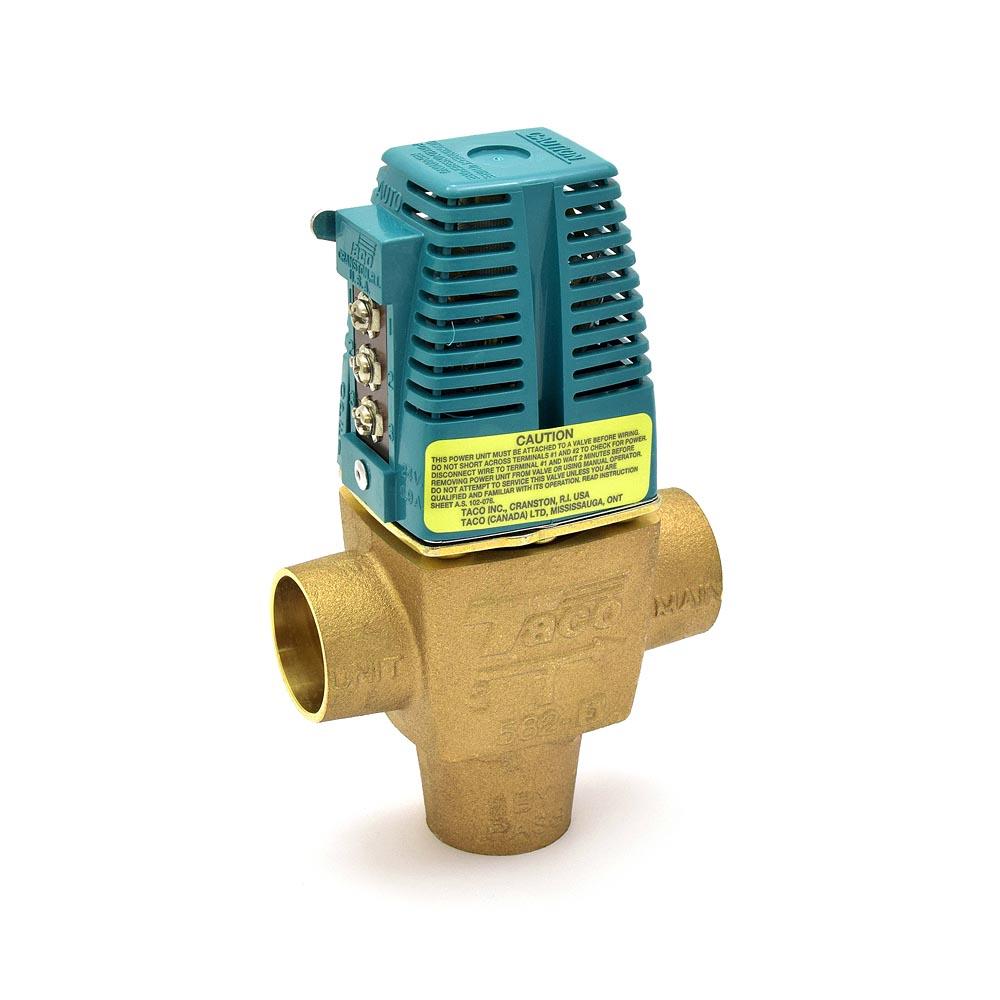

The 562-5 from Taco is a 1” Sweat 3-Way Zone Valve. It's a bypass version of the 572-2 zone valve. Typically used to control the flow to a fan coil or terminal heating unit.


  • Proven Performance & Dependability – Millions in Use. Taco Zone Valves are the Industry’s Top Choice for Consistent Performance.
  • Silent Operation.
  • Replaceable Twist Off PowerHead allows to service the valve without removing it.
  • Unique Construction Ensures Positive Shut-off and Leak Proof Operation.
  • Easy to Install.
  • Manual Open (Bypass) Lever.
  • 24 VAC Powered with Isolated End Switch.
  • 100% Factory Tested.
  • Made in the USA.
  • 3 Year Warranty for PowerHead, 5 Years for the Valve Body.

Technical Specifications:

  • Connections: 1" Sweat (CxCxC)
  • Max pressure rating: 125 psi
  • Max operating temperature: 240F
  • Min operating temperature: 40F
  • Flow range (GPM): 6 - 10
  • Cv: 7.0
  • Voltage: 24V
  • Amps: 0.9
Product Specs
Size: 1"
