Taco 3/4” Union Sweat Mixing Valve w/ Temperature Gauge (Lead-Free), 85F-175F

Taco 3/4” Union Sweat Mixing Valve w/ Temperature Gauge (Lead-Free), 85F-175F

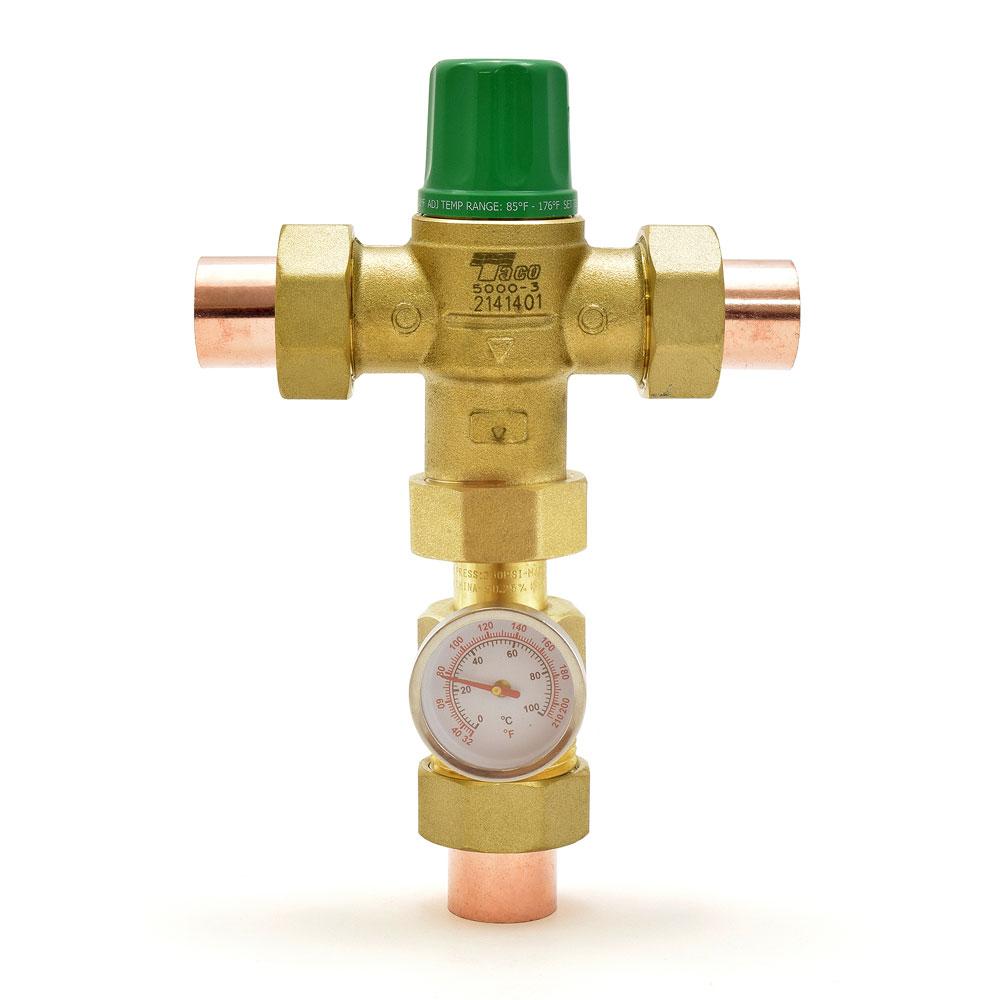

The 5003-C3-G from Taco is a 3/4” Union Sweat Mixing Valve w/ Temperature Gauge (Lead-Free), 85F-175F. It allows to mix domestic hot water at a temperature high enough to kill harmful bacterial but deliver it at a safe and comfortable temperature of 120°F or less. Temperature gauge to display output water temperature included.


Features:

  • Lead-Free Compliant (≤25% Lead);
  • Temperature Gauge Included;
  • Ideal for Domestic Water Distribution Points;
  • Suitable for use in Potable Water;
  • Delivers Stable Mixed Water Temperature.


Technical Specifications:

  • Connection: 3/4" Union Sweat;
  • Maximum Flow: 20 GPM (76 L/Min);
  • Minimum Flow: 1 GPM (3.8 L/Min);
  • Hot Supply Temperature: 120-180°F (49-82°C);
  • Cold Supply Temperature: 39-80°F (5-27°C);
  • Maximum Inlet Pressure: 230 psi (15.85 Bar);
  • Maximum Variation in Supply Pressure: 20%;
  • Minumum Temperature Differention Between Hot Supply and Mixed: : 27°F (15 °C);
  • Outled Temperature Range: 85-175°F (29-80°C);
  • Factory Set To (115-120°F (41-45°C);
  • Accuracy of Outlet Temperature: ±3°F.
Product Specs
Cold Supply Temperature: 39-80°F (5-27°C)
Connection 3/4" Union Sweat
Factory Set To (115-120°F (41-45°C) ±3°F.
Features Lead Free
Hot Supply Temperature: 120-180°F (49-82°C)
Max Inlet Pressure 230 psi (15.85 Bar)
Maximum Flow: 20 GPM (76 L/Min)
Maximum Variation in Supply Pressure: 20%
Minimum Flow: 1 GPM (3.8 L/Min)
Minumum Temperature Differention Between Hot Supply and Mixed: : 27°F (15 °C)
Outled Temperature Range: 85-175°F (29-80°C)

Write a review

Please login or register to review
  • Views: 6074
  • Taco 3/4” Union Sweat Mixing Valve w/ Temperature Gauge (Lead-Free), 85F-175F QR Code
    QR
  • Model: 5003-C3-G
  • MPN: 5003-C3-G
  • Availability: 34
  • $ 131.95

ORDERS OVER $99 SHIP FREE

Have any questions?
Contact us at 1-800-246-9552

Tags: Mixing Valves, Valves, Heating Valves, Plumbing Supply, Heating Supply, Residential Plumbing
