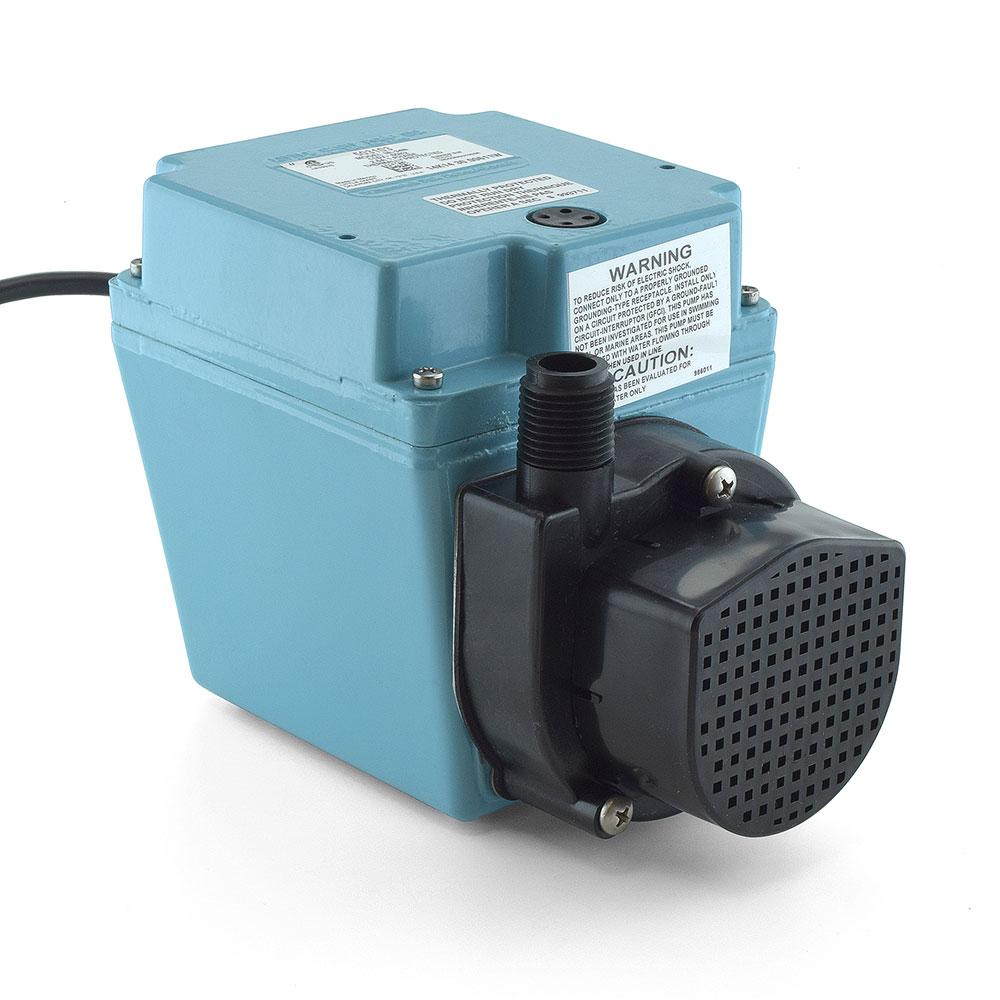

Manual Oil-Filled Small Submersible Pump w/ 6' cord, 1/15HP, 115V

Click Image for Gallery

The 503103 from Little Giant is a Manual Oil-Filled Small Submersible Pump w/ 6ft cord, 1/15HP, 115V. This model is best used in statuary fountains, water displays, air conditioners, machine tool coolants and more. Not recommended for aquariums, swimming pools and fuel oil transfer.

Features:

Operates submersed or in-line;
Epoxy-coated aluminum housing;
1/2" FNPT inlet with snap-off screen for easy cleaning;
1/2" MNPT outlet (accepts 3/4" I.D. tubing);
Comes with built-in thermal overload protection.

Technical Specifications:

HorsePower: 1/15HP;
Max Flow: 500 GPH @ 1' of Head;
Cord Length: 6';
Shut Off @ 17.3ft of head;
Voltage: 115V;
Hertz: 60Hz;
Amps: 3.2A;
Watts: 200W;
Weight: 8 lbs;
Dimensions (H x W x L): 5.5" x 4.5" x 7";
Certification: UL.

Warranty:

1 year manufacturer's warranty.

Product Specs
Amperage:	3.2
Application	Recirculation
Cord Length:	6'
Discharge:	1/2" MNPT
Flow at 1 FT Head:	500 GPH
Hertz:	60
Horse Power	1/15
Shutoff Head (ft.):	17.3'
Type:	Manual
Voltage	115v
Wattage	200

Views: 10979
Model: 503103
MPN: 503103
Availability: Discontinued
Usually ships: 1
