3ft 3/4" (E-75) Baseboard Element Replacement for Fine/Line 30 or Base/Line 2000
Click Image for Gallery

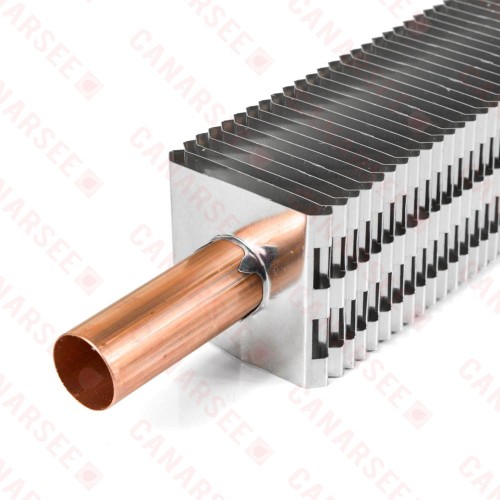

3ft long replacement heating element for Fine/Line 30 and Base/Line 2000 Slant/Fin baseboard. Comes with (2) plastic noise-supressing cradles pre-installed.
NOTE: to prevent bending of the fins, do not pull element out from the narrow end of the box. Instead, open both ends of the box and carefully cut it open length-wise along the very edge.
Technical Specifications:
Features:
NOTE: to prevent bending of the fins, do not pull element out from the narrow end of the box. Instead, open both ends of the box and carefully cut it open length-wise along the very edge.
Technical Specifications:
- Total length: 36"
- Active finned length: 5-6" less than total length
- Connections: 3/4" copper sweat
- Aluminum finns: 2-5/16" x 2-1/8", spaced 55 per linear ft
- Plastic cradles included (pre-installed): 2
- BTU''s: (see specs file) varies by supply temperature and flow rate - averages ~600 BTUs per linear ft (180°F temperature @ 4GPM)
Features:
- Outputs ~600 BTU''s per linear ft of length (180°F standard, @ 4 GPM)
- Individually boxed to prevent scratching & damage on the jobsite
- Comes with (2) plastic expansion cradles
- Made in the USA
| Product Specs | |
| Length (Feet) | 3 |
| Product Type | Heating Element |
