Ox Box with TurboVent Air Admittance Valve, incl. 2" combo adapter

Ox Box with TurboVent Air Admittance Valve, incl. 2" combo adapter
Ox Box with TurboVent Air Admittance Valve, incl. 2" combo adapter QR Code
QR
Views: 4164 Model: 696-12P

MPN: 696-12P

Weight:12.00 lb

Dimensions (L x W x H ): 3.75 x 7.50 x 6.00

Usually ships: Upon availability
$21.95
Qty: Add to Cart

ORDERS OVER $99 SHIP FREE

Have any questions?
Contact us at 1-800-246-9552

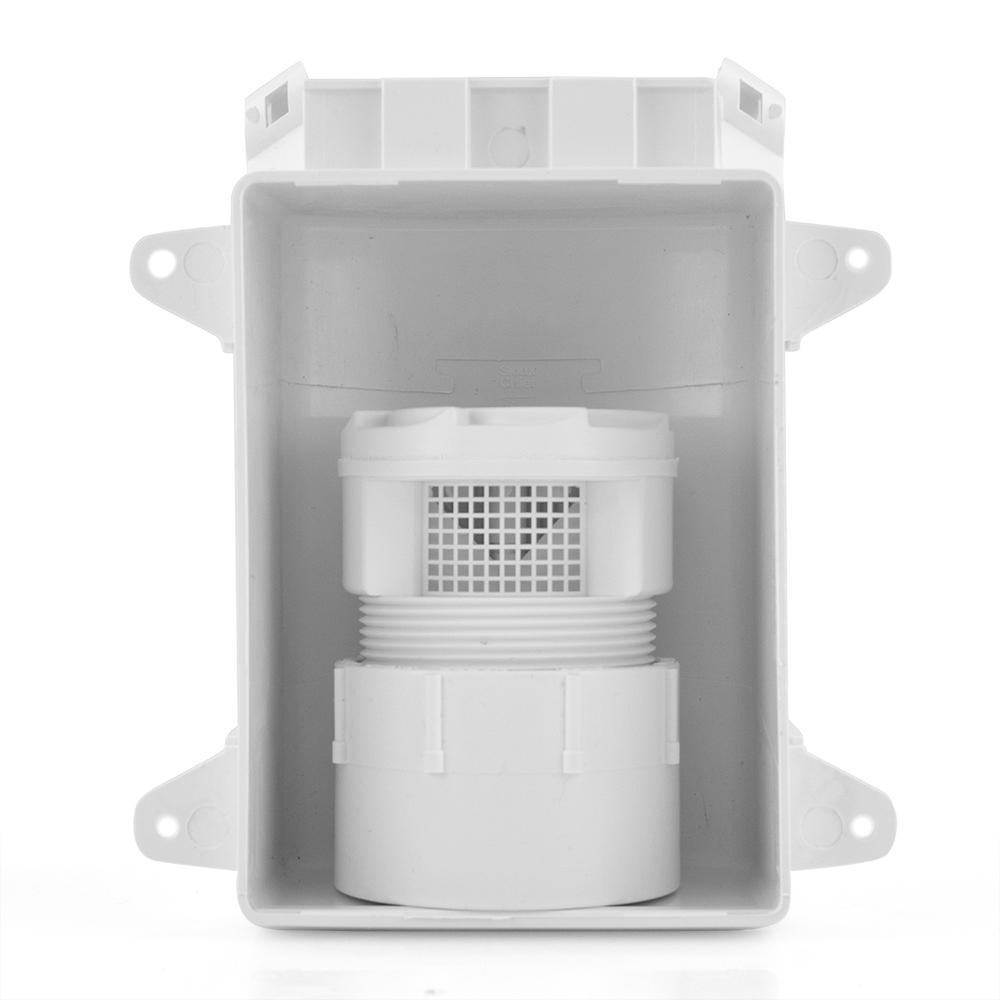

The 696-12P from Sioux Chief is a OxBox w/ Turbovent Air Admittance Valve, includes 2” combo adapter.


Features:

  • Includes: Access box, TurboVent valve (250-122P model), 2" PVC thread x hub adapter, box frame and louvered insert;
  • High-impact ABS access box body for strong and durable installation.


Technical Specifications:

  • Box inner width: 4";
  • Box inner height: 5-1/2";
  • Box overall depth: 3-1/2";
  • Frame width: 5-3/4";
  • Frame height: 7-1/4";
  • Pipe access hole diameter: 2-3/8";
  • Overall valve width: 2-11/16";
  • Overall valve height: 2-1/8";
  • Thread size: 2" NPT;
  • Adapter height: 1-3/4";
  • Pipe access hole diameter: 2-3/8";
  • Valve material: ABS;
  • Adapter material: PVC;
  • DFU Rating Stack: 24;
  • DFU Rating Branch: 160;
  • Adapter standard: ASTM D2665;
  • Valve standards: ASSE 1050 and ASSE 1051;
  • Listed by: IAPMO and UPC;
  • Conforms to: IPC 2009, IRC 2009, UPC 301.2.
Product Specs
Adapter height: 1-3/4"
Adapter material: PVC
Adapter standard: ASTM D2665
Box inner height: 5-1/2"
Box inner width: 4"
Box overall depth: 3-1/2"
Comforms to: IPC 2009, IRC 2009, UPC 301.2.
DFU Rating Branch: 160
DFU Rating Stack: 24
Frame height: 7-1/4"
Frame width: 5-3/4"
Listed by: IAPMO and UPC
Overall valve height: 2-1/8"
Overall valve width: 2-11/16"
Pipe access hole diameter: 2-3/8"
Thread Size: 2" NPT
Valve material: ABS
Valve standards: ASSE 1050 and ASSE 1051
