3" Spigot, Total Knockout Closet Flange (TKO) w/ Swivel St. Steel Ring, SCH40 PVC

3" Spigot, Total Knockout Closet Flange (TKO) w/ Swivel St. Steel Ring, SCH40 PVC

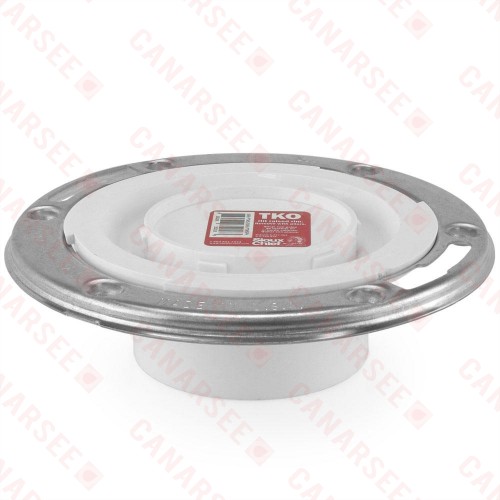

The 886-PTMS from Sioux Chief is a 3” Spigot, Total Knockout Closet Flange (TKO) w/ Swivel Stainless Steel Ring, SCH40 PVC. It has a 3" spigot connection (same size as 3" PVC pipe), which allows it to be installed inside a standard 3" PVC fitting. Stainless steel swivel ring with bolt slots/tabs offers added flexibility during toilet bowl installation.


Features:

  • TKO cap holds up to 5 floors (22PSI) test pressure;
  • Patented design prevents knockout from breaking apart and falling down drain line;
  • UPC listed;
  • Smooth inner walls without obstructions or ledges help prevent clogs;
  • Made in the USA.


Technical Specifications:

  • Connection: 3" Spigot (can be inserted/glued into 3" Sch. 40 or 80 PVC fitting);
  • Material: PVC body and 18-gauge, 430 corrosion resistant stainless steel swivel flange;
  • Installation type: Solvent Weld (PVC glue);
  • For installation with: PVC fittings;
  • Overall Height: 2";
  • Flange Outer Diameter: 7";
  • Knockout diameter: 3";
  • Flange thickness (height): 1/4";
  • Screw center: 6".
Product Specs
Flange Outer Diameter: 7"
Flange thickness (height): 1/4"
For installation with: PVC fittings
Installation Type: Solvent Weld (PVC glue)
Knockout diameter: 3"
Overall height: 2"
Screw Center: 6".
