Square Tile-in PVC Shower Pan Drain w/ 4" x 4" St. Steel Tile Insert Grate, 2" Hub
Click Image for Gallery

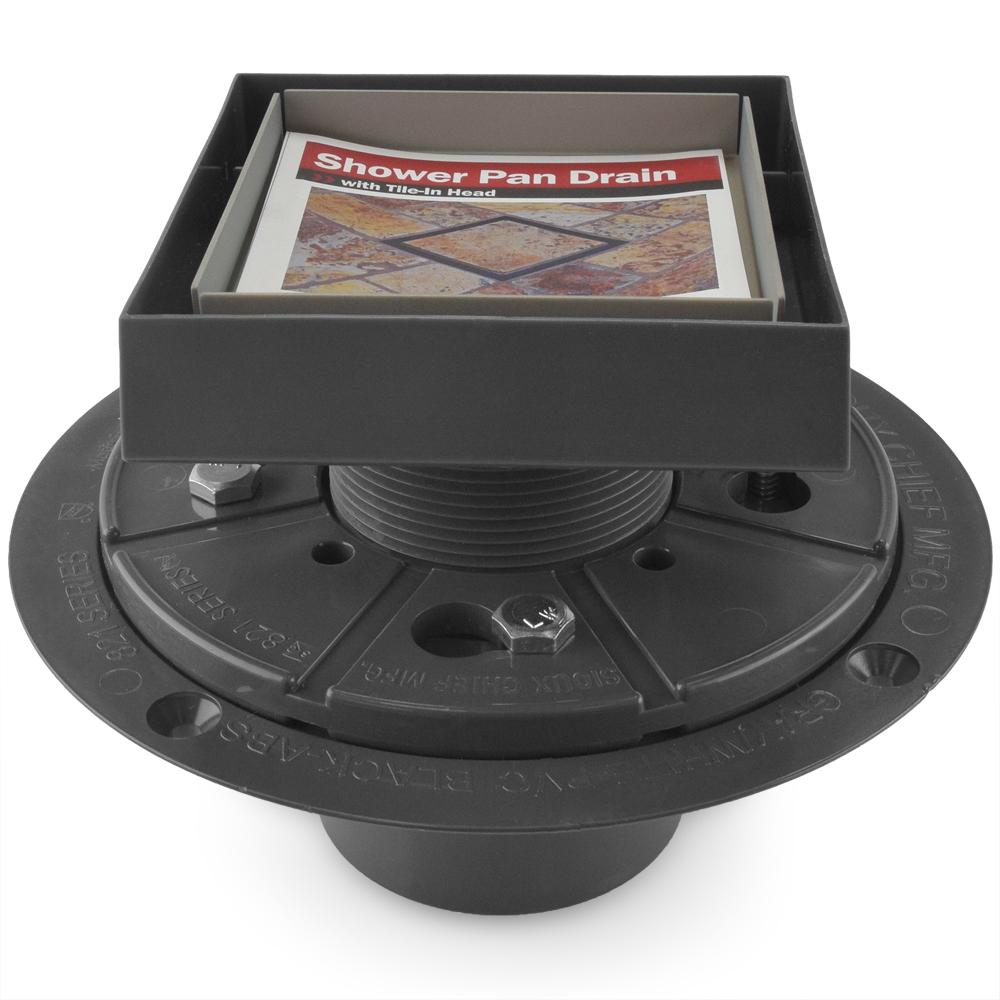

The 821-T2PT4A from Sioux Chief is a Square Tile-in PVC Shower Pan Drain w/ 4” x 4” Stainless Steel Tile Insert grate, 2” Hub.
Features:
- Modern design creates a seamless view of the tile floor - water simply "disappears" into the drainage slot;
- Works with any decor;
- Includes free Double Duty test plug for DWV pressure test and shower pan water test. Holds 5 lb. air or water test;
- Plug can also be used to prevent debris from falling down the drain during installation;
- Beveled drain body and mounting holes for easy subfloor installation;
- cUPC Listed;
- Designed in accordance to ASME A112.18.2-2005 / CSA B125.2-05;
- Made in the USA.
Technical Specifications:
- Connection: 2" Hub (fits over 2" Sch. 40 or 80 PVC pipe) or 3" Inside Fit (fits inside 3" SCH40 PVC pipe);
- Strainer load ratings: 300 lbs;
- Strainer flow capacity: 5 GPM;
- Overall height: 3-15/16" - 5-15/16" (adjustable for up to 2" height);
- Drain body height: 2-5/8";
- Floor flange diameter: 6-5/8";
- Base adapter material: PVC;
- Head material: Stainless steel;
- Head size (L x W): 4" x 4";
- Head shape: Square;
- Head adapter material: ABS;
- Head adapter connection: 2" MIP.
Product Specs | |
Base adapter material: | PVC |
Drain body height: | 2-5/8" |
Floor flange diameter: | 6-5/8" |
Head adapter connection: | 2" MIP. |
Head adapter material: | ABS |
Head material: | Stainless steel |
Head shape: | Square |
Head size (L x W): | 4" x 4" |
Strainer flow capacity: | 5 GPM |
Strainer load ratings: | 300 lbs |
