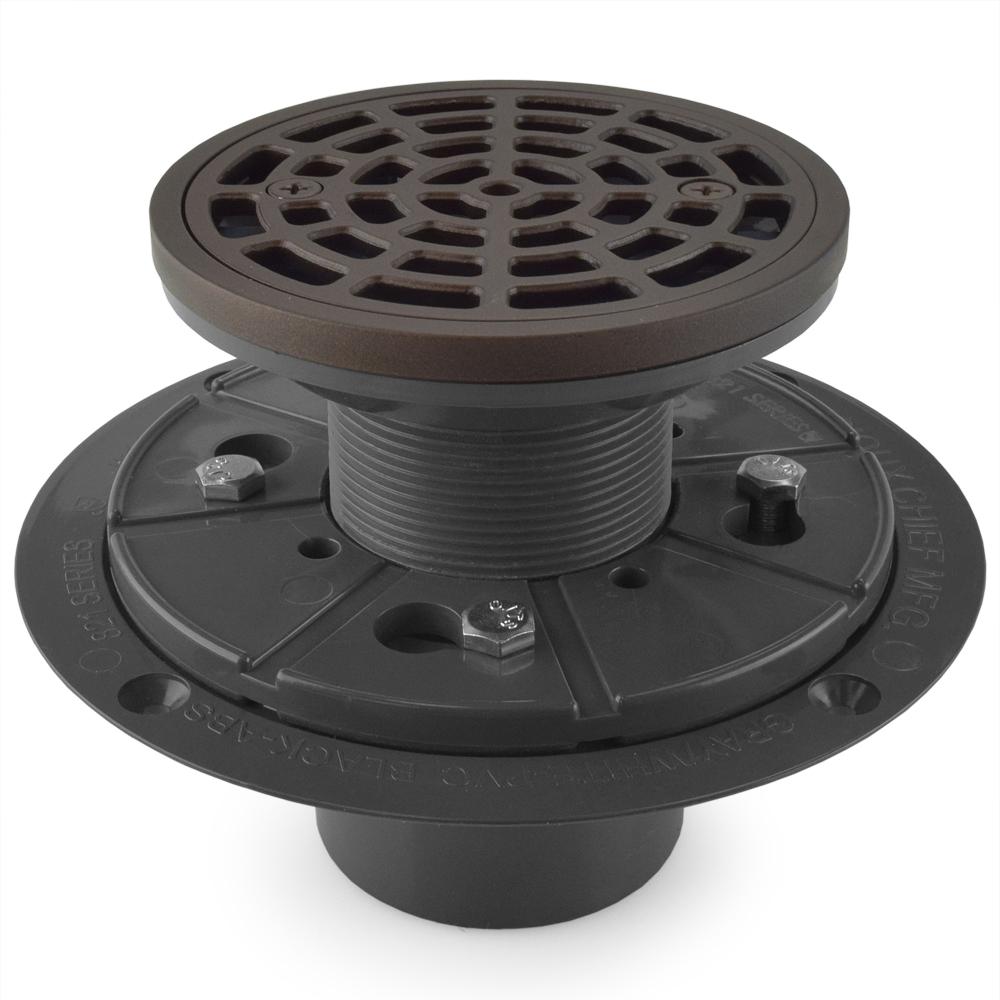

Round Tile-in PVC Shower Pan Drain w/ Screw-on Oil Rubbed Bronze Strainer & Ring, 2" Hub x 3" Inside Fit

Click Image for Gallery

The 821-T200PRBR from Sioux Chief is a Round Tile-in PVC Shower Pan Drain w/ Screw-on Oil Rubbed Bronze Strainer & Ring, 2” Hub x 3” Inside fit.

Features:

Machine screws and threaded brass insert in drain body and head adapter;
Drain head accepts both snap-in and screw-on types strainers, whether solid cast metal or stamped steel;
Durable, solid cast metal strainer and rim in high-end finish;
Includes free Double Duty test plug for DWV pressure test and shower pan water test. Holds 5 lb. air or water test;
Plug can also be used to prevent debris from falling down the drain during installation;
Beveled drain body and mounting holes for easy subfloor installation;
No blow-up balls, glue-in wafers or mechanical plugs needed;
Designed in accordance to ASME A112.18.2-2005 / CSA B125.2-05;
cUPC Listed;
Made in the USA.

Technical Specifications:

Connection: 2" Hub (fits over 2" Sch. 40 or 80 PVC pipe) or 3" Inside Fit (fits inside 3" SCH40 PVC pipe);
Strainer load ratings: 1000 lbs;
Strainer flow capacity: 9.7 GPM;
Overall height: 3-15/16" - 5-15/16" (adjustable for up to 2" height);
Drain body height: 2-5/8";
Floor flange diameter: 6-5/8";
Base adapter material: PVC;
Strainer material: Cast metal;
Strainer finish: Oil-rubber bronze;
Strainer shape: Round;
Strainer thickness: 3/16";
Strainer diameter (without rim): 4";
Strainer type: Screw-on;
Screw center: 2-3/4";
Rim width: 1/4";
Rim material: Cast metal;
Head adapter material: ABS;
Head adapter connection: 2" MIP.
