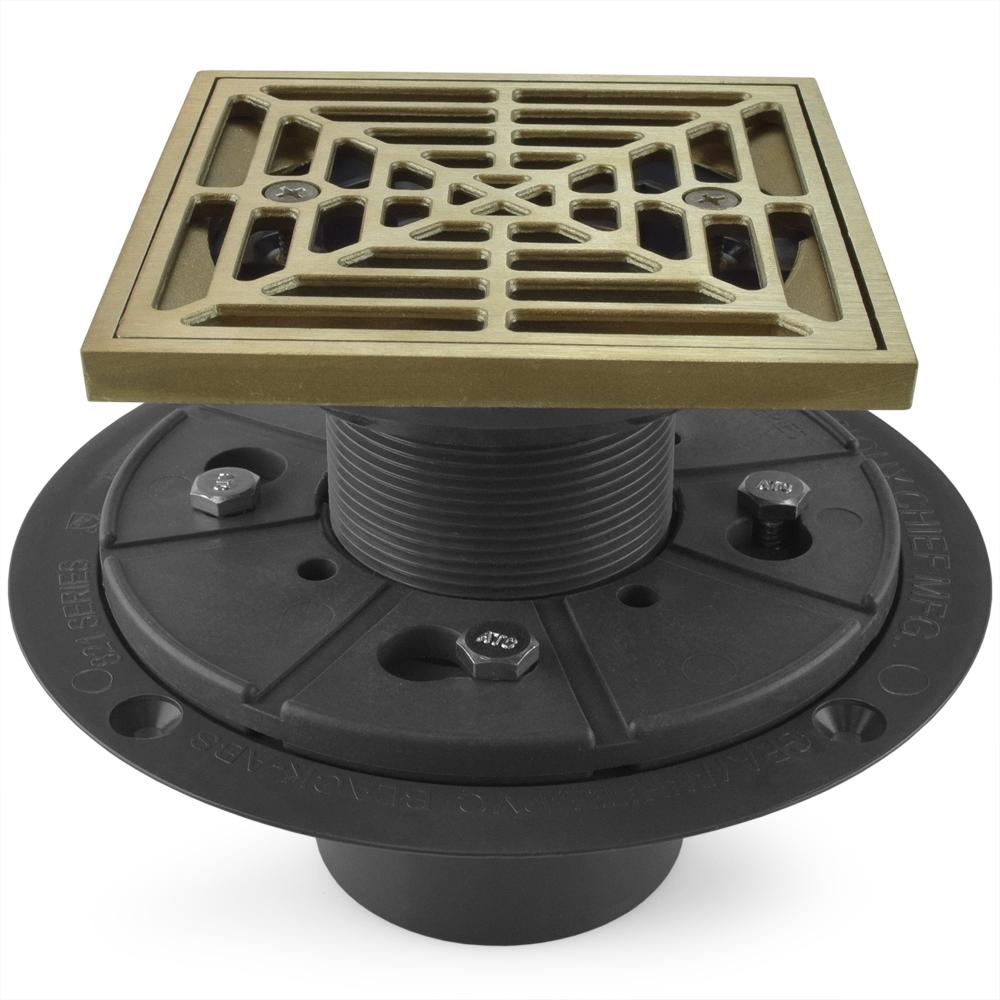

Square Tile-in PVC Shower Pan Drain w/ Screw-on Nickel Bronze Strainer & Ring, 2" Hub x 3" Inside Fit

Square Tile-in PVC Shower Pan Drain w/ Screw-on Nickel Bronze Strainer & Ring, 2" Hub x 3" Inside Fit
Views: 2184 Product Code: 821-T200PNQ

MPN: 821-T200PNQ

Weight:26.60 lb

Dimensions (L x W x H ): 6.50 x 6.50 x 4.00

Usually ships: Upon availability
Qty: Add to Cart


Have any questions?
Contact us at 1-800-246-9552



  • Machine screws and threaded brass insert in drain body and head adapter;
  • Drain head accepts both snap-in and screw-on types strainers, whether solid cast metal or stamped steel;
  • Durable, solid cast metal strainer and rim in high-end finish;
  • Includes free Double Duty test plug for DWV pressure test and shower pan water test. Holds 5 lb. air or water test;
  • Plug can also be used to prevent debris from falling down the drain during installation;
  • Beveled drain body and mounting holes for easy subfloor installation;
  • No blow-up balls, glue-in wafers or mechanical plugs needed;
  • Designed in accordance to ASME A112.18.2-2005 / CSA B125.2-05;
  • cUPC Listed;
  • Made in the USA.

Technical Specifications:

  • Connection: 2" Hub (fits over 2" Sch. 40 or 80 PVC pipe) or 3" Inside Fit (fits inside 3" SCH40 PVC pipe);
  • Strainer load ratings: 1000 lbs;
  • Strainer flow capacity: 16.4 GPM;
  • Overall height: 3-15/16" - 5-15/16" (adjustable for up to 2" height);
  • Drain body height: 2-5/8";
  • Floor flange diameter: 6-5/8";
  • Base adapter material: PVC;
  • Strainer material: Cast metal;
  • Strainer finish: Nickel bronze;
  • Strainer shape: Square;
  • Strainer thickness: 3/16";
  • Strainer diameter (without rim): 4";
  • Strainer type: Screw-on;
  • Screw center: 2-3/4";
  • Rim width: 1/4";
  • Rim material: Cast metal;
  • Head adapter material: ABS;
  • Head adapter connection: 2" MIP.
Product Specs
Base adapter material:PVC
Drain body height:2-5/8"
Floor flange diameter:6-5/8"
Head adapter connection:2" MIP.
Head adapter material:ABS
Rim material:Cast metal
Rim width:1/4"
Screw Center:2-3/4"
Strainer diameter (without rim):4"
Strainer finish:Nickel bronze
Strainer flow capacity:16.4 GPM
Strainer load ratings:1000 lbs
Strainer material:Cast metal
Strainer shape:Square
Strainer thickness:3/16"
Strainer type:Screw-on
