9 Branch Stainless Steel PEX Heating Manifold w/1/2” PEX adapters

9 Branch Stainless Steel PEX Heating Manifold w/1/2” PEX adapters

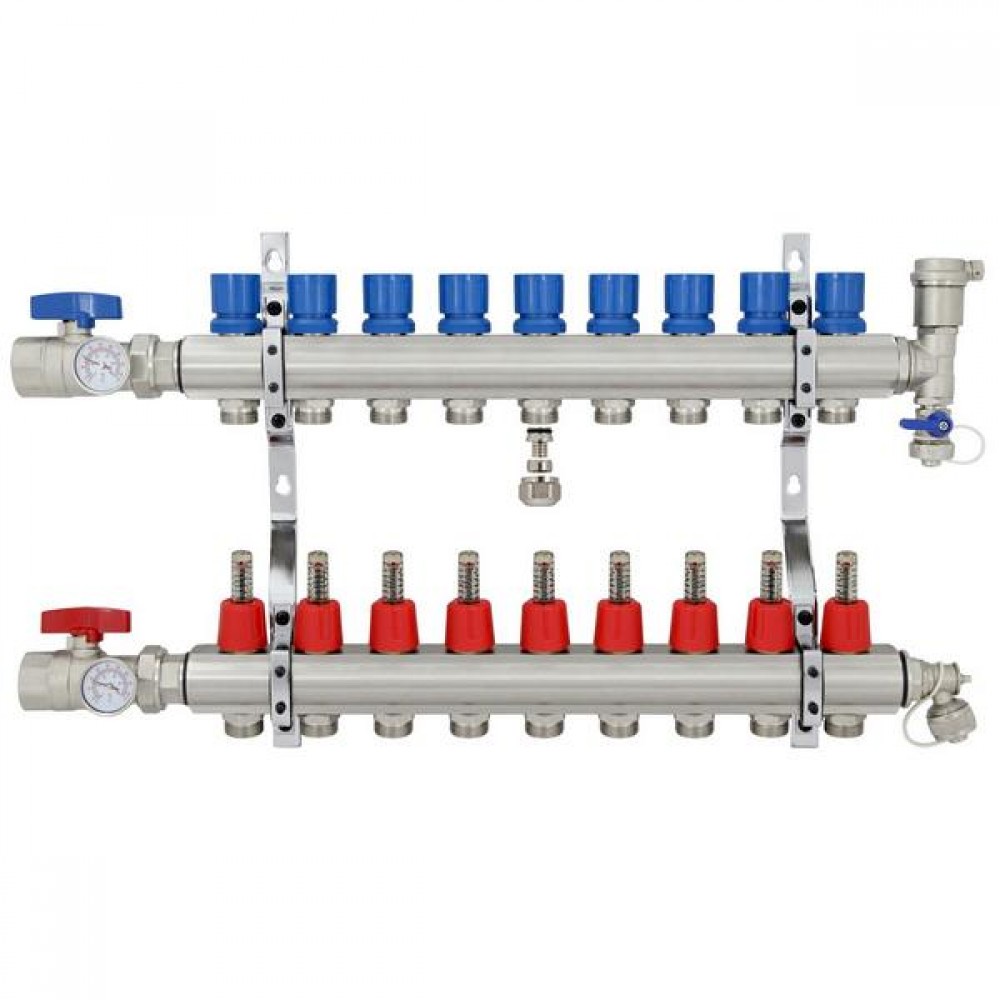

The BSM009 from Rifeng is a 9-branch Stainless Steel PEX Heating Manifold with 1/2” PEX adapters. This item is designed to control the flow of water in individual zones of multiple radiant heating zone systems. It can control an area of up to 2200 sq. ft. This item comes equipped with supply and return sides, containing adapters for 1/2” PEX tubing, flow meters, balancing valves, and outlets.

Includes:
(1) Supply side stainless steel PEX manifold with (9) adjustable flow meters (indicators) and (9) PEX tubing outlets.

(1) Return side stainless steel PEX manifold with (9) manual balancing valves and (9) PEX tubing outlets.

(2) 1" IPS Shut-off ball valves (1/4-turn) - one for each manifold (blue handle for return manifold and red handle for supply).

(2) Temperature gauges on both manifolds to monitor supply and return water temperatures.

(1) Float-type air vent to eliminate air from the system - on return side (air vent cap included for pressure testing purposes).

(2) Drain valves with 3/4" garden hose connection and a cap.

(18) Compression-style adapters for 1/2" PEX tubing.

(2) Wall mounting brackets


Technical Specifications:

  • Total number of PEX outlets: 18 (9 on supply and 9 on return manifold);
  • Distance ON (On Center) between outlets: 2";
  • Overall height when installed: 15"
  • Overall width when installed (with shut-off valves): 26"
  • Distance between supply and return manifolds: 8.25" OC.
  • Compatible with all types and brands of PEX tubing (Bow, Viega, Watts, Zurn, Everhot, Nibco, etc.)
Product Specs
Product Type Radiant Heat Manifolds
Zones 9

Write a review

Please login or register to review
  • Views: 11118
  • 9 Branch Stainless Steel PEX Heating Manifold w/1/2” PEX adapters QR Code
    QR
  • Model: BSM009
  • MPN: BSM009
  • Availability: 1
  • $ 370.95
