Automatic Submersible Utility/Sump Pump w/ Piggyback Diaphragm Switch, 10' cord, 1/6HP, 115V

Click Image for Gallery

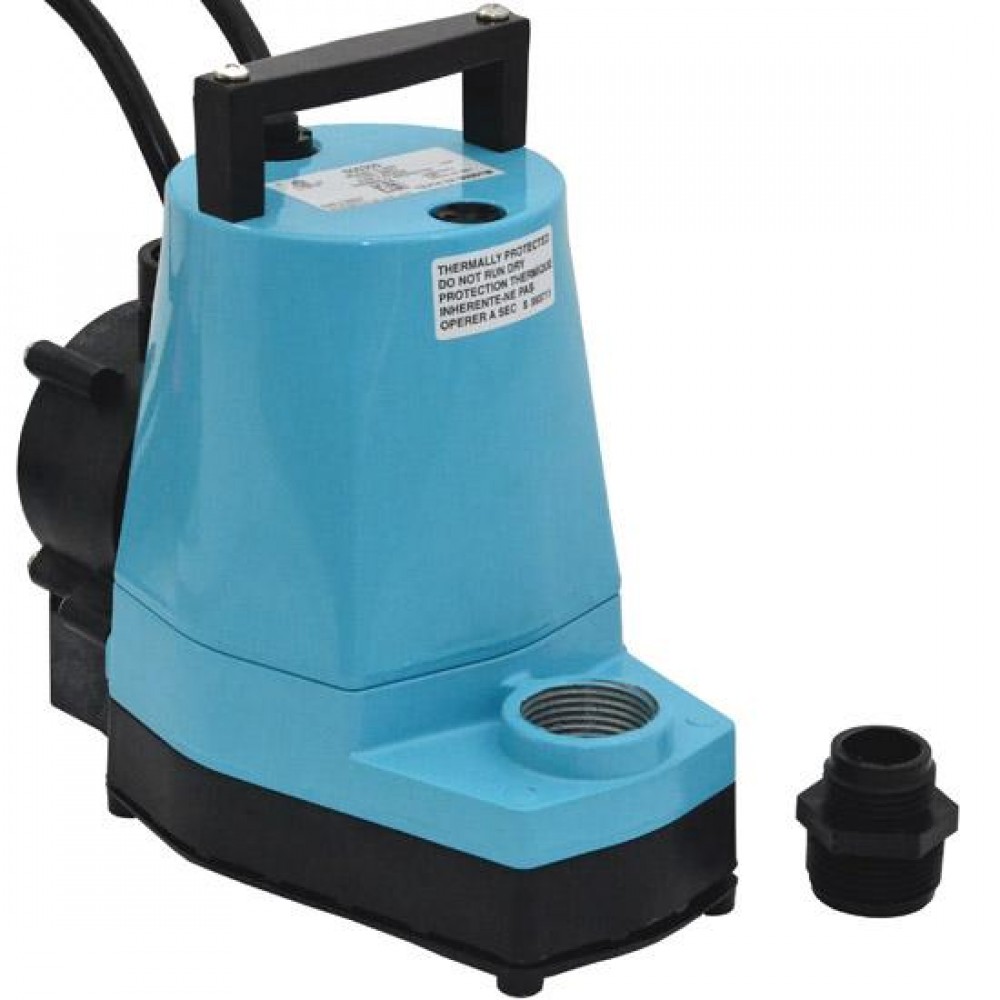

The 505300 from Little Giant is an Automatic Submersible Utility/Sump Pump w/ Piggyback Diaphragm Switch, 1/6HP, 10' cord, 115V. Little Giant 5-ASP model 505300 is capable of pumping water down to 1/8" in "manual" operating mode, while in "automatic" mode, a diaphragm pressure switch works with "on" level at 6" to 9" and "off" levels at 1" to 4" water level.

Little Giant 5-ASP models are capable of handling up to 1200 Gallons per hour at 1" ft of head pressure drop and feature a 1" FNPT discharge with an optional 3/4" garden hose adapter (included), as well as a screened inlet for easy cleaning and maintenance of the pump. 5-ASP series utility pumps have an epoxy coated cast aluminum housing.

Head (ft) Flow (GPH) Head (m) Flow (LPH)

1 1200 0.3 4542.5

3 1170 0.9 4428.9

5 1100 1.5 4164.0

10 1000 3.0 3785.4

15 840 4.6 3179.7

Applications:

Residential
Commercial
Industrial
De-watering
Fluid transfer

Features:

1/6 HP shaded pole motor with overload protection
Designed for continuous duty
Manual Mode: Pumps down to water level of 1/8"
Automatic Mode: "On" level at 6" to 9" and "Off" level at 1" to 4"
Includes a 3/4" garden hose adapter
Removable inlet screen for easy cleaning
Epoxy coated cast aluminum housing
Viton shaft seal

Technical Specifications:

Model: 5-ASP
HorsePower: 1/6 HP
Max Flow: 1200 GPH @ 1' of Head
Cord Length: 10ft
Switch: Automatic, Piggyback Diaphragm type
Shut Off @ 26.3ft of head
Voltage: 115V
Hertz: 60 Hz
Amps: 5A
Watts: 380W
Weight: 9 lbs
Dimensions (H x W x L): 7.75" x 4.31" x 7.7"
Certification: UL/CSA

Warranty:

1 year manufacturer's warranty.

Product Specs
Amperage:	5
Approvals:	UL/CSA
Cord Length:	10 ft
Dimensions:	7.8"H x 7.7"L x 4.3"W
Discharge:	1" FNPT
Flow at 10 FT Head:	16.5 GPM
Flow at 15 FT Head:	14 GPM
Flow at 5 FT Head:	18 GPM
Horse Power	1/6
Max Pressure (PSI):	11.4
Shutoff Head (ft.):	26.3'
Type:	Automatic
Voltage	115v
Wattage	380
Weight (lbs):	9 lbs
