SX Simplex Control Panel, 120/208/240V, 1-Phase, NEMA 4X, 15-20A w/ Capacitors & Relay

SX Simplex Control Panel, 120/208/240V, 1-Phase, NEMA 4X, 15-20A w/ Capacitors & Relay

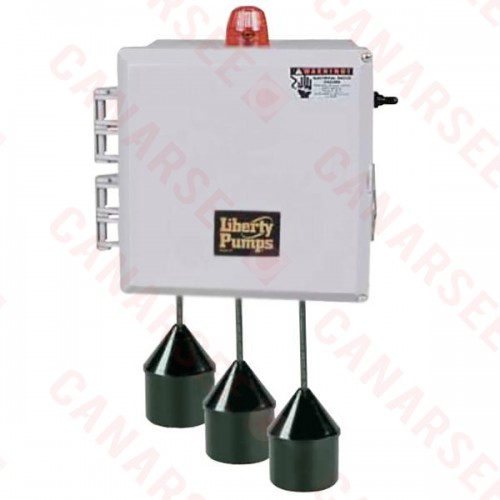

The Liberty Pump SXHC24=3 is a 120/208/240V, 1 Phase, 15-20 Amp, Simplex Pump Control panel with start/run capacitors in a NEMA 4X Enclosure. This Liberty control panel was designed to provide a reliable means of controlling simplex pump systems in residential or commercial installations. The Liberty SXHC24=3 is most commonly used in sump basins, effluent or sewage pump chambers and lift stations. The NEMA 4X is enclosed in an ultraviolet stabilized thermoplastic enclosure for both outdoor and indoor use. The Liberty SXHC24=3 consists of a control panel and 3-pilot-duty float switches. The floats control the pump stop, start and high level alarm functions.



Liberty Simplex Pump Control Panels boast magnetic motor contactor to control the pump by switching hot electrical lines and a sized to application circuit breaker to provide overload protection. The Liberty SXHC24=3 uses horn and red light indicator designs to activate when an alarm situation occurs. The Hand-Off-Automatic Switch offers either hand, off or automatic operations. In the hand mode, the pump will not turn on unless other safety features are employed. In the automatic mode, the pump will turn on from commands by the float switches. The Liberty SXHC24=3 Pump Control Panel features pump input power and pump connection terminal block, ground lug, auxiliary contacts.


Features:

  • Across-the-line magnetic contactor;
  • Test/Auto switch;
  • Terminal block for easy wiring;
  • Circuit breaker;
  • Green pump run indicator light (internal);
  • Red alarm indicator light/audible alarm;
  • Auxilary Contacts;
  • Alarm silence and test switches;
  • Tri 208/240/480V operation on three phase;
  • UL/C-UL listed;

Technical Specifications:

  • Full Load: 15 - 20 amps;
  • Cord Length: 35';
  • Voltage: 208/240/480V;
  • Hertz: 50/60 Hz;
  • Phase: 3;
  • Enclosure: NEMA 4X;
  • CABLE: flexible 18 gauge, 2 conductor;
  • FLOAT: High impact PVC (140 degrees F. maximum fluid temperature);
  • Weight: 19 lbs;
  • Height: 12";
  • Width: 10";
  • Length: 6";

Warranty:

3 years manufacturer's warranty
Product Specs
CABLE: flexible 18 gauge, 2 conductor
Cord Length: 35'
Enclosure: NEMA 4X
Full Load: 15 - 20 amps
Height 12"
Hertz: 50/60 Hz
Length 6"
Phase: 3
Voltage 208/240/480V
Weight: 19 lbs
Width 10"
