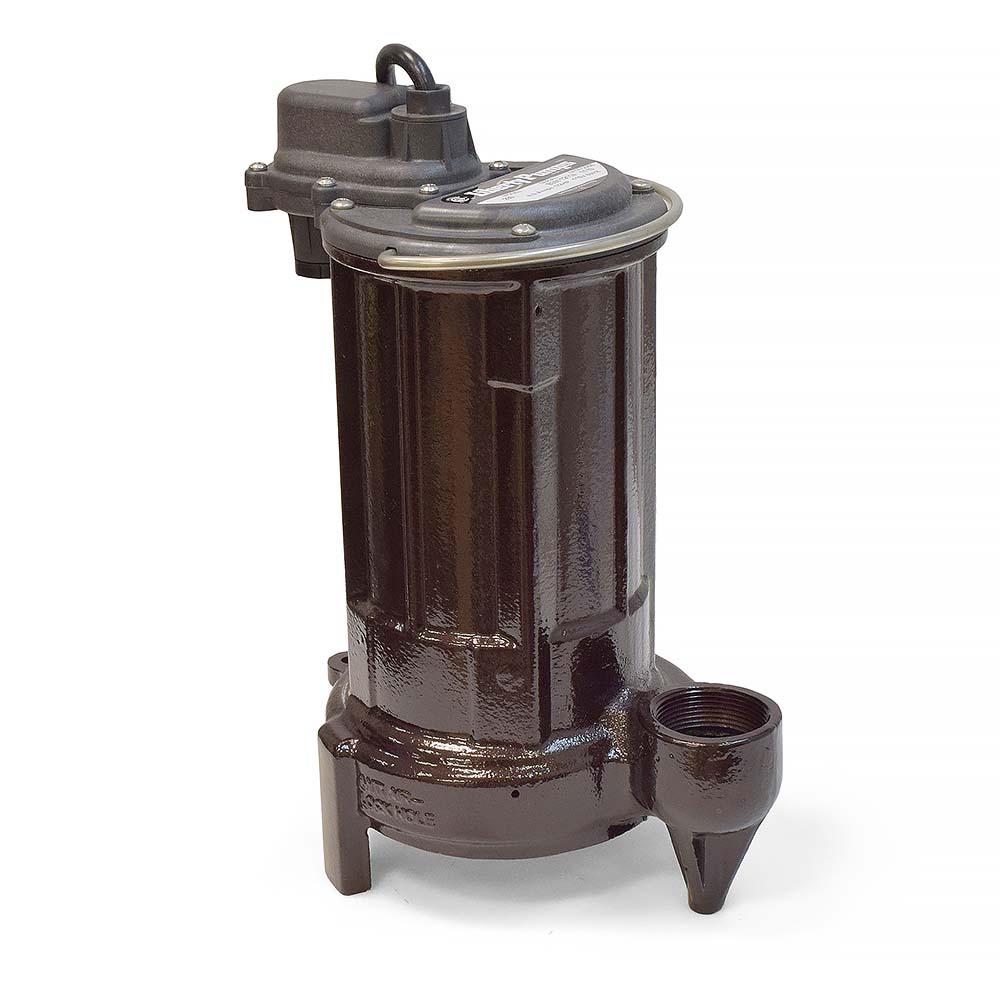

Manual Sump/Effluent Pump, 1/2HP, 35' cord, 115V
Click Image for Gallery
The 280-3 from Liberty Pumps is a Manual Sump/Effluent Pump, 1/2HP, 35' cord, 115V. It produces a max flow of 20 GPM at 30' and has a shut-off head of 37'. The Liberty 280-3 sump/effluent pump is ideal for pumping of drainage, effluent and waste water, and other non-corrosive/non-explosive liquids.
This effluent sump pump operates at 115V, 8.5 Amp and 60 Hz with a max fluid temperature of 140F. The Liberty 280-3 sump/effluent pump has a 1-1/2" discharge and can handle solids up 3/4". This sump/effluent pump covers a wide range of low-head to mid-head pump applications.
Features:
- Vortex style impeller permitting passage of solids up to 3/4";
- Cast bronze or cast iron pump housing with protective epoxy coating for corrosion resistance;
- Oil-filled motor housing for lifetime lubrication and rapid heat dissipation;
- 1/2 HP shaded pole motor with thermal overload protection;
- Stainless steel fasteners;
- Mechanical seal (stainless steel spring, nitrile parts, carbon and ceramic faces) for protection against pump failure;
- Upper and lower sintered sleeve bearings for extended motor life;
- Manual operation;
Technical Specifications:
- Discharge Size: 1 1/2" FNPT;
- Solids Handling Capability: 3/4" dia.;
- Listing: UL/CSA;
- HP: 1/2;
- Volts: 115;
- Phase: 1;
- Hertz: 60;
- Amps: 8.5;
- Flow @ 5': 62 GPM;
- Flow @ 10': 56 GPM;
- Flow @ 20': 42 GPM;
- Thermal overload temp: 248F;
- Minimum Sump Diameter: 14";
- Shut-off Head: 37';
- Cord Length: 35';
- Height: 13"
- Weight: 29 lbs;
| Product Specs | |
| Cord Length: | 35 ft |
| Flow at 5 FT Head: | 62.5 GPM |
| Horse Power: | 1/2 |
| Shutoff Head (ft.): | 37 |
| Type1 | Manual |
| Voltage | 115v |
- Views: 10379
-
- Model: 280-3
- MPN: 280-3
- Availability: 5 - 7 Days
- $ 337.50
