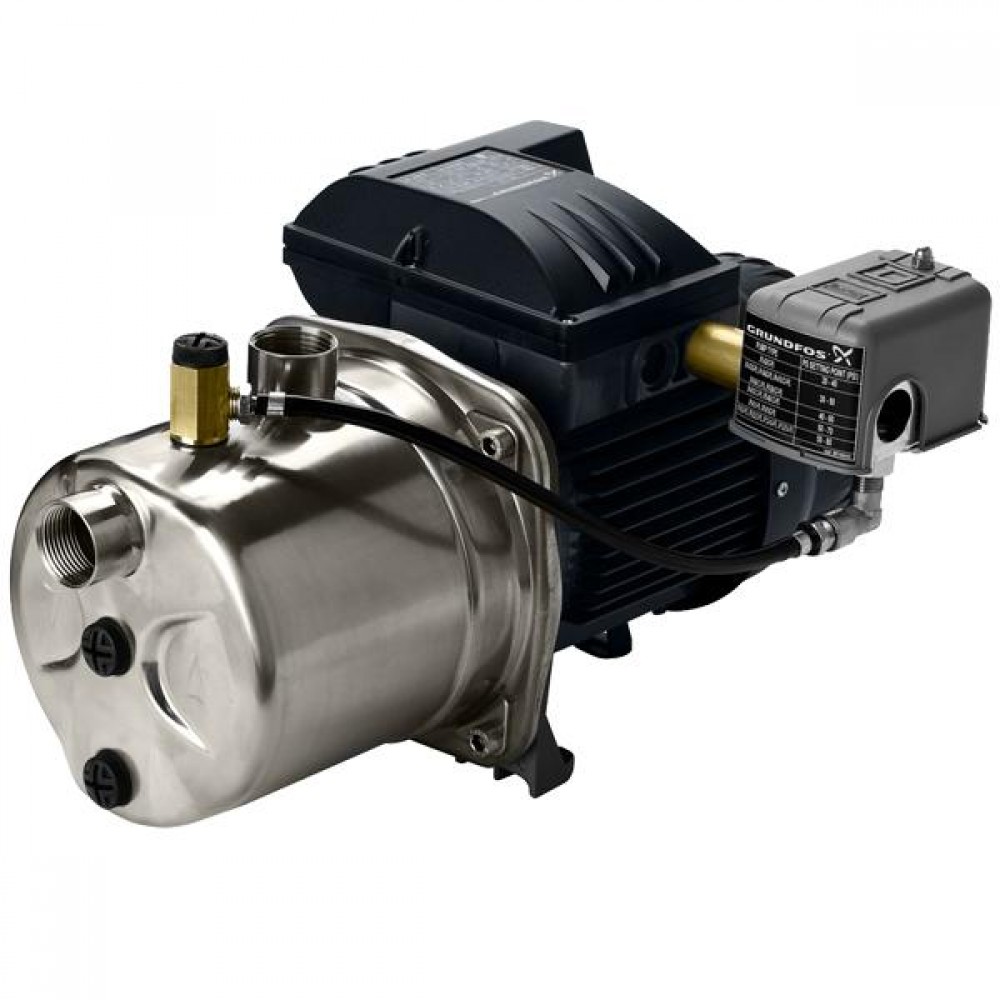

Shallow Well Jet Pump, 1HP, 115/230V, Stainless Steel

Shallow Well Jet Pump, 1HP, 115/230V, Stainless Steel
Views: 3347 Product Code: 97855088

MPN: 97855088

Weight:33.00 lb

Usually ships: Upon availability
Qty: Add to Cart


Have any questions?
Contact us at 1-800-246-9552

The 97855088 from Grundfos is a Shallow Well Jet Pump, 1HP, 115/230V, Stainless Steel.


  • Corrosion-resistant stainless steel
  • End suction, top discharge arrangement
  • Technopolymer impeller
  • Built-in ejector complete with clean-out port to clear blockages from nozzle
  • Ceramic-carbon bellows mechanical seal ensures trouble-free operation
  • High quality pressure switch.

Technical Specifications:

  • Max. flow, GPM: 20;
  • Max. pump head: 200ft;
  • Max. working pressure: 116 PSI;
  • Motor power: 1HP;
  • Fluid temp range: 32 - 95F;
  • Max. lift;: 25ft;
  • Max. ambient temp: 104F;
  • Factory pressure switch setting: 40/60 PSI;
  • Storage temp: 14 - 104F;
  • Relative humidity: 95%;
  • Max. starts per hour: 20;
Product Specs
Application: Shallow Well
Fluid Temperature Range: 32°F - 95°F
Hertz: 60
Horse Power: 1
Material: Stainless Steel
Max Flow (GPM): 20
Max Pressure (PSI): 116
Phase: 1
Relative Humidity: 95%
Shutoff Head (ft.): 200'
Type: Jet Pump
Voltage: 115/230v
