Shallow Well Jet Pump, 1HP, 115/230V, Cast Iron

Shallow Well Jet Pump, 1HP, 115/230V, Cast Iron

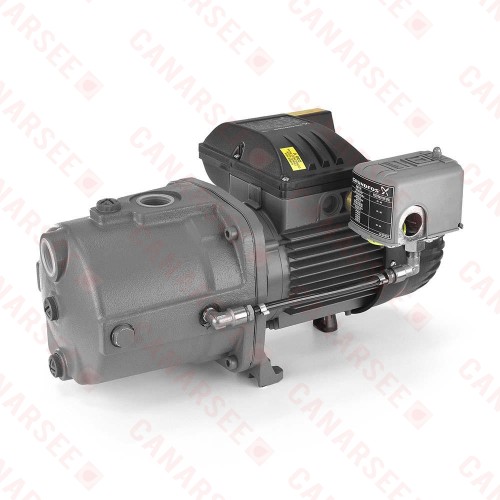

The 97855085 from Grundfos is a Shallow Well Jet Pump, 1HP, 115/230V, Cast Iron.


Features:

  • Rugged cast iron construction
  • End suction, top discharge arrangement
  • Technopolymer impeller
  • Built-in ejector complete with clean-out port to clear blockages from nozzle
  • Convenient priming plug for ease of priming and air elimination
  • Ceramic-carbon bellows mechanical seal ensures trouble-free operation


Technical Specifications:

  • Max. flow, GPM: 20;
  • Max. pump head: 200ft;
  • Max. working pressure: 116 PSI;
  • Motor power: 1HP;
  • Fluid temp range: 32 - 95F;
  • Max. lift;: 25ft;
  • Max. ambient temp: 104F;
  • Factory pressure switch setting: 30/50 PSI;
  • Storage temp: 14 - 104F;
  • Relative humidity: 95%;
  • Max. starts per hour: 20;
Product Specs
Application Shallow Well
Fluid Temperature Range: 32°F - 95°F
Hertz: 60
Horse Power: 1
Material1 Cast Iron
Max Flow (GPM): 20
Max Pressure (PSI): 116
Phase: 1
Relative Humidity: 95%
Shutoff Head (ft.): 200'
Type1 Jet Pump
Voltage 115/230v
