Deep Well Jet Pump, 3/4HP, 115/230V, Cast Iron
Click Image for Gallery

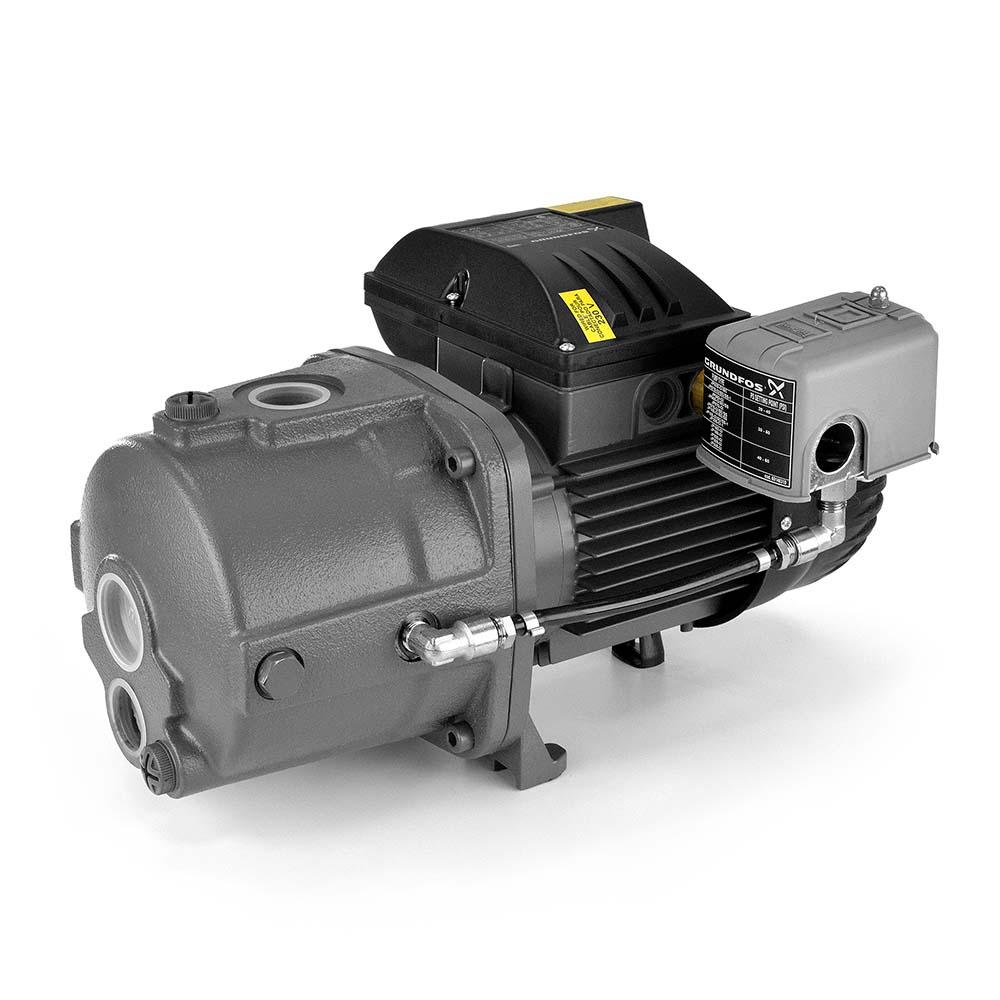

The 97855080 from Grundfos is a Deep Well Jet Pump, 3/4HP, 115/230V, Cast Iron.
Features:
- Rugged cast iron construction
- End suction, top discharge arrangement
- Detachable ejector assembly for deep well applications
- Technopolymer impeller
- Convenient priming plug for ease of priming and air elimination
- Ceramic-carbon bellows mechanical seal ensures trouble-free operation
- High quality pressure switch
- Separate deep well port for connection to Deep Well Ejector Kit
Technical Specifications:
- Max. flow, GPM: 18;
- Max. pump head: 170ft;
- Max. working pressure: 116 PSI;
- Motor power: 3/4HP;
- Fluid temp range: 32 - 95F;
- Max. lift;: 70ft;
- Max. ambient temp: 104F;
- Factory pressure switch setting: 30/50 PSI;
- Storage temp: 14 - 104F;
- Relative humidity: 95%;
- Max. starts per hour: 20;
| Product Specs | |
| Application | Deep Well |
| Fluid Temperature Range: | 32°F - 95°F |
| Hertz: | 60 |
| Horse Power | 3/4 |
| Material1 | Cast Iron |
| Max Flow (GPM): | 18 |
| Max Pressure (PSI): | 116 |
| Phase: | 1 |
| Relative Humidity: | 95% |
| Shutoff Head (ft.): | 170' |
| Type: | Jet Pump |
| Voltage | 115/230v |
- Views: 11809
-
- Model: 97855080
- MPN: 97855080
- Availability: Discontinued
- Usually ships: 1
- $ 415.95
