Automatic Effluent Pump, 6/10HP, 10' cord, 208/240V

Click Image for Gallery

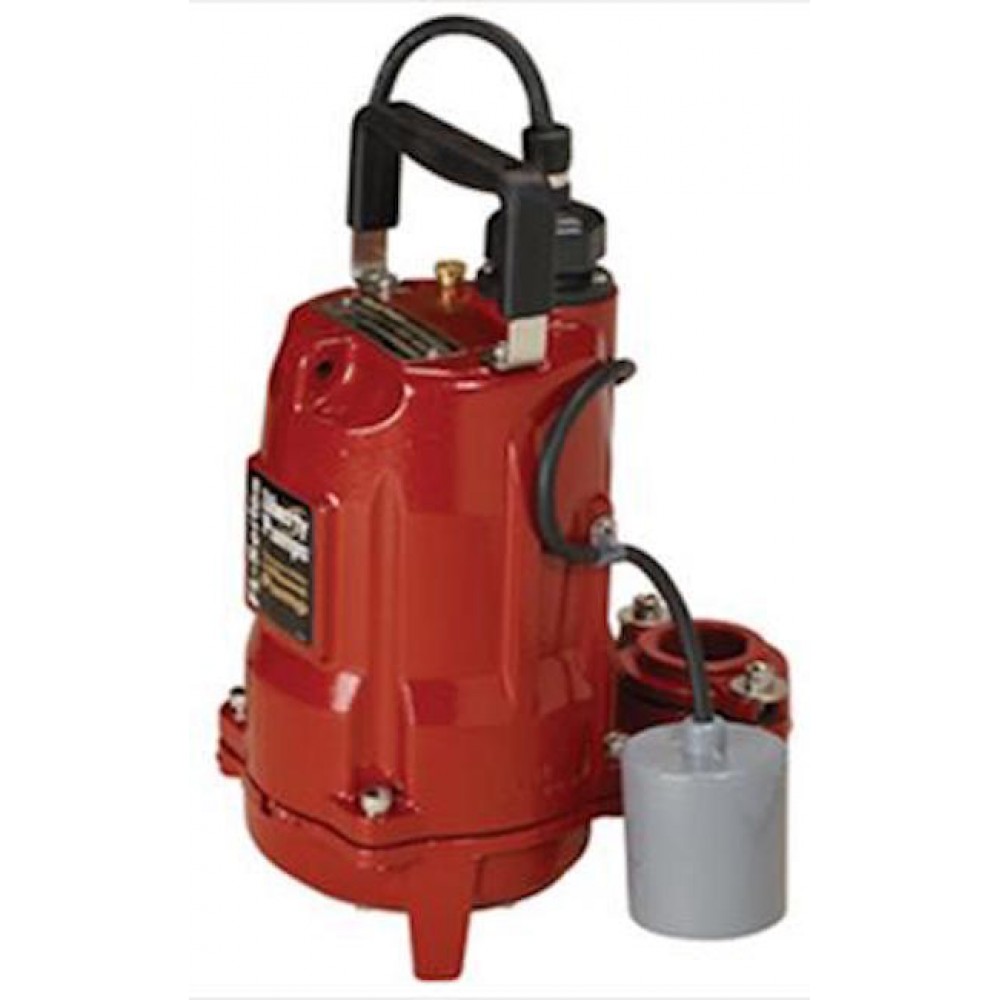

The FL62A from Liberty Pumps is an Automatic Effluent Pump w/ Wide Angle Float Switch, 6/10HP, 10' cord, 208/240V. It's equipped with an adjustable, mercury-free switch that has a series (piggy-back) plug for manual bypass Operation. The switch has a turn-on level of 12" and turn-off level of 5". The Liberty Pump FL62A automatic submersible sump/effluent pump is ideal for high-head applications and has a shut-off head of 63'.

Semi-open impellers, on the Liberty FL62A, permit the passage of 1/2" solids without clogging. This effluent sump pump has a discharge of 1-1/2"FNPT. These effluent sump pumps are designed for STEP systems, liquid waste transfer and higher head de-watering applications.

Features:

Semi-open impeller permits passageof solids without clogging;
Cast iron construction with all stainless and brass fasteners;
416 stainless steel rotor shaft;
Oil-filled, hermetically sealed motors with thermal overload protection;
Permanently lubricated upper and lower ball bearings;
Unitized, carbon and ceramic shaft seal;
Single float, mercury-free level control with series plug for manual bypass Operation - standard on automatic models;
Adjustable pumping range;
1-1/2" FNPT discharge;
Quick-disconnect 10' standard power cord allows replacement of cord in seconds without breaking seals to motor;

Technical Specifications:
