Automatic Effluent Pump w/ Wide Angle Float Switch, 1/2HP, 10' cord, 115V

Automatic Effluent Pump w/ Wide Angle Float Switch, 1/2HP, 10' cord, 115V

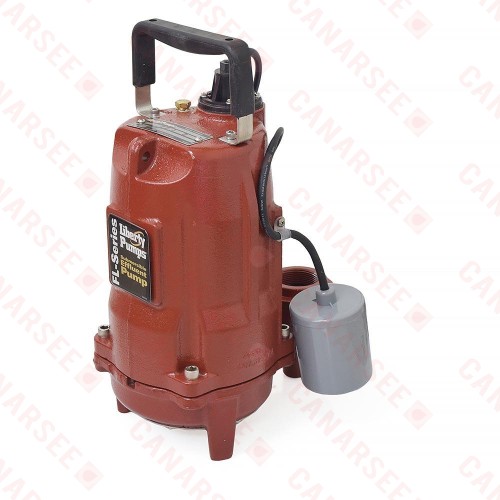

The FL51A from Liberty Pumps is an Automatic Effluent Pump w/ Wide Angle Float Switch, 1/2HP, 10' cord, 115V. This sump/effluent pump is equipped with an adjustable, mercury-free switch that has a series (piggy-back) plug for manual bypass Operation. The switch has a turn-on level of 12" and turn-off level of 5". Semi-open impellers, on the Liberty FL51A, permit the passage of 1/2" solids without clogging. This effluent sump pump has a discharge of 1-1/2"FNPT.

The Liberty Pump FL51A automatic submersible sump/effluent pump is ideal for mid-range applications and has a shut-off head of 48'. These effluent sump pumps are designed for STEP systems, liquid waste transfer and higher head de-watering applications.


Features:

  • Semi-open impeller permits passageof solids without clogging;
  • Cast iron construction with all stainless and brass fasteners;
  • 416 stainless steel rotor shaft;
  • Oil-filled, hermetically sealed motors with thermal overload protection;
  • Permanently lubricated upper and lower ball bearings;
  • Unitized, carbon and ceramic shaft seal;
  • Single float, mercury-free level control with series plug for manual bypass Operation - standard on automatic models;
  • Adjustable pumping range;
  • 1-1/2" FNPT discharge;
  • Quick-disconnect 10' standard power cord allows replacement of cord in seconds without breaking seals to motor;


Technical Specifications:

  • Horsepower: 1/2 HP;
  • Cord length: 10';
  • Discharge: 1-1/2" FNPT;
  • Solids Handling: up to 1/2";
  • Shut-off Head: 48';
  • Voltage: 115V;
  • Amps: 12;
  • Hertz: 60 Hz;
  • Phase: 1;
  • Maximum fluid temperature: 140°F;
  • Height: 13.75";
  • Width: 10.25";
  • Weight: 57 lbs.;
  • Minimum pit/basin diameter: 14" in Sump and 18" in Effluent applications;
  • Minimum pit/basin depth: 18" in Sump and 24" in Effluent applications;


Warranty:

  • 3 years manufacturer's warranty
Product Specs
Cord Length: 10 ft
Horse Power: 1/2
Shutoff Head (ft.): 48
Type1 Automatic
Voltage 115v

Write a review

Please login or register to review
  • Views: 6039
  • Automatic Effluent Pump w/ Wide Angle Float Switch, 1/2HP, 10' cord, 115V QR Code
    QR
  • Model: FL51A
  • MPN: FL51A
  • Availability: 5 - 7 Days
  • $ 806.25
