Manual Sump/Effluent Pump, 10' cord, 1/3HP, 208/230V

Manual Sump/Effluent Pump, 10' cord, 1/3HP, 208/230V

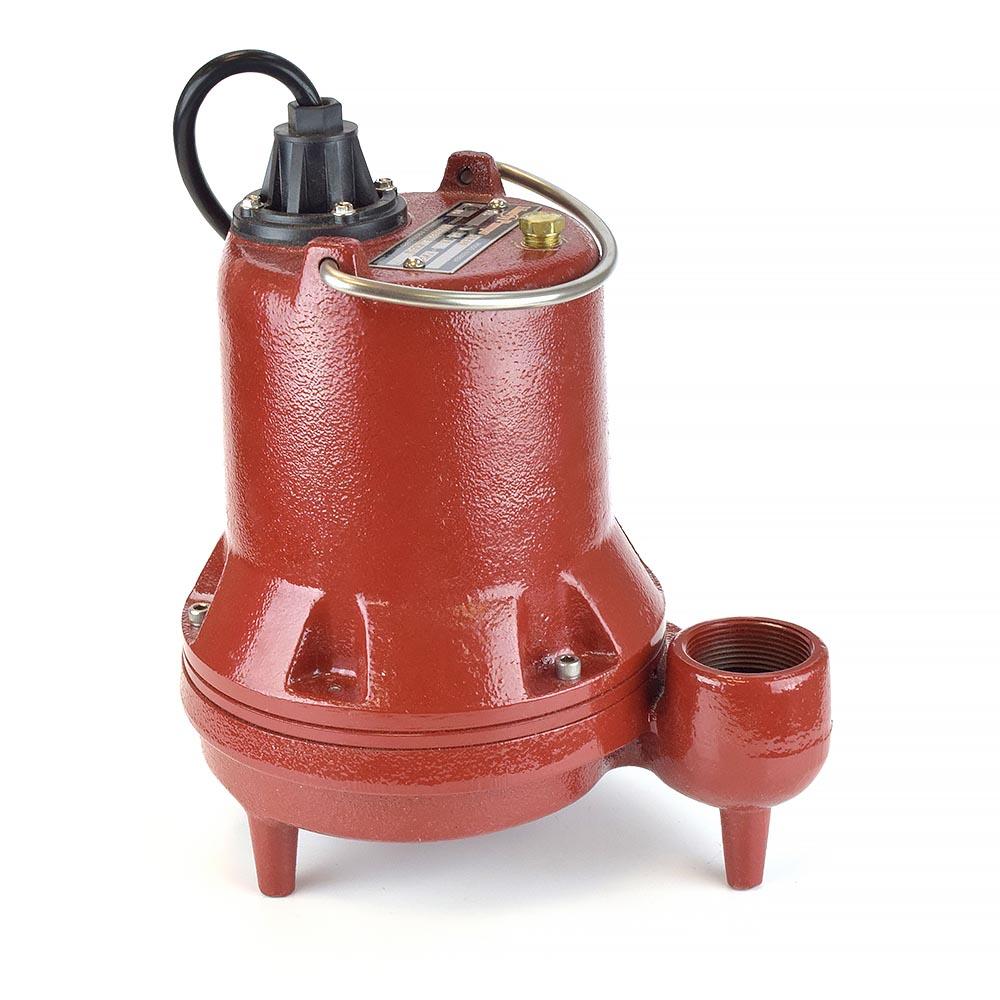

The FL32M from Liberty Pumps is a Manual Effluent Pump, 1/3HP, 10' cord, 208/230V. It has a discharge of 1-1/2" NPT. This sump/effluent pump can handle liquids up 140F and has a 19' shut off head.

The minimum pit diameter on this sump/effluent pump is 14" in sump conditions and 18" in effluent conditions. The Liberty Pump FL32M features vortex style impeller made of high temperature engineering polymer, which allows for 3/4" solids handling. This submersible sump/effluent pump is intended to be run using an approved liquid level control or approved motor control. Regardless of the control type, be sure that when the Liberty FL32M effluent sump pump shuts off, at least 3-1/2" of fluid is left in the basin so the impeller remains submerged. The Liberty FL32M was specifically designed for STEP Systems, LPP Systems, Mound Systems, Liquid Waste Transfer and Commercial Sump Applications. This pump should not be run dry.


Features:

  • Vortex impeller, made of high temperature engineering polymer, permits passage of solids without clogging;
  • 416 stainless steel rotor shaft;
  • Oil-filled, thermally protected motor;
  • Unitized shaft seal;
  • 1-1/2" FNPT discharge;
  • Quick-disconnect 10' standard power;


Technical Specifications:

  • Horsepower: 1/3 HP;
  • Cord length: 10';
  • Discharge: 1-1/2" FNPT;
  • Solids Handling: up to 3/4";
  • Shut-off Head: 19';
  • Voltage: 208-230V;
  • Amps: 6.6;
  • Hertz: 60 Hz;
  • Phase: 1;
  • Maximum fluid temperature: 140°F;
  • Height: 9.6";
  • Width: 9.8";
  • Weight: 32 lbs.;
  • Minimum pit/basin diameter: 14" in Sump and 18" in Effluent applications;
  • Minimum pit/basin depth: 18" in Sump and 24" in Effluent applications;


Warranty:

  • 3 years manufacturer's warranty
Product Specs
Cord Length: 10 ft
Flow at 5 FT Head: 53 GPM
Horse Power: 1/3
Shutoff Head (ft.): 19'
Type1 Manual
Voltage 208v
