Automatic Effluent Pump w/ Wide Angle Float Switch, 2HP, 25' cord, 208/230V

Automatic Effluent Pump w/ Wide Angle Float Switch, 2HP, 25' cord, 208/230V
Views: 2788 Product Code: FL202A-2
UPC: 671812114805

MPN: FL202A-2

Weight:83.00 lb

Usually ships: 7-10 business days
Qty: Add to Cart


Have any questions?
Contact us at 1-800-246-9552

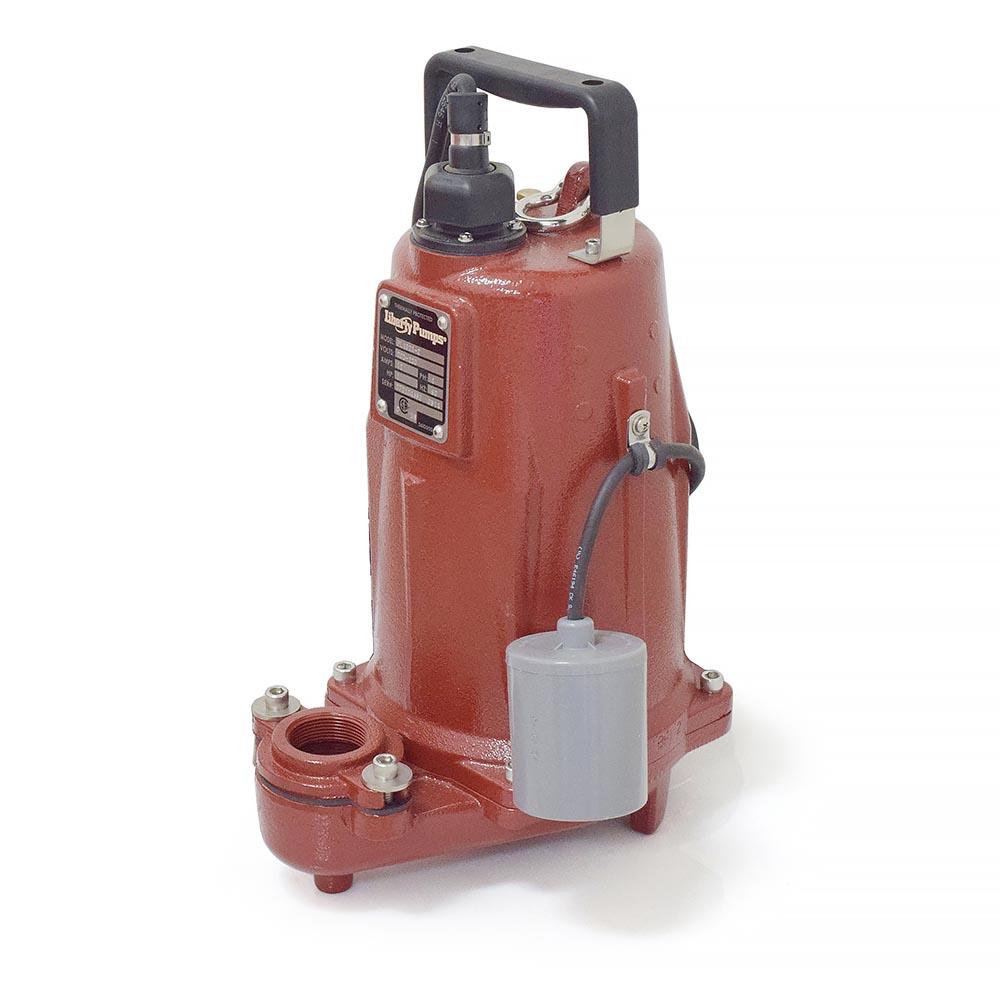

The FL202A-2 from Liberty Pumps is an Automatic Effluent Pump w/ Wide Angle Float Switch, 2HP, 25' cord, 208/230V. It features a wide-angle mechanical float switch, sealed in PVC housing, which has a series (piggyback) plug for manual bypass operation. The switch on this submersible effluent sump pump has a turn-on level of 15" and turn-off level of 8". The Liberty FL202A submersible sump/effluent pump is equipped with a dual sized discharge of 1-1/2" FNPT and 2" FNPT for connection to either size pipe. This effluent sump pump can also handle solids up to 3/4" and has a shut-off head of 130'. These Liberty effluent pumps are designed for STEP systems, mound systems, liquid waste transfer and higher head de-watering applications. The Liberty FL202A is built of heavy cast iron with an epoxy powder coat finish and stainless steel fasteners.


  • 3/4" Solids-handling;
  • Heavy cast iron construction;
  • 2 vane semi-open cast iron impeller;
  • 416 stainless steel rotor shaft;
  • Dual shaft seals. FL200-Series feature upper unitized silicon carbide, lower Viton double lip;
  • Single float, mercury free level control;
  • Additional mounting clamp provided for optional switch mounting to pipe;
  • Fully adjustable pumping range;
  • 2" FNPT threaded discharge with 1-1/2" FNPT flange provided;
  • Quick-disconnect power cord - 25' length standard;

Technical Specifications:

  • Horsepower: 2HP;
  • Cord length: 25';
  • Discharge: 2" FNPT with 1-1/2" FNPT cast iron flange (included);
  • Solids Handling: up to 3/4";
  • Shut-off Head: 130';
  • Voltage: 208-230V;
  • RPM: 3450;
  • Amps: 15;
  • Hertz: 60 Hz;
  • Phase: 1;
  • Impeller: 2 vane, semi-open design;
  • Maximum fluid temperature: 140°F;
  • Weight: 82 lbs.;
  • Minimum pit/basin diameter: 14" in Sump and 18" in Effluent applications;
  • Minimum pit/basin depth: 18" in Sump and 24" in Effluent applications;


  • 3 years manufacturer's warranty
Product Specs
Cord Length:25'
Flow at 10 FT Head:102 GPM
Flow at 5 FT Head:102 GPM
Horse Power:2
Shutoff Head (ft.):130'
